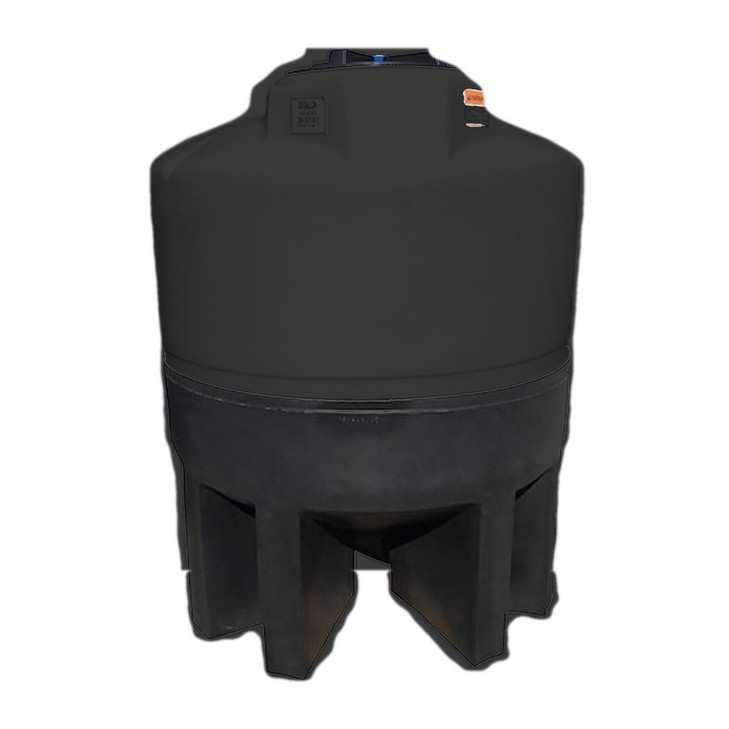

Norwesco 300 Gallon 30 Degree Cone Bottom Tank with Poly Stand in Black

Why a cone, and why 30 degrees

A flat bottom tank always holds a little back; a cone sends everything to the outlet. The 30 degree cone is the middle of Norwesco's range: steep enough to drain thin liquids and most suspensions cleanly without the height penalty of a steeper cone. Our buyer's guide to the 300 gallon 30 degree cone bottom tank with poly stand walks through the decision in detail. The stand is the part that makes it usable: it holds the cone off the floor and leaves room under the outlet for a valve and a hose or a pump inlet. Measure what has to fit under there before you order. The footprint is 49 inches across and the floor under it needs to be flat, level and continuous.

What goes in it

Water, fertilizer solutions and the treatment and process chemicals that polyethylene handles. Check the liquid in our chemical compatibility guide before the first fill; the entries cone tank buyers ask about most are sodium hypochlorite, sulfuric acid, hydrochloric acid, ferric chloride and urea solution. Liquids heavier than 1.5 times water need a heavy duty tank, and nothing hotter than 120 F should go in. The tank sizing calculator and tank sizing guide help with batch volume.

Openings and fittings

1. Outlet. 2 inch, at the bottom of the cone. Norwesco's listing gives the size and not the fitting type, so if the connection matters, call before you order and we will confirm it. Fit the valve before the first fill, and support the valve and the first length of pipe so the cone carries liquid, not hardware.
2. Lid. A 16 inch lid on top: room to fill, to drop a mixer shaft or a suction line in, and to get a hand and a brush inside.
3. Drawing. Norwesco's drawing, under Technical Drawing on this page, shows the cone, the stand and the outlet position.

The same tank other ways

Same tank and stand in white: the 300 gallon 30 degree cone bottom tank with poly stand in white; the colour swatches above the price switch between them. A close alternative: the 310 gallon 30 degree cone bottom tank with poly stand.

Shipping and receiving

The tank and stand ship LTL under NMFC 156600 from the nearest of Norwesco's plants in Griffin, Georgia; Hanford, California; Shawnee, Oklahoma; Sheldon, Iowa; St. Bonifacius, Minnesota; Tooele, Utah; or Washington Court House, Ohio. Shipping weight is 199 lb at 49 by 49 by 61 inches. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. Set the stand first, check it with a level across both diagonals, then seat the tank and turn it so the outlet points where the pipe runs. At the tailgate, check 43730 against the bill of lading and look at the cone tip and the stand for transit damage; fill with water the first time.

Questions before you order? Call 866-418-1777.
