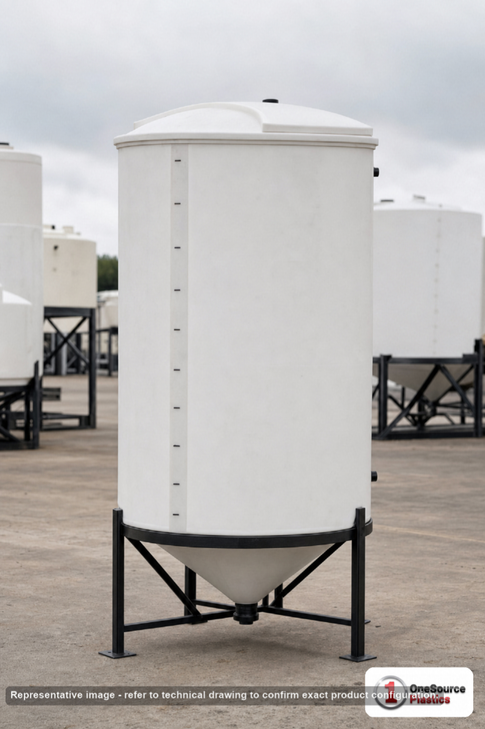

A 300 gallon 30 degree cone bottom tank with its poly stand, in white
The Norwesco 300 gallon 30 degree cone bottom tank with poly stand, part number 62343, is a white polyethylene tank 49 inches in diameter that stands 61 inches tall on the stand it comes with, weighing 159 lb. The stand is the part that usually has to be matched by cone angle and diameter and ordered on its own; here it arrives with the tank, so what comes off the truck is ready to set down, level and plumb. The 30 degree cone drains from a point without the height a steeper cone costs. On top is a 16 inch threaded vented manway; at the point of the cone is a 2 inch polypropylene female NPT bulkhead fitting. The tank is rated for liquids up to 1.5 specific gravity, which covers water, liquid fertilizer and the common farm and treatment chemicals polyethylene handles. Water weighs 8.34 lb per gallon, so plan the floor for a full tank. The resin is FDA compliant per Norwesco, the service limit is 120 F, and Norwesco backs it with a 3 year warranty. White lets you see the level through the wall in good light; the same tank comes in black for contents that should be kept out of the light.
Ready for the pad? Get freight to your ZIP and add it to your cart above, request a written quote, or call 866-418-1777 with the valve and the space you are putting it in.
What a 300 gallon cone on a stand is for
Three hundred gallons is a day's work for a sprayer or a dosing system: a fertilizer blend mixed and drawn off through the day, a treatment chemical made up in bulk and metered out, a wash or process solution held where it is used. The cone sends the last of the batch and any sediment to the outlet, so the tank changes duty without being scraped out. A 30 degree cone is the middle choice: it drains cleaner than a 15 degree storage cone and stays shorter than a 45 degree mixing cone, and at 61 inches overall the manway is reachable from a short step. The 300 gallon 30 degree cone bottom tank with poly stand buyer's guide covers how this tank is used and set up.
What goes in it
Water, liquid fertilizer and the common farm and treatment chemicals are the normal loads. Check anything else in our chemical compatibility guide before the first fill; urea solution, calcium chloride, aluminum sulfate, sodium carbonate and acetic acid are the entries cone tank buyers open most. Liquids heavier than 1.5 times water need a heavier rated tank. Keep the contents under 120 F. Size the batch with the tank sizing calculator and the tank sizing guide.
Openings, fittings and what to check before you buy
- Outlet. A 2 inch polypropylene female NPT bulkhead fitting at the point of the cone. A ball valve threads straight in. Fit it before the first fill and support the valve and the first length of pipe so the fitting carries liquid, not hardware.
- Manway. A 16 inch threaded vented manway on top, for bags, a mixer shaft and a cleaning brush.
- Footprint and floor. Forty-nine inches across. The stand needs a flat, level, continuous floor under all of it, with no drain, joint or slope beneath. A full tank is a concentrated load of well over a ton with water in it; the floor rating is your installer's call, not this page's.
- Clearance. Measure the doorway the assembly goes through and the space under the outlet for the valve, hose or container you will draw into.
- The drawing. Norwesco's drawing for this tank is linked on this page under Technical Drawing, with the outlet position and the cone geometry.
Colour, the tank on its own, and sizes nearby
The same tank and stand in black: the 300 gallon 30 degree cone bottom tank with poly stand in black; the colour swatches above the price switch between them. If you already have a stand, Norwesco sells the tank alone with its fittings or without fittings. One size down with its stand: the 175 gallon 30 degree cone bottom tank, tank only is the smaller tank on its own, and the 310 gallon 30 degree cone bottom tank with poly stand is the alternative at almost the same volume.
Shipping and receiving
Tank and stand ship LTL freight together, 49 by 49 by 61 inches and 199 lb packed, from the nearest of Norwesco's plants. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the tailgate, check the part number against 62343, look over the cone, the fitting and the stand before you sign, set the stand where it will live, level it across both diagonals, seat the tank and fill it with water the first time before it carries anything else.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Hanford, CA; Griffin, GA; Sheldon, IA; St. Bonifacius, MN; Lancaster, OH; Shawnee, OK; Tooele, UT. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 62343.
See this tank
Product video. Watch the 300 Gallon 30 Degree Cone Bottom Tank with Poly Stand video (70 seconds) with dimensions, fittings and shipping notes.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
3 Year Warranty
