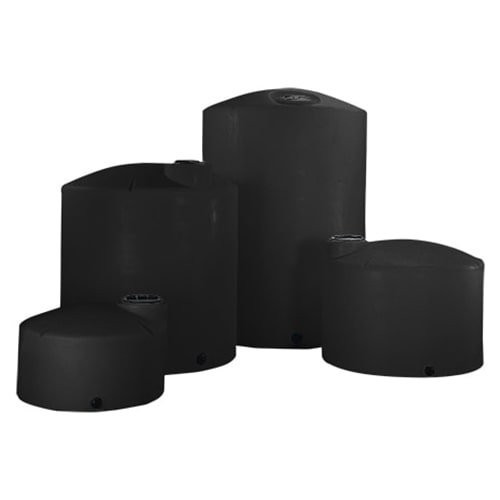

An 8400 gallon black heavy duty vertical tank for fertilizer and heavy chemicals
The Norwesco 8400 gallon black heavy duty vertical storage tank, part number 44397B, is a rotomolded polyethylene tank 120 inches in diameter and 187 inches tall, weighing 2,056 lb empty. The heavy duty wall is rated for liquids up to 1.9 specific gravity, 1.9 times the weight of water, which is what liquid fertilizers and most concentrated chemicals that polyethylene handles need; 8400 gallons of water weighs 70,056 lb and a 1.9 liquid about 133,106 lb. The outlet is a 3 inch polypropylene female NPT bulkhead fitting with a 2 inch reducer and a siphon tube, and the top opening is a 16 inch threaded vented manway. The resin is FDA compliant per Norwesco, the service limit is 120 F, and Norwesco backs the tank with a 3 year warranty. Black blocks light, which protects light sensitive products and keeps algae out of water.
Storing fertilizer or a chemical? Call 866-418-1777 with the product and its specific gravity, or check freight to your ZIP and add it to your cart above.
Where a heavy duty 8400 goes
Ag retailers, fertilizer blenders and treatment plants buy the 1.9 rated wall because the liquids they store are heavier than water, and at this size the difference is tens of thousands of pounds on one pad. The outlet comes with a siphon tube; the drawing linked on this page shows exactly how the fitting and the tube are arranged, and we will walk you through it before you plan the pump or the gravity line. Black is the colour for a tank that sits outdoors: it keeps light out of the contents. The pad carries the full load on a 120 inch circle; our concrete pad sizing for above ground polyethylene tanks covers the slab. For a fire reserve, read the fire water reservoir design guide for rural and remote sites; for rainwater, the first flush diverter sizing for rainwater harvesting; for reuse systems, the industrial water reuse tank topology article. Confirm the volume with the tank sizing calculator and the tank sizing guide.
Openings and fittings
- Outlet. A 3 inch polypropylene female NPT bulkhead fitting with a 2 inch reducer and a siphon tube. Pull the reducer for a 3 inch line or leave it for 2 inch. Support the pipe and the pump on their own so the fitting carries liquid, not hardware.
- Manway. A 16 inch threaded vented manway on top: fill line, level sensor, and access for a hand and a brush. The vent must stay clear so the tank breathes as the pump draws.
- Chemical fit. Polyethylene suits most fertilizers and many chemicals, not all. Tell us what goes in and we check it against the material before the order ships.
- Clearance. 187 inches tall plus the manway lid and the lifting gear that sets the tank.
- Drawing. Norwesco's drawing for this mould, linked under Technical Drawing on this page, gives the fitting position and the overall dimensions; 44397B is the black version of it.
Other 8400 gallon tanks, and sizes nearby
Norwesco makes the 8400 gallon size in more than one mould. The other heavy duty 1.9 tank in black: the 8400 gallon black heavy duty tank, 42062B. Standard duty 1.5 in black: the 8400 gallon black tank, 44395B and the 8400 gallon black tank, 42060B. Either side in size: the 7800 gallon black heavy duty tank, 42883 and the 9000 gallon black vertical tank, 40786. Compare the drawings for the footprint and outlet style that fit your site.
Shipping and receiving
The tank ships LTL at freight class 300 from the nearer of Norwesco's Albertville, Alabama and Fairfield, Texas plants, 120 by 120 by 187 inches and 2,056 lb, on a flatbed. You need a crane or a telehandler at the site and a clear route to the pad. The freight cost estimator gives the lane cost to your ZIP. At the site, check the part number against 44397B on the bill of lading, inspect the wall and the fitting before signing, and make the first fill water so any problem shows with something harmless in the tank.
Ready to order? Add it to your cart at the top of this page, get LTL freight to your ZIP, or call 866-418-1777. The listed price is before freight.
Freight and documents
Ships from: Fairfield, TX; Albertville, AL. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 44397B.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
