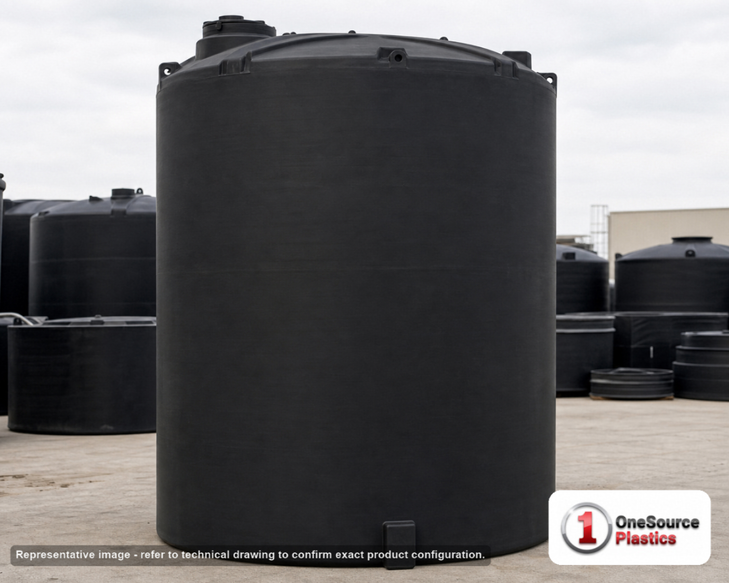

An 8400 gallon black vertical tank for bulk water or liquid storage
The Norwesco 8400 gallon black vertical storage tank, part number 42060B, is a rotomoulded polyethylene tank 119 inches in diameter and 188 inches tall, weighing 1806 lb empty. It is a big tank: almost ten feet across and over fifteen feet to the top of the manway. It comes with a 3 inch polypropylene female NPT bulkhead fitting fitted with a 2 inch reducer as the outlet, so you can plumb it in either size, and a 16 inch threaded vented manway on top. Norwesco rates it for liquids up to 1.5 specific gravity, which covers water, most liquid fertilizers and many common chemicals; 8400 gallons of water weighs 70056 lb. The resin is FDA compliant per Norwesco, Norwesco lists the tank as NSF 61, the service limit is 120 F, and Norwesco backs it with a 3 year warranty. Black keeps light out of stored water and slows algae.
Planning a tank this size? Call 866-418-1777 and we will go through the pad, the unload and the plumbing with you, or request a written quote for the job file.
Where 8400 gallons goes
This is a tank for a ranch or community water system, a fire reserve that has to satisfy an inspector, a large irrigation buffer, a rainwater system on a commercial roof, or a plant that receives liquid by the tanker load. Full, it weighs about thirty five tons, and all of that sits on a 119 inch circle, so the pad is an engineered slab, not a gravel bed; the pad sizing framework and where the structural boundary sits explains where a simple pad stops being enough. At 188 inches the manway needs a fixed ladder and, on most sites, a platform. For a fire reserve, our reservoir design article covers sizing and freeze protection; for roof water, the first flush diverter sizing guide; for several tanks holding liquid at different qualities, the reuse topology piece. Check the volume against your draw with the tank sizing calculator and the tank sizing guide.
Openings and fittings
- Outlet. A 3 inch polypropylene female NPT bulkhead fitting with a 2 inch reducer, factory installed low in the sidewall. On a tank this size keep the 3 inch run: take the reducer out, thread in a 3 inch valve, and support the valve and the first length of pipe on their own so the fitting carries liquid, not hardware. The reducer is there if the only pipe on site is 2 inch.
- Manway. A 16 inch threaded vented manway on top for the fill line, a float or level sensor and cleaning access. The vent must pass the air that moves with the liquid when a tanker pumps in or a big pump draws out; keep it clear.
- Liquid and temperature. At or below 1.5 specific gravity and at or below 120 F. Heavier liquids belong in the heavy duty versions below. Check anything other than water against polyethylene before the first fill.
- Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet height and the manway position for the plumbing and the ladder.
Sizes and versions nearby
Same tank in white, where you want to read the level through the wall: the 8400 gallon white vertical tank, 42060. For liquids heavier than water, the 1.9 specific gravity heavy duty builds are the 8400 gallon blue heavy duty tank, 42062 and the 8400 gallon black heavy duty tank, 42062B. Norwesco also builds 8400 gallons in a second mould, the 8400 gallon black vertical tank, 44395B and its heavy duty twin 44397B; compare the drawings if your site has a height or footprint limit. A step down is the 7800 gallon black heavy duty tank, 42883; a step up is the 9000 gallon black vertical tank, 40786. The colour swatches above the price switch between the versions of this tank.
Shipping and receiving
The tank ships LTL at freight class 300 from Norwesco's Hanford, California plant, 119 by 119 by 188 inches and 1806 lb. A load this size is routed, not just booked, so tell us the site before you order: the approach, the turning room, and whether there is a loader or a crane to set it. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the site, check the part number 42060B against the bill of lading, walk the full height of the wall and the bottom edge for transit damage before the driver leaves, set it on the pad, and fill it with water the first time before it carries anything else.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Hanford, CA. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 42060B.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
