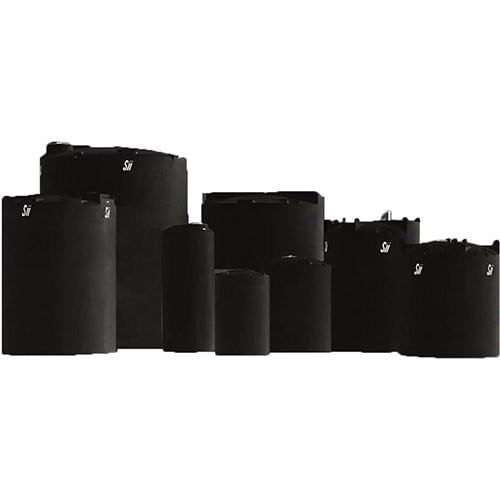

Snyder Industries 1000 Gallon ASTM XLPE Black Vertical Storage Tank

The lighter grade of the 1831000 shell

The 1831000 shell is one tank sold in several gradings: 60 inches across, 89 inches tall, 1,000 gallons, one 18 inch manway, and nothing else about the shape changes from part number to part number. This is the 1.5 grade at 260 pounds empty, with 12,510 pounds of maximum contents on its sheet. Two of its stablemates are listed at the same 260 pounds and one at 300, each with the rating its own sheet gives, so the decision inside the family is made on density and on nothing else. For water, for the treatment chemistry a small municipal system handles, and for the wash and blend chemistry a shop or a co-op keeps on hand, a 1.5 wall is the honest specification and a heavier one is margin nobody will ever load. Write the rating on the tank card and on the wall beside the liquid's name, because the tank that gets re-purposed for a denser product three years from now is the one that finds the limit. The siting follows the shape rather than the grade. A five foot circle is small enough to stand in a corner, along a wall, or between two machines, and 89 inches is still short enough to clear most block-building ceilings with room for a fill line and a vent run above the lid. Under it, 8,340 pounds of water and 12,510 at the rating bear on the whole 60 inch floor, because a rotationally molded tank carries on its floor and nothing else, so the slab is poured to the concrete pad sizing guide, level and in full contact, inside a berm sized to the tank where the liquid is regulated. Band the empty shell on the day it lands, then check the bands after the first storm and at the end of the first summer, because a black wall in the sun grows a little every day. Black passes no light to the liquid and takes the ultraviolet that ages a white shell, and it hides the level, so the gauge is a sender. Take 1,000 gallons to the tank sizing calculator against your feed rate and delivery interval, and take the reserve and thermal freeboard from the tank sizing guide.

The 1,000 gallon gradings, and the 850 and the 1,100

Inside the shell, four part numbers and one question, which is what the wall is rated to carry; this page states only its own answer and each of the others states its own. Outside the shell, the two neighbours in the table are the extremes of the shape trade at this volume. The 1810000C34 gives up a hundred and fifty gallons to get down to a 48 inch circle and stands 117 inches to do it, which is the tank for the narrowest corner and the tallest room. The 1710000C26 goes the other way, laying 1,100 gallons across an 86 inch base at 55 inches tall, low enough to look into from the ground. This part number sits between them, and it is the pick when neither the floor nor the ceiling is desperate and the liquid is no denser than the 1.5 wall is rated for.

Ready to choose a row? Add the 1000 gallon tank to your cart above with freight quoted to your ZIP, or 866-418-1777 will confirm it against the site first.

One opening, and the vent that has to do everything

• Vent: the 18 inch threaded, vented manway listed on this sheet is the only opening on the tank, which makes its vent path the only way air leaves during a delivery. It has to pass air out faster than the pump pushes liquid in, or the shell takes pressure it was never built to hold. Size it to the delivery pump, keep it clear of dust, spray and nesting between deliveries, and run it outdoors on anything that fumes.
• Fill: a dip tube to the floor. A fill dropped 89 inches down an empty shell foams the liquid, generates static in the products that carry it, and drums on the wall.
• Headspace: freeboard for thermal expansion at the 140 F / 60 C service limit, taken from the sizing guide rather than judged by how close the level is to the lid.
• Outlet: the outlet field reads "1 Manway / Lid" and gives no bottom fitting size, so the draw-off is specified at order against the liquid you name, with the fitting, gasket and bolting matched to it.
• Access: a platform or a fixed step with a rail for whoever opens a lid seven feet five inches up.
• Service limit: 140 F / 60 C. Warranty: 3 year.

Because this tank has one opening, everything shares it: the fill line, the vent, the level instrument and the man who looks inside. Plan that top before the tank is on the pad, or you will find the fill and the gauge fighting for the same rim later. Below, the first valve sits on its own support off the pad, a flexible connector absorbs thermal movement between the fitting and hard pipe, a transfer pump goes below the take-off for a gravity prime, and a low-level float stops it before it draws air. Keep the lid closed between deliveries, put the liquid's name on the wall, and light the band of wall above the liquid line whenever the manway is open. In a freezing climate the valve and the first pipe run get the protection; the shell can ice from the top down.

A thousand gallons of treatment chemical

A small municipal water system, a wastewater lift station with a dosing skid, a food plant sanitation room, a greenhouse fertiliser feed, a fleet wash rack: all of them buy about a thousand gallons at a time and all of them handle liquids a 1.5 wall is rated to hold. Where the tank is one stage in a reuse train rather than a standalone vessel, the industrial water reuse tank topology article places a tank of this size against the stages either side of it. Water is well inside the rating, so this tank will hold it without complaint, but a fire reserve is sized and freeze-protected to rules of its own, laid out in the fire-water reservoir design guide.

A five foot circle on a standard deck

The 1831000N46 is listed out of Chowchilla, California at freight class 300. A 60 inch base and 89 inches of height ride upright inside a standard trailer without anything special, which is the cheapest way a tank of this volume travels, and the freight cost estimator prices the lane to your ZIP with the listed price before freight. Set 260 pounds down with a strap around the body or forks underneath, never a strap through the manway, and have the bands and anchors ready when it lands. Fill it with water to the manway, hold it, and walk the base twice before the real liquid arrives. Keep one spare gasket for the draw-off fitting on the shelf from day one, because that is the part that decides to fail on a holiday weekend. Leave room to walk all the way around it; the side of the tank nobody can see is the side that leaks.
