Snyder Industries 12500 GALLON ASTM 1.35 SG IN BLACK

A 142 inch circle of pad, and what 100,080 pounds asks of it

A tank this size is bought twice: once as a vessel and once as a foundation, and the foundation is the half that goes wrong. The base circle is 142 inches across, a little under twelve feet, and the tank stands 198 inches tall above it. Full of water that is 100,080 pounds bearing on that circle, and 135,108 pounds at the 1.35 specific gravity the sheet rates this tank to. A pad has to be designed for that load on your soil, extend beyond the tank diameter on every side, be flat and be genuinely level, because a tall cylinder that is out of plumb never corrects itself and will load one arc of its base for as long as it stands. The concrete pad sizing guide for above-ground polyethylene tanks lays out the framework and marks the boundary where an ordinary slab stops being adequate. Two site details follow from the colour and the height. This tank is listed black, which is the pigmentation usually chosen where sunlight on the shell is a factor for what is inside it, and at sixteen and a half feet tall it is a wind sail as well as a vessel, so the anchoring and the site exposure belong in the same conversation as the concrete. Then size the volume honestly. Twelve thousand gallons is a delivery decision as much as a storage one, so run your draw, your refill cycle and your reserve through the tank sizing calculator and take the freeboard and the headroom discipline from the tank sizing guide before the pad is poured, because the pad is the part you cannot change afterwards.

Three vertical shells: 10,500, 12,000 and 12,500

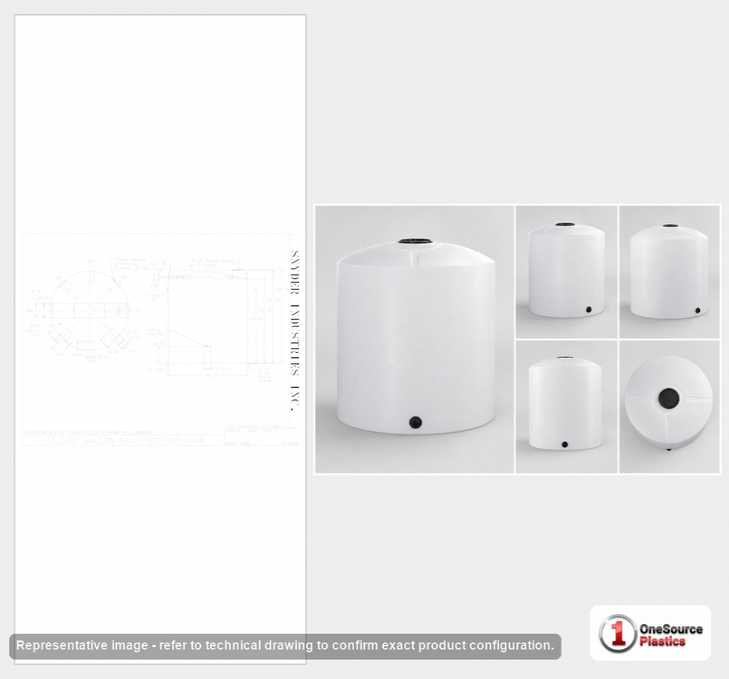

All three of these stand on the same 142 inch circle, so the pad you pour serves any of them and the choice is height, rating and colour. The sheet gives some figures here that are worth stating plainly rather than smoothing over. This 12,000 gallon tank is listed at 3,100 pounds empty while the smaller 10,500 gallon SII-5330000N30 is listed at 4,000 pounds, so the larger tank is the lighter one on paper; and SII-5350000N39 is listed in the same 142 by 198 inch envelope at the same 3,100 pounds but at 12,500 gallons. The sheet prints those numbers and offers no explanation for them, so this page prints them and offers none either. What it does not do is let you guess a rating from a size: this tank carries a specific gravity of 1.35 and SII-5330000N30 carries 1.9, and a rating is a property of the part you actually order, never of the family. The buying logic is straightforward once that is understood. Take SII-5330000N30 when the liquid needs the higher rating and the shorter 169 inch height suits the site. Take this one when the duty sits inside the 1.35 rating, the site can take 198 inches, and black is the shell you want. And where a listing beside it in the same envelope offers more gallons, ask us to confirm on the order which part number you are getting, because the two are not distinguishable from the outside.

Need two of them? Request a written quote for the pair with freight to your ZIP, or call 866-418-1777 and we will price the truck once.

An outlet the sheet lists as 3, and an 18 inch manway on top

• Outlet: the outlet field on this sheet reads 3, with no inch mark. That is printed here exactly as the sheet gives it and nothing is inferred from it: no thread, no style, no pipe size. We will confirm the fitting on your part number in writing before it ships, and the chemical you name when you order is what the fitting, gasket and bolting are matched to.
• Valve and first joint: whatever the fitting turns out to be, put a full-flow isolating valve at the tank and support it from the ground, never from the tank wall, and break the first joint with a flexible connector so line movement and pump pulsation are not fed into the shell.
• Top access: an 18 inch manway, 198 inches up. That is a designed access problem, so specify the ladder, the platform, the fall protection and the confined space procedure before the tank is ordered, not the first time somebody needs to look inside.
• Venting: a large tank being filled from a tanker or drawn down by a pump has to move air at the same rate. Size the vent for the fastest fill and the fastest draw the site will ever do, and keep the path clear and screened.
• Service limit: 120 F / 48 C. The sheet publishes no warranty term for this part, so ask us for Snyder's current terms in writing rather than assuming the term another tank in the range carries.

The maintenance point that matters most on a shell this tall is where nobody looks. Failures in a polyethylene tank tend to begin in the vapour-saturated headspace above the liquid line rather than down in the product, and an inspection carried out from the liquid side walks straight past them; the article on wall thickness at the vapour-saturated headspace explains why, and what the sizing logic behind the wall is actually protecting. Put that inspection on the calendar with a named owner on the day the tank is commissioned.

Bulk water, reuse trains and fire reserve on a rural site

Twelve thousand gallons is a site reserve rather than a process vessel. It goes in as bulk process and wash water at a plant, as the storage stage in a water reuse scheme, as raw or treated water storage at a rural or remote facility, as agricultural bulk storage, and as the stored volume in a private fire protection arrangement. Where the water comes from more than one stream and has to be banded by quality before it is reused, the industrial water reuse tank topology article sets out how to arrange the storage train and sequence the treatment stages instead of putting everything in one tank and hoping. Where the reserve exists for firefighting, the sizing discipline and the freeze protection are the whole job, and the fire water reservoir design guide for rural and remote sites is the piece to read before the volume is fixed.

Oversize out of Lincoln, and the day the tank arrives

This tank is molded at Lincoln, Nebraska. The sheet gives the freight class as OVS under NMFC 156600, and OVS is a mode rather than a numeric class: a 142 inch diameter shell standing 198 inches tall is an oversize movement with a route, clearances and a set-down plan, not a pallet on a line-haul trailer. Price the lane to your ZIP with the freight cost estimator, and the listed price is before freight. Empty it is 3,100 pounds, so the unloading is about size and rigging rather than sheer weight: a crane or a large telehandler, slings on the points Snyder specifies, never a strap around the manway and never rolling it on gravel. Have the pad poured, cured, surveyed and swept before the delivery date is confirmed, and have the anchors and the fittings on site the same day. Fill with clean water in stages, check the base contact and plumb at each stage, and hold it full long enough to read the outlet fitting and the manway before the working liquid goes anywhere near it. Write the commissioning date and the part number on the shell itself with a paint marker; a black tank on a pad looks like every other black tank on a pad by the second year. Photograph the outlet fitting from below before the pipe goes on; a slow weep is easier to compare against than to describe.
