Snyder Industries 550 Gallon HDPE Liquid Storage Tank with ASTM Certification in White

What the certification means for a buyer

A rotationally molded polyethylene tank is specified against ASTM D1998, and the way a tank meets it is in the wall: thickness sized for the rated specific gravity, resin properties, and the way the wall is sized where it matters most. The HDPE tank wall thickness guide explains the D1998 sizing logic and why the vapor headspace, not the liquid side, is where tanks fail first; the Captor freeboard sizing guide covers the volume the same standard tells you to leave empty. For a project that needs the tank on a submittal, this is the 550 gallon tank to specify. The tank sizing calculator and the tank sizing guide confirm that 550 gallons is the right volume.

Snyder's 500 to 710 gallon verticals

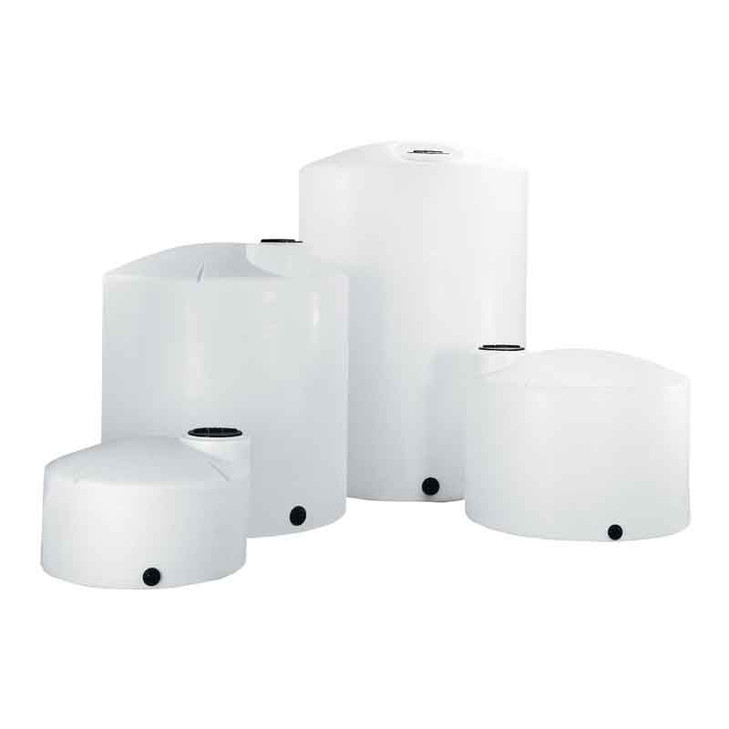

The 1800000C26 is this mold with 30 more pounds of resin and a factory bulkhead outlet. The 1820000N45 is the same 550 gallons laid out low, 47 inches tall on a 64 inch base, for the room with no headroom. The 5780100N42 is a cross-linked 500 gallon tank for oxidizers, and the 1700200N42 steps up to 710 gallons at 68 inches tall.

Want us to check the fit? Send the site dimensions to 866-418-1777 or through a written quote request and we will confirm the tank, the pad and the freight.

Where the pipe goes

• Outlet: 2 inch, at the bottom of the sidewall.
• Access: 18 inch threaded, vented manway.
• Service limit: 120 F / 48 C.

An 18 inch manway on a 48 inch tank makes cleaning and instrumenting easy; a float switch, a sender and a fill hose all fit at once. Pipe the outlet through a flexible transition so the tank can grow and shrink with temperature without working the fitting, and leave the vent in the manway clear so a pump cannot pull the wall inward on a fast draw.

The work it does

As a water tank it is a pressure buffer for a slow well, a rain cistern, or one unit of the fire reserve described in the fire-water reservoir design guide. As a liquid storage tank with the 1.9 wall, it holds brine, fertilizer or treatment chemicals up to that density. Larger white tanks in the same family are covered in the 2,000 gallon vertical tank buyers guide.

Freight, in plain terms

The tank ships palletized as LTL freight (NMFC 156600-02) at a class rate; the freight cost estimator gives it for your ZIP, and the listed price is before freight. Two people carry 110 pounds off a liftgate. Fill it once with water to the manway and hold it before it goes into service, and keep the certification paperwork with the project file.
