The green 3,500 gallon tank
The Snyder 32296 is the green version of the 96 inch, 125 inch tall 3,500 gallon vertical tank: the same mold and the same 535 pound wall as the black 32294, in high density linear polyethylene, in the color chosen for drinking water that stands where people see it. It is the largest tank that fits a 96 inch pad. Twenty-six inch threaded vented manway on top, 1-1/2 inch polypropylene inlet, 2 inch polypropylene outlet, rated for a specific gravity of 1.0.
Is this the right 3500 gallon tank? Call 866-418-1777 with the liquid, the site and the ceiling height, or get freight to your ZIP and add it to your cart above.
Green or black
Both block the light that grows algae. Green marks a potable tank in a yard full of black chemical and septic tanks and sits more quietly beside a house; black is the plain choice for stock, irrigation or fire water on a working site. Wall, fittings, pad and freight are identical, so the choice is what the tank holds and who will look at it.
On the 96 inch floor
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|

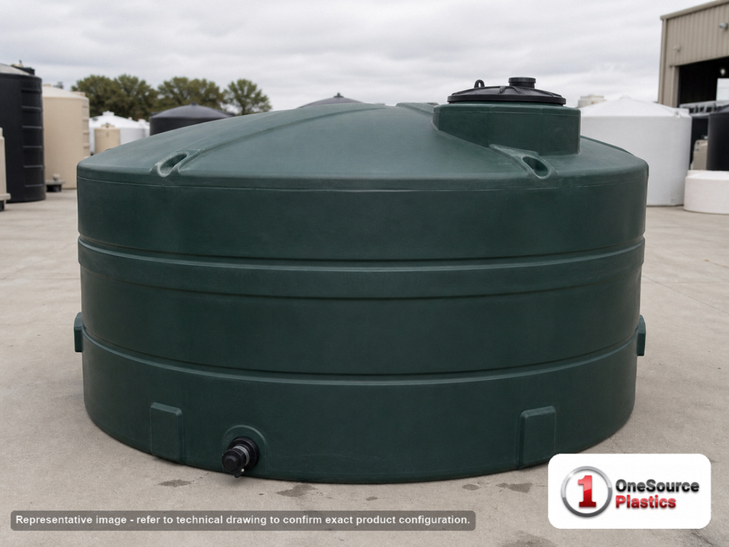

| 32781, straight wall | 3,000 | 102 x 97 in | 350 lb |
| 32294, black | 3,500 | 96 x 125 in | 535 lb |
| 32296 (this tank) | 3,500 | 96 x 125 in | 535 lb |
| 32327 | 4,100 | 102 x 130 in | 714 lb |
A site poured for a 96 inch tank can step up to this one without a new slab. The 4,100 gallon 32327 needs the wider 102 inch pad and 5 more inches of height, with 179 more pounds of wall. The 3,000 gallon straight-wall tank is the low option at 97 inches for a ceiling problem.
Comparing across brands too? Call 866-418-1777; we carry Norwesco, Snyder, Chem-Tainer, Enduraplas and Bushman and will say which one fits, or price the freight first.
The slab, and the vent
Full, the tank weighs 29,190 pounds, carried high on a 96 inch circle. It needs a level slab in full contact with the whole floor, sized by the ACI 360R-10 method in the concrete pad sizing guide. Service limit is 120 F / 48 C. The manway vent has to move the air displaced by 3,500 gallons on fill and draw-down; keep it clear, run the fill to the top inlet, and leave the manway closed for inspection.
Ports
- 1-1/2 inch polypropylene female NPT bulkhead inlet on top for the fill line or a float valve.
- 2 inch polypropylene female NPT bulkhead outlet at the base: full-port valve, union, pump.
- 26 inch threaded, vented manway.
A sight tube on the outlet reads the level; the level gauge selection guide compares sensors that read through a green poly wall.
In service
Community or ranch drinking water, a private fire reserve with margin over the usual 3,000 gallon minimum, sized in the fire-water reservoir design guide, and the raw water block of a reuse train in the industrial water reuse topology guide. Confirm the capacity against your draw with the tank sizing calculator and the tank sizing guide.
Delivery
Oversize freight (NMFC 156600), flatbed, quoted by lane through the freight cost estimator; the listed price is before freight. Plan the lift for 535 pounds and 125 inches of length, and a route to the pad with the clearance to match. Fill in stages the first time, watching the slab, per the hydrostatic test methodology guide.
Freight and documents
Ships from: Merced, CA; Albertville, AL. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
