Snyder Industries 360 Gallon Plastic Vertical Double Wall Waste Oil Tank in Yellow

The fleet shop's used-oil tank, contained

Three hundred sixty gallons is a month or more of oil changes for a fleet shop or a quick-lube, which is the point: the hauler comes on a schedule instead of on a panic, and one lockable vessel replaces a row of drums that leak, get kicked and draw a citation. The low, wide shape keeps the manway at chest height for a drain pan and cannot tip when a floor jack bumps it. A leak lands in the interstitial space instead of on the floor drain; the SPCC 40 CFR 112 compliance walkthrough covers where a double wall tank satisfies a spill plan on its own, and where used oil is managed as hazardous waste the RCRA 40 CFR 264.193 secondary containment guide covers the leak detection and inspection cadence a regulator will ask about. The Captor double wall freeboard sizing guide works out how much of the nominal 360 gallons is usable, and the Snyder Captor 110 percent containment comparison sets the polyethylene double wall against a UL 142 steel tank for a shop. The list below is the resin's rated chemistry, for the solvents and coolants that end up in a used-oil tank; check anything unusual at its concentration in the chemical compatibility database. The tank sizing calculator sizes the tank to oil changes per week and the hauler's pickup interval, and the tank sizing guide covers the reserve to leave for a missed pickup.

Snyder's double wall waste oil tanks

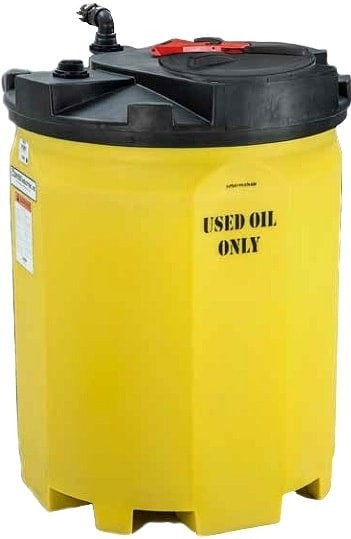

The 5740102N95703 is the 275 gallon step down at the same height on a base 6 inches narrower, for a smaller shop; the 5990702N95703 stands 405 gallons on a 48 inch base 10 inches taller, for the corner with height and no floor.

Want us to check the fit? Send the site dimensions to 866-418-1777 or through a written quote request and we will confirm the tank, the pad and the freight.

Manway, outlet and the interstice

• Access: 18 inch hinged, lockable manway with a strainer basket; the drain pan pours straight in, and the strainer catches the plug and the gasket.
• Outlet: 2 inch male camlock with an internal draw pipe; the hauler's hose couples at the top and pumps from the floor of the primary.
• Service limit: 120 F / 48 C.

There are two levels to watch: the primary, read through a sight tube or a dipstick through the manway, so the tank is called for pickup before it is full, and the interstitial space, which is the leak alarm and gets a look each week and a note in the log. A wet interstice is a failed primary, and the tank is drained the same day. Keep the manway locked between drains, keep the tank away from the heater and out of the sun, and keep coolant, solvent and brake fluid out of it, because the hauler tests the load and rejects a contaminated tank.

Pickup day

The hauler couples to the camlock, pumps the tank down through the draw pipe, and leaves; nothing is lifted, poured or opened. Log the gallons taken and the date, because that log is what the fire inspector and the waste regulator both ask for, and it tells you how often to schedule the truck. Once a year, with the tank empty, open the manway and look at the floor of the primary and the strainer for sludge, and rinse the strainer.

Typical duty

Fleet maintenance garages, quick-lube bays, equipment dealers, truck shops, and any building where a month of used oil is stored indoors under a fire code. Used oil only, labeled, manway locked.

Rated chemistries for this tank

The manufacturer lists these liquids for this resin at the concentrations noted, with the fitting and gasket material to specify. Check the concentration and temperature you actually run on the linked page or in the chemical compatibility database before ordering.

• Acetic Acid (60%) - PP/PVC fittings, EPDM gaskets
• Aluminum Sulfate (50%) - PVC fittings, EPDM gaskets
• Calcium Chloride (40%) - PVC fittings, EPDM gaskets
• DEF (32.5%) - 316SS fittings, EPDM gaskets
• Ferrous Sulfate (20%) - PVC fittings, EPDM gaskets
• Magnesium Chloride (30%) - PVC fittings, EPDM gaskets
• Sodium Carbonate (30%) - PVC fittings, EPDM gaskets
• Urea Solution (50%) - PP/PVC fittings, EPDM gaskets
• Ethylene Glycol
• Ferric Chloride
• Ferric Sulfate
• Hydrochloric Acid
• Hydrofluoric Acid
• Hydrofluosilicic Acid
• Hydrogen Peroxide
• Peracetic Acid
• Phosphoric Acid
• Polyaluminum Chloride
• Potassium Carbonate
• Potassium Hydroxide
• Propylene Glycol
• Sodium Bisulfate
• Sodium Bisulfite
• Sodium Hypochlorite
• Sodium Thiosulfate
• Sulfuric Acid or
• Zinc Orthophosphate do not put it in this tank - step up to the 1.9 SG version. Several of those (Hydrochloric, Hydrofluoric, Hydrogen Peroxide, Peracetic, Ph

Freight to your ZIP

The 5760102N95703 ships palletized as LTL freight (NMFC 156600-03) at a class rate; the freight cost estimator gives the number for your ZIP; the price shown here is before freight. A pallet jack moves 234 pounds. Work the manway and the lock, couple a camlock to the outlet once to prove the fit, and confirm the interstice is dry before the first drain pan goes in. A photo of the tank on its pad, full, on day one is worth keeping; it is the baseline every later inspection is compared against.
