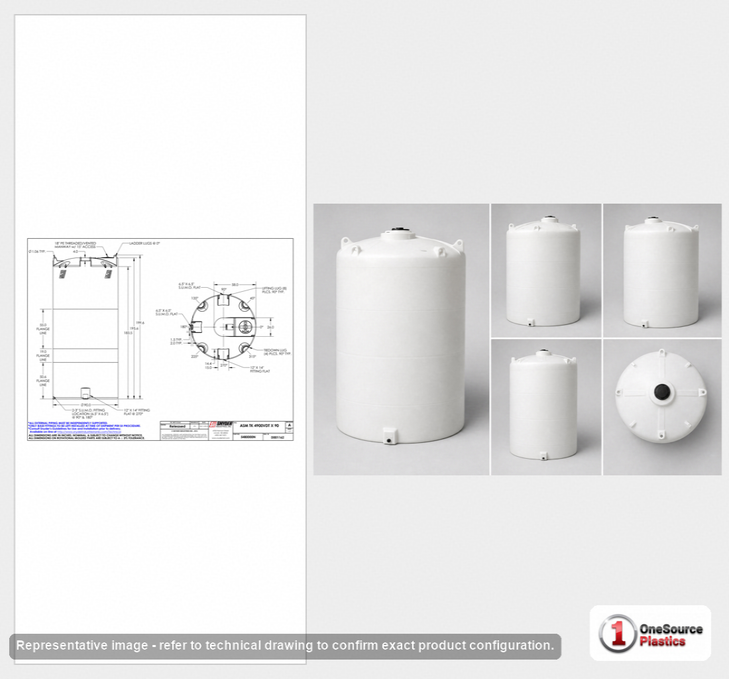

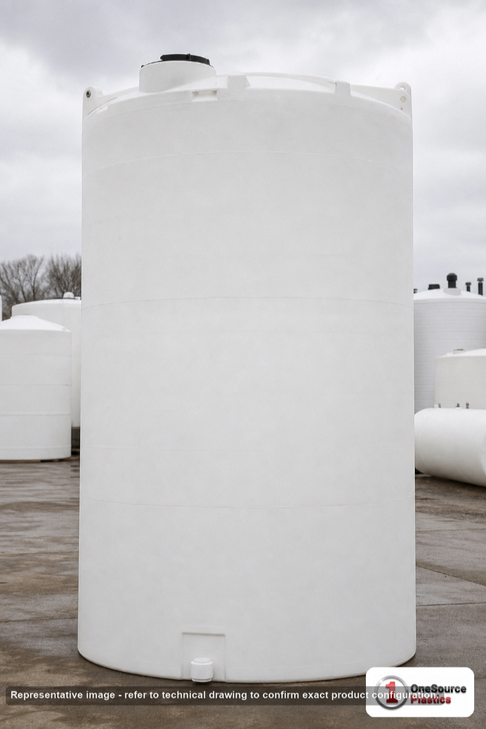

Snyder Industries 5000 Gallon Plastic Vertical Chemical Storage Tank in White

Specifying a 5,000 gallon chemical tank

Three checks come before the order. The density of the liquid at delivered concentration against the 1.9 rating. The resin against the chemical in the chemical compatibility database, since the list below is the resin's rated chemistry and resistance is a separate property from weight. And the volume against feed rate and delivery interval in the tank sizing calculator, with the reserve the tank sizing guide describes; a tanker's full load is the number that usually decides this size. The pad is an engineered slab in full contact under the 119 inch floor, sized for 79,230 pounds and level enough that 116 inches of tank stands plumb; the siphon outlet means the tank can stand in a basin with no clearance under it.

Five thousand gallons, three footprints

The 1002100 tanks put the same 5,000 gallons on a 102 inch base at 154 inches, 38 inches taller and 500 pounds lighter, for the site with height and no floor. The 5480000N40 goes narrower still, 90 inches across and 202 tall at this tank's 1,450 pounds. The 32372 is the 5,100 gallon tank on a 102 inch base at 159 inches. The 32366 is the one for the low room and the basin.

Comparing across brands too? Call 866-418-1777; we carry Norwesco, Snyder, Chem-Tainer, Enduraplas and Bushman and will say which one fits, or price the freight first.

Openings, instruments, containment

• Outlet: 3 inch polypropylene female NPT bulkhead fitting with a 2 inch reducer siphon tube to the floor; a flanged transition, an expansion joint, and a valve supported off the slab. A siphon outlet needs a pump or a prime; it does not gravity-drain below the fitting.
• Access: 20 inch threaded, vented manway, vented outside on caustic and acid service; fill through a dip tube to the floor.
• Service limit: 120 F / 48 C.

Choose the level sender for the chemical with the level gauge selection guide; at 116 inches a hydrostatic sender at the outlet or radar on the manway both work. Size the containment before the tank: a berm around a 119 inch tank is a large one, and the Snyder Captor 110 percent containment comparison shows where a double wall tank is the smaller and cheaper footprint.

Receiving a tanker

The driver's pump can deliver faster than the manway vent can breathe, so the vent is sized for the unload rate or the fill goes through a dedicated top bulkhead with its own vent line. The fill pipe runs to the floor so caustic or coagulant does not free-fall and foam. Dense liquids heat up when diluted, so a tank topped off with water for a batch is filled water first, chemical second, never the other way. And the first delivery into a new tank is watched from start to finish, with the slab edge and the outlet fitting checked as the level climbs.

Day-to-day duty

Bulk caustic, ferric, alum and acid at water and wastewater plants that take full tanker loads; reagent storage on a process floor; fertilizer and brine at agricultural sites. Label the tank for the fire inspector and the workplace inspector at once, and keep the tanker's approach clear.

From the plant to your site

At 119 inches across the 32366 is oversize freight (NMFC 156600) on a flatbed at a lane rate; the freight cost estimator prices it for your ZIP, and the listed price is before freight. A crane or a large telehandler sets 1,450 pounds on the slab. Strap it while empty, water-test in stages with a hold, drain through the siphon to prove it, then dry the tank before the first chemical delivery. Write the fill date on the manway with a paint marker; it answers the first question anyone asks about a tank.

What this tank is listed to hold

Each line is a liquid the resin is rated for, at the concentration shown, with the fitting and gasket to order. Follow the link for the full rating, or search the chemical compatibility database before ordering.

• Acetic Acid (60%) - PP/PVC fittings, EPDM gaskets
• Aluminum Sulfate (50%) - PVC fittings, EPDM gaskets
• Calcium Chloride (40%) - PVC fittings, EPDM gaskets
• DEF (32.5%) - 316SS fittings, EPDM gaskets
• Ethylene Glycol (100%) - PVC fittings, EPDM gaskets
• Ferric Chloride (50%) - PVC fittings, EPDM gaskets
• Ferric Sulfate (60%) - PVC fittings, EPDM gaskets
• Ferrous Sulfate (20%) - PVC fittings, EPDM gaskets
• Hydrochloric Acid (37%) - PVC fittings, Viton gaskets
• Hydrofluoric Acid (48%) - PP/PVC fittings, Viton gaskets
• Hydrofluosilicic Acid (26%) - PP/PVC fittings, Viton gaskets
• Hydrogen Peroxide (50%) - PVC fittings, Viton gaskets
• Magnesium Chloride (30%) - PVC fittings, EPDM gaskets
• Peracetic Acid (30%) - 316SS fittings, Aflas gaskets
• Phosphoric Acid (85%) - PVC fittings, Viton gaskets
• Polyaluminum Chloride - PVC fittings, EPDM gaskets
• Potassium Carbonate (50%) - PVC fittings, EPDM gaskets
• Potassium Hydroxide (saturated) - PVC fittings, EPDM gaskets
• Propylene Glycol - PP/316SS fittings, EPDM gaskets
• Sodium Bisulfate - PVC/PP fittings, EPDM gaskets
• Sodium Bisulfite - PVC/PP fittings, EPDM gaskets
• Sodium Carbonate (30%) - PVC fittings, EPDM gaskets
• Sodium Hypochlorite (under 16.5%) - PVC fittings, Viton gaskets
• Sodium Thiosulfate (40%) - PVC fittings, EPDM gaskets
• Sulfuric Acid (98%) - CPVC fittings, Viton gaskets
• Urea Solution (50%) - PP/PVC fittings, EPDM gaskets
• Zinc Orthophosphate - PP/316SS fittings, EPDM gaskets
