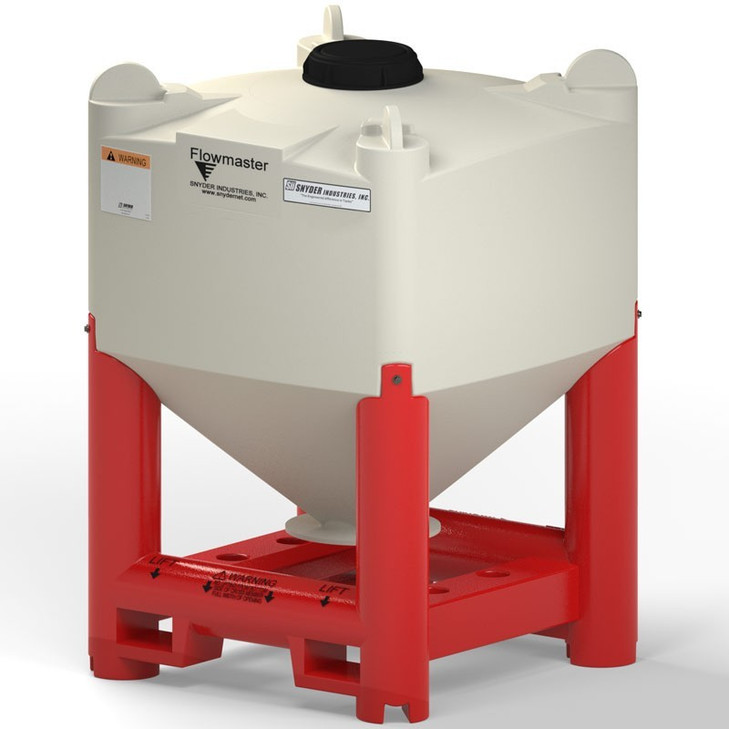

Snyder Industries 60 Cubic Feet 45 Degree Plastic Flowmaster Dry Hopper Bin Tank

Where a 48 by 45 inch bin lands on the floor

The footprint is the argument. Forty-eight inches by forty-five is narrower in one direction than a full pallet square, and those three inches matter when a bin has to go between two machine frames, alongside a conveyor leg or into a bay that was never laid out for it. The height is 86 inches, and that is the number to check against the building first: a standard dock door takes it standing, a low roller shutter, a sprinkler main or a duct at that level does not. The height from the floor to the discharge decides whether a drum, a pail, a bag filler, a weigh hopper or a mixer inlet fits under the outlet, so measure the receiving equipment and tell us the clearance you need before the order goes in. The bearing surface has to carry the whole plan flat and level: a slab, a structural deck or a purpose-built steel frame. If it goes on a frame, the frame sets your discharge height and the frame is what has to be engineered. Empty it is 352 lb, past a two-person lift; loaded, the weight depends on the bulk density of whatever goes in, so weigh the material or get the figure from your supplier before any steelwork is drawn. On a poured pad rather than a structural floor, our concrete pad sizing guide for above-ground polyethylene tanks is where that load gets sized. The tank sizing calculator and the tank sizing guide are written around liquid volume, which is worth knowing when you are buying a vessel sold in cubic feet.

Openings and fittings

1. Outlet. 2 inch, at the bottom of the 45 degree slope. A slide gate, a valve or a feeder connection goes here; support it on its own so the bin carries material, not hardware.
2. Lid. A 12 inch lid on top, enough to fill from a sack or a chute and to get a hand inside to clean.
3. The material. Polyethylene suits most dry granules and powders that do not attack it. Check anything corrosive or hot with us; the shell is rated to 120 F.
4. Drawing. Snyder's drawing for this bin is linked under Technical Drawing on this page; it shows the slope, the discharge position and the lid.

The viscous bin, the taller dry bin and the feed station

People confuse this bin with its liquid twin, the 450 gallon Flowmaster viscous hopper bin tank, which is built for slow-moving liquids; tell us what the product is and we will put you on the right one. The taller dry bin on the steeper cone is the 68 cubic foot 60 degree Flowmaster dry hopper bin. For metered chemical dosing at a plant, look at the 440 gallon HDLPE chemical feed station tank in white.

Shipping and receiving

The bin ships LTL from Snyder's Lincoln, Nebraska plant, 48 by 45 by 86 inches on the pallet at 352 lb, one upright pallet position over seven feet tall; it is a forklift job at both ends. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the tailgate, check the part number 6370629N95402 against the bill of lading and look at the slope and the outlet for transit damage before it goes to its frame.

Questions before you order? Call 866-418-1777.
