Snyder Industries 6000 Gallon Plastic Vertical Water Storage Tank in White

Twenty-five tons of water on an eight and a half foot circle

Full, the WV90 puts 50,040 pounds on a 102 inch circle, and a rotationally molded floor bears on the whole pad, so the pad is what matters: an engineered slab bearing under the entire floor, sized by the concrete pad sizing guide, with the empty tank strapped against wind at two heights, because a tank this tall catches it. The first fill is the acceptance test; the hydrostatic test methodology guide covers the fill discipline, the settlement check and the hold time. The tank sizing calculator tells you whether 6,000 gallons covers the draw, and the tank sizing guide covers days of supply.

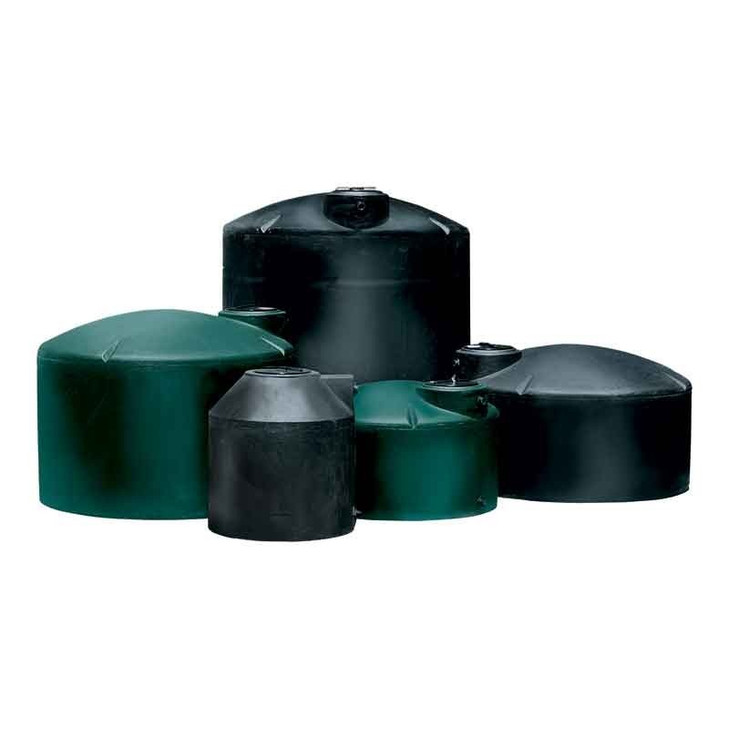

Snyder's 5,000 to 6,900 gallon verticals

The 7430000 tanks are the liquid storage shells on this base, rated for brine and chemical, the C26 and C37 with a 3 inch fitting already in. The 7000000C137 holds the same 6,000 gallons on a 120 inch base at 132 inches, 56 inches lower, for a site with floor and no height; the 1002100C126 is the 5,000 on this base, 34 inches lower, and the 7140000C137 holds 6,900 on the ten foot base.

Pad already poured? Send its size to 866-418-1777 or in a quote request and we will match a row to it, freight to your ZIP included.

The three openings

• Outlet: 2 inch, at the base; a flexible connector between the bulkhead and hard pipe, and the valve supported off the slab. For a fire reserve a larger outlet is specified at order.
• Access: 18 inch manway, 188 inches up, reached from a fixed platform with a rail, never a ladder.
• Service limit: 120 F / 48 C.

A 2 inch outlet feeds a pressure pump or a fire pump's suction without starving it, and fifteen feet of water above it gives the pump a flooded suction to the last few inches. The white wall shows the level in daylight from the ground, which on a tank this tall is worth a lot; a float switch for low level protects the pump. Where it freezes, insulate or drain the outlet valve and the first length of pipe; the body takes ice from the top down without harm.

Jobs it is bought for

Well storage for a community system with height and a small pad, a rain cistern under a large roof, stock water at a big operation, and a fire reserve of the kind the fire-water reservoir design guide describes, where the height gives a pump a flooded suction. Several of them are the storage stage of a reuse system for roof water and condensate, per the industrial water reuse tank topology article.

What the carrier needs from you

At 102 inches across and 188 inches long on the deck the WV90 is oversize freight (NMFC 156600) on a flatbed at a lane rate; the freight cost estimator prices the lane to your ZIP; the figure listed here is before freight. A crane sets 1,595 pounds upright on the slab; a forklift unloads it; only a crane stands it. Fill it to the manway once, hold it, check the outlet fitting, and keep a screen on the vent. Tape a copy of the spec sheet inside the control panel door; the next person to touch the tank will not have the box it came in.
