1,300 gallons at 1.5 specific gravity, ASTM certified

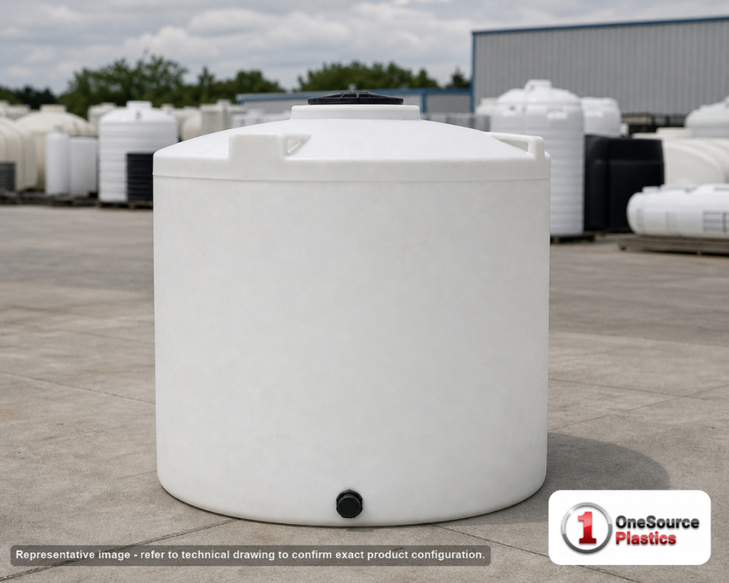

The Snyder 1830400N43 is a white polyethylene vertical liquid storage tank, 72 inches across and 87 inches tall, holding 1,300 gallons at 290 pounds. Its wall is rated for a specific gravity of 1.5, or 16,263 pounds of contents against 10,842 for water, so it holds brine, fertilizer solution and coagulant as delivered as well as water, and it is sold with ASTM certification for jobs that need the paper. An 18 inch threaded, vented manway on top, a 3 year warranty, and it ships as standard LTL freight.
Talk to a person first? 866-418-1777 reaches a tank specialist, not a call center; or see freight to your ZIP and add the 1300 gallon tank to your cart above.
Five totes, certified, under seven and a half feet
Thirteen hundred gallons is five totes with room for expansion and freeboard, and the 72 by 87 inch shape holds it under a standard ceiling with the manway reachable from a step. A water-rated wall is for water and nothing heavier; the heaviest wall is for concentrated acid; a 1.5 wall is the middle, sized for brine, fertilizer solution and coagulant as delivered and every water application, with margin. D1998 is what the certification refers to, and it is met in the thickness of the wall; the HDPE tank wall thickness guide explains the sizing logic and why the headspace is where a wall ages. Full, it puts 16,263 pounds on a 72 inch circle at the rating, so it is strapped to a wall and set on a slab in full contact; the concrete pad sizing guide covers a shared slab. The tank sizing calculator tells you whether 1,300 gallons covers the draw, and the tank sizing guide covers days of supply.
Grades on the 72 x 87 inch tank, and the sizes beside it
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|
| 1830400N43 (this tank, 1.5 SG, ASTM certified) | 1,300 | 72 x 87 in | 290 lb |
| 1830400N40 (XLPE) | 1,300 | 72 x 87 in | 290 lb |
| 1830400N42 (XLPE, heavy wall) | 1,300 | 72 x 87 in | 320 lb |
| 1830400N46 | 1,300 | 72 x 87 in | 290 lb |
| 1830200N40 (tall, XLPE) | 1,200 | 60 x 109 in | 300 lb |
| 1770000C34 (low profile) | 1,500 | 86 x 72 in | 260 lb |
The N40 is cross-linked polyethylene for oxidizers at this tank's weight, the N42 the heavier cross-linked wall at 320 pounds, and the N46 another linear grade. The 1830200N40 stands 1,200 gallons on a 60 inch base at 109 inches for a narrow corner, and the 1770000C34 lays 1,500 gallons down to 72 inches on an 86 inch base for a low roof.
Neighboring size a better fit? Every row links to its own page; freight to your ZIP is quoted on each, or call 866-418-1777.
Connections
- Access: 18 inch threaded, vented manway, 87 inches up; filled through a dip tube from a hose or a truck, with the vent run outdoors when the liquid fumes.
- Outlet: tell us the liquid when ordering and the bulkhead fitting is matched to it; run a flexible line to the pump suction and hang the valve off the floor, not the tank.
- Service limit: 120 F / 48 C.
- Listing: ASTM certification.
A white 87 inch tank shows its level in daylight; a float switch for low level protects a pump. Mount the pump below the outlet so it primes by gravity, keep the manway closed against vapor loss, and keep the tank out of direct sun where the liquid is light-sensitive. Where it freezes, insulate or drain the outlet valve and the first length of pipe.
Receiving a delivery
A small delivery truck's pump moves liquid faster than a manway vent passes air, so the vent is sized for the unload rate or the fill comes in through a top bulkhead with its own vent line. A fill pipe to the floor keeps the liquid from free-falling and foaming. The first fill of a new tank is watched end to end, outlet fitting checked as the level comes up, and the log takes the date and strength of every load that follows.
What it holds in practice
Brine for a softener bank, fertilizer solution on a farm, coagulant as delivered at a small plant that needs the certification on file, well storage, and one cell of a small fire reserve of the kind the fire-water reservoir design guide describes. One liquid per tank, labeled.
Getting it to the pad
The 1830400N43 ships palletized as LTL freight (NMFC 156600-01) at a class rate; the freight cost estimator turns your ZIP into a freight number; the price on this page is before freight. A forklift or a pallet jack moves 290 pounds. Strap it, fill it to the manway once, hold it, check the outlet fitting, and keep the certification paperwork with the project file. Once it is full and holding, leave it alone for a day before the plumbing goes on; a settled tank is a quiet one.
Freight and documents
Ships from: Chowchilla, CA. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 1830400N43.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
