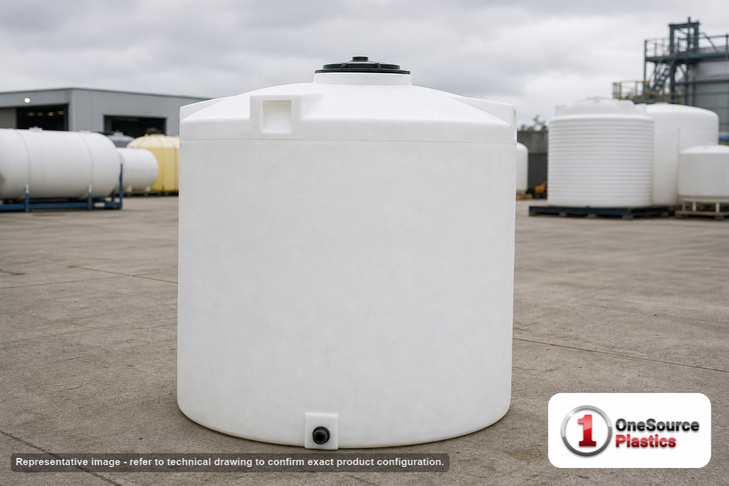

Snyder Industries 1300 Gallon HDPE Vertical Liquid Storage Tank with ASTM Certification

Five totes of dense chemical under an eave

Thirteen hundred gallons is five totes with room for expansion and freeboard, on a 72 inch base that stands without a strap on a flat slab and fits a standard containment tub. A 1.9 specific gravity wall is sized for a liquid nearly twice as dense as water, and the wall is designed to ASTM D1998; the HDPE tank wall thickness guide explains the sizing logic and why the headspace is where a wall ages, and the freeboard sizing guide works out the usable volume once thermal expansion, which is large for a dense chemical, is accounted for. Full, it puts 20,600 pounds on a 72 inch circle at the rating: a slab in full contact, per the concrete pad sizing guide, inside a berm or a containment tub sized to the tank. The tank sizing calculator sizes the tank to feed rate and delivery interval, and the tank sizing guide covers the reserve.

Grades on the 72 x 87 inch tank, and the sizes beside it

The N42 is the heavy cross-linked tank at this tank's weight for the densest oxidizers, and the N40 and N46 the lighter cross-linked and linear grades. The 1830200 tanks stand 1,200 gallons on a 60 inch base at 109 inches, the N43 at 1.5, for a tank that has to come through a door; the 1770000C34 lays 1,500 gallons down to 72 inches on an 86 inch base.

Other makers in the running? 866-418-1777 will compare them honestly; Norwesco, Snyder, Chem-Tainer, Enduraplas and Bushman are all here, or price freight on this one.

Top and bottom connections

• Access: 18 inch threaded, vented manway, 87 inches up; vent outside on acid and caustic service, fill through a dip tube, and size the vent for the delivery pump.
• Outlet: the bulkhead fitting is chosen for the chemical at order time; a flanged transition and a valve supported off the floor, in the material the chemical calls for.
• Service limit: 120 F / 48 C.
• Snyder line: ASTM.

Choose the level sender for the chemical and read it at ground level; leave the manway closed between fills to hold the vapor, and put the tank in shade if the chemical is light-sensitive. Label it so the fire inspector and the workplace inspector read the same thing. In a freezing climate insulate or drain the outlet valve and the first run of pipe.

First load in

A delivery truck's pump can push air out faster than a stock vent can pass it, so the vent is sized for the unload rate or the fill goes through a dedicated top bulkhead with its own vent line. Run the fill pipe to the floor so caustic or coagulant does not free-fall and foam. Diluting a dense chemical makes heat, so a batch is built water first and chemical second, never the reverse. The first load into a new tank gets watched end to end, eyes on the slab edge and the outlet fitting while the level comes up, and from then on each load is logged by date and strength.

Duty it is sized for

Ferric and other dense coagulants at a small plant, acid feed for pH control, heavy brine at a softener plant, dense process chemicals from a tote truck, and water where the buyer wants the heaviest wall, including one cell of a small fire reserve of the kind the fire-water reservoir design guide describes. One chemical, one tank, one label that both inspectors read the same way.

Landing it on the pad

The 1830400N45 ships palletized as LTL freight at a class rate; the freight cost estimator shows the lane to your ZIP; the listed figure is the price before freight. Two people stand 320 pounds; at 72 inches across it goes through a double door or outside. Fill it with water to the manway and hold it, drain and dry, and only then connect the chemical. Put the tank's part number on the maintenance log the day it lands; five years on, nobody remembers which shell it is.
