Norwesco 1250 Gallon Hauling Water Storage Tank with Low Profile Design in White

On a truck, a trailer or as a low reservoir

At 130 by 81 inches the tank covers most of a flatbed or a gooseneck deck, and at 38 inches tall it is the lowest way to carry this much water. Full, it is close to 10425 lb, so the truck's or trailer's axle, tire and tongue ratings decide whether it can be hauled full; many rigs carry it part full. Support the whole base, not the ends: the tank needs a flat, continuous deck or pad under it, and anything that lets the middle sag or a corner hang in the air puts the load on the wall. Strap it in every direction the vehicle can move, never over the manway. Off the vehicle it makes a good low reservoir for rainwater, stock water or a fire water reserve beside a building, where the height keeps it out of sight; see our guides to fire water reservoir tank design for rural and remote sites and concrete pad sizing for above ground polyethylene tanks. Our field operations and procurement guide to the Norwesco low profile hauling tank series covers the road rules and the buying decisions for the whole family.

What goes in it

Water is the job this tank was shaped for: hauling to stock, a construction site, a dust control rig or a remote house, and holding rainwater or a reserve at rest. Liquid fertilizer and the common farm chemicals that polyethylene handles also fit inside the 1.5 rating; check anything other than water in our chemical compatibility guide before the first fill. The 130 F service limit gives a little more headroom than most Norwesco tanks for water that has sat in the sun. For the volume itself, use the tank sizing calculator and the tank sizing guide.

Openings and fittings

1. Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed. A 2 inch ball valve, camlock or pump suction adapter threads straight into it. Support the valve and the first length of hose so the fitting carries liquid, not hardware.
2. Manway. A 16 inch threaded vented manway on top, wide enough to fill from a hydrant hose or a pump, to drop a float in, and to get a hand and a brush inside. The vent lets the tank breathe as it fills and drains, which matters more on a hauling tank that is filled and emptied fast; never plug it.
3. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet and manway positions for planning the plumbing and the tie-downs.

Sizes nearby

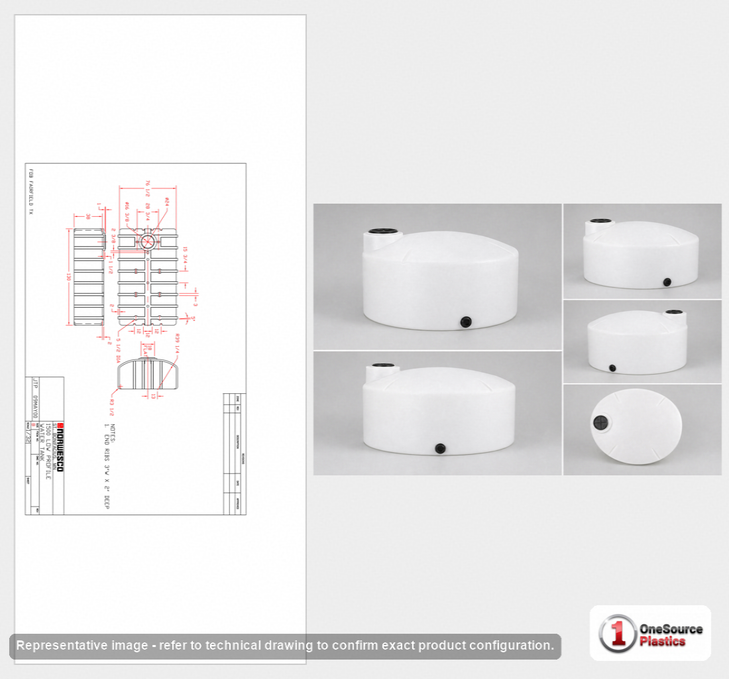

One size up in the same low profile shape: the 1500 gallon low profile hauling tank. For a tank that stays put rather than hauls, the 1000 gallon flat bottom utility tank is the stationary alternative.

Shipping and receiving

The tank ships LTL, NMFC 156600, from Norwesco's Shawnee, Oklahoma plant. On the trailer it is 130 by 81 by 38 inches and 355 lb. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, and because this tank ships from one plant, the lane matters more than usual to the total. At the tailgate, check the part number 40756 against the bill of lading, look over the base and the corners for transit damage, and fill it with water the first time before it carries anything else.

Questions before you order? Call 866-418-1777.
