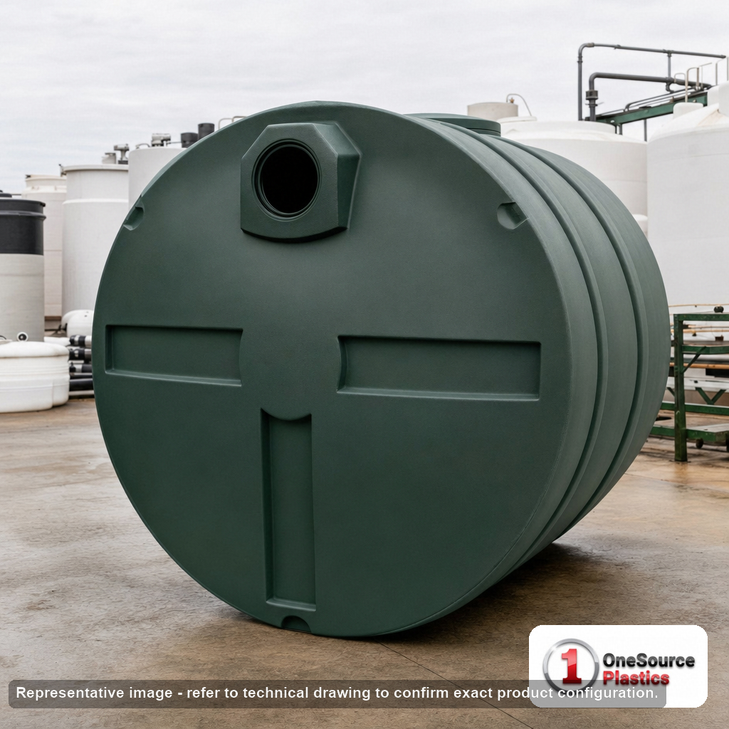

2450 Gallon Plastic Water Storage Tank

Where a 2450 fits

This size sits between the household reserve and the farm tank. On a well it carries a house through a pump outage and lets a slow well bank water overnight. On a ranch it is stock water at a pen or fill water for a sprayer. Under a barn roof it collects rain from a large roof area in a wet month; the water reuse storage guide covers keeping rain, grey water and condensate in separate trains. For a rural fire supply, the fire water reservoir design guide explains how a polyethylene tank serves as the reserve and how to keep it from freezing. The 96 inch footprint has to sit on a flat, level, continuous base that carries 20,433 lb of water plus the tank; compacted gravel in a frame or a slab both work, and the concrete pad sizing guide explains the slab. Size the volume against the real draw with the tank sizing calculator and the tank sizing guide before you order; a tank that is too small gets replaced, a tank that is too big just takes longer to fill.

Openings and fittings

1. Outlet. A 2 inch polypropylene female NPT bulkhead fitting low in the wall. Thread a 2 inch valve straight in and follow it with a union. Support the valve and the first pipe run on their own.
2. Inlet. A 1-1/2 inch polypropylene female NPT bulkhead fitting for the fill line.
3. Manway. A 16 inch threaded vented manway on top for filling, a float switch and cleaning access. At 86 inches tall, a two-step stool reaches it.
4. Rating. 1.1 specific gravity, a maximum of 9.18 lb per gallon. Water and rainwater. Most liquid fertilizers are heavier and need a tank rated 1.5 or higher. Keep contents under 120 F.
5. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the fitting heights and manway position.

Sizes and colours nearby

Same tank in dark green: the 2450 gallon dark green vertical water tank. One step down: the 2100 gallon dark green vertical water tank. Close in volume but a different shape: the 2500 gallon dark green vertical water tank. The colour swatches above the price switch between the versions of this tank.

Shipping and receiving

At 96 inches across this tank ships as an oversize load on a flatbed at freight class OVS, 340 lb, from Norwesco's Fairfield, Texas plant. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, or request a written quote. Have a loader or four people at delivery; the tank is light but it is awkward. At the tailgate, check the part number against 44656 on the bill of lading, walk round the shell for transit damage, and run the water fill acceptance test on the pad before it carries anything else.

Questions before you order? Call 866-418-1777.
