A 525 gallon white leg tank rated for heavy liquids, with a 5 year warranty

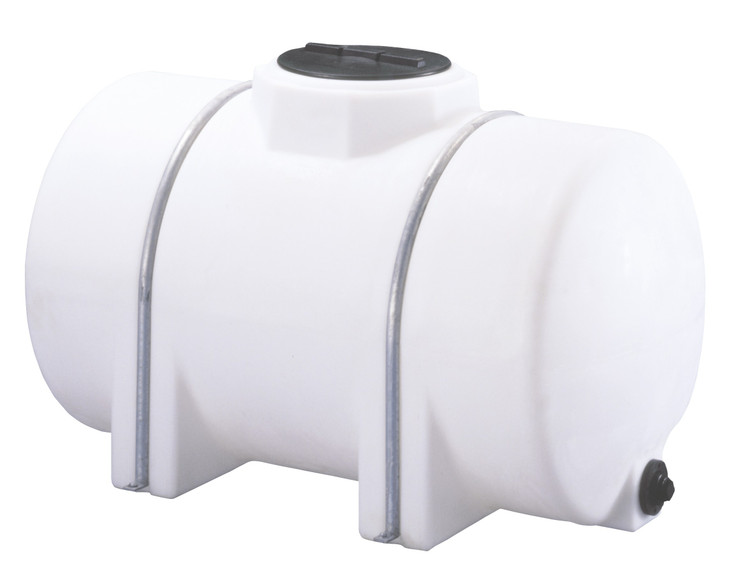

The Norwesco 525 gallon horizontal leg tank, part number 40193, is the heavy duty version of the 525 gallon white leg tank: high density linear polyethylene, rated for liquids up to 1.9 specific gravity, with a 5 year warranty from Norwesco. The tank is 49 inches in diameter, 71 inches long and 54 inches tall on its moulded legs, and weighs 159 lb empty. It comes with a 2 inch polypropylene female NPT bulkhead fitting as the outlet and a 16 inch threaded vented manway on top. The 1.9 rating means liquids up to 1.9 times the weight of water, a maximum of 15.87 lb per gallon; 525 gallons of water weighs about 4380 lb, and a full load at the rating limit is about 8320 lb. The resin is FDA compliant per Norwesco and the service limit is 120 F (48 C). White lets you see the level through the wall in daylight.
Is the 1.9 rating what you need? Get freight to your ZIP and add it to your cart above, or call 866-418-1777 with the liquid you are carrying.
Why the heavy duty version
Two white 525 gallon leg tanks share this shell. The standard one is rated for 1.5 specific gravity with a 3 year warranty; this one is rated for 1.9 with a 5 year warranty and weighs more because the wall is thicker. Buy this one when the liquid is heavier than water by a wide margin: concentrated liquid fertilizers, brines and many treatment chemicals run well above 1.5. Buy it also when the tank will ride on a trailer or a truck for years and you want the longer warranty behind it. For plain water or a thin fertilizer, the standard 525 gallon white leg tank is the lighter and cheaper choice. Our guide to Norwesco applicator and leg tanks for fertilizer and the DOT non-roadable trailer rules covers how these tanks are treated on the road.
What goes in it
Water, liquid fertilizer and the farm and treatment chemicals that polyethylene handles. Check the liquid in our chemical compatibility guide before the first fill; the entries for urea solution, calcium chloride, sodium hypochlorite, phosphoric acid and sulfuric acid are the ones leg tank buyers ask about most. Keep the contents under 120 F. If you blend fertilizer in the tank, read our note on fertilizer blend stratification and how to catch it before the spreader runs off spec. For the volume itself, the tank sizing calculator and tank sizing guide are the place to start.
Openings, fittings and bands
- Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed. Your valve, camlock or hose adapter threads straight in. Support the valve and the first length of hose so the fitting carries liquid, not hardware.
- Manway. A 16 inch threaded vented manway on top, wide enough to fill from a hose, drop a float in and get a brush inside.
- Bands. Two bands are optional for this tank, band part N-60057. If the tank rides on a vehicle, band it; strap through the leg recesses, never over the manway.
- Drawing. Norwesco's drawing for this tank is linked under Technical Drawing on this page and shows the outlet position, the manway position and the leg layout.
Sizes nearby
Same shell at the standard rating: the 525 gallon white leg tank. In black, which keeps light out of the contents: the 525 gallon black leg tank and the 525 gallon black heavy duty leg tank. One size down: the 425 gallon black leg tank. One size up: the 725 gallon black leg tank. The colour swatches above the price switch between versions of this tank.
Shipping and receiving
The tank ships LTL from the nearest of Norwesco's plants, 71 by 49 by 54 inches and 159 lb on the pallet. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. Bands ordered with the tank travel with it. At the tailgate, check the part number against 40193 on the bill of lading, look at every leg for transit damage, and fill it with water the first time before it carries anything else.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Hanford, CA; St. Bonifacius, MN; Owego, NY; Lancaster, OH; Shawnee, OK; Fairfield, TX; Tooele, UT; Washougal, WA. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 40193.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the Norwesco 525 Gallon HDPE Horizontal Leg Tank video (76 seconds) with dimensions, fittings and shipping notes.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
