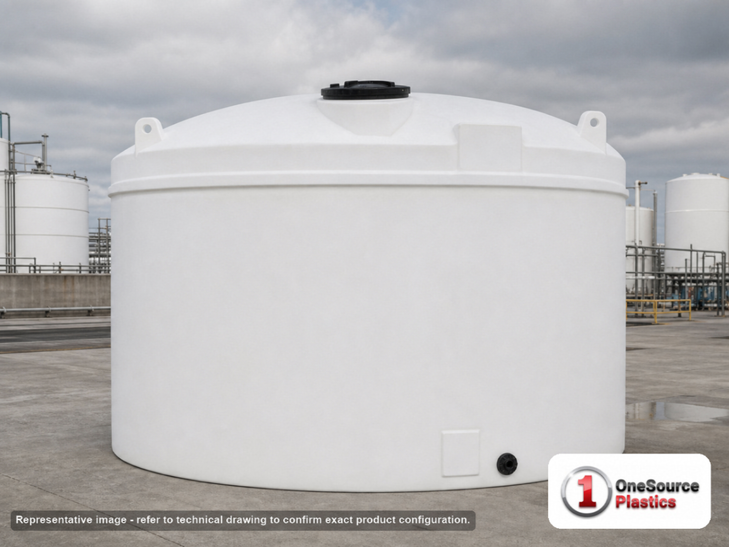

Snyder Industries 10500 Gallon HDPE Vertical Liquid Storage Tank with ASTM Certification

Forty-four tons of water on a twelve foot circle

Full of water, the 5330300N39 puts 87,570 pounds on a 143 inch circle, and a rotationally molded floor bears on the whole pad, so the pad is what matters: an engineered slab in full contact under the entire floor, screeded flat, with no pipe trench or drain crossing under it. The empty tank is strapped against wind, because 179 inches of empty polyethylene is a sail, and the straps go slack once it is full. The certification is against ASTM D1998, and the way a tank meets it is in the wall; the HDPE tank wall thickness guide explains the sizing logic and why a wall this tall is inspected from the top, in the headspace, and the freeboard sizing guide works out the usable volume once thermal expansion is accounted for. The 10,500 gallon vertical tank buyers guide compares the shapes at this volume across makers; the tank sizing calculator tells you whether 10,500 gallons covers the draw, and the tank sizing guide covers days of supply.

Grades on the 143 x 179 inch tank, and the sizes beside it

The N43 and N45 are the 1.5 and 1.9 walls in this same certified shell, 100 and 500 pounds heavier, for coagulants and then for the dense chemicals; the N33 is this same wall in black for water in the sun. The 5330000C34 holds 10,500 gallons on a 142 inch base 10 inches shorter in the general grade, the 32026 is the 10,000 gallon dark green tank, and the 32074 is the 12,000 gallon step up at 197 inches.

Torn between two rows? Call 866-418-1777 with the liquid and the ceiling height, or ask for a quote on both and compare the freight.

Openings as shipped

• Outlet: the bulkhead fitting is chosen for the liquid at order time; a flexible connector between the bulkhead and hard pipe, an expansion joint, and the valve supported off the slab. For a fire reserve a large outlet is specified at order.
• Access: 18 inch threaded, vented manway, 179 inches up, reached from a fixed platform with a rail.
• Service limit: 120 F / 48 C.
• Listing: ASTM certification.

A tank this size moves a great deal of air as it fills, empties and warms in the sun, so the vent is sized for the pump-out rate and the fill rate, not left at the manway default, and it is screened. The white wall shows the level in daylight from a distance; fit a sender read at ground level so nobody climbs for a number. In a freezing climate insulate or drain the outlet valve and the first run of pipe; at this volume the body freezes slowly and from the top down.

In service

Community and municipal water storage where the certification has to be on file, a fire reserve of the kind the fire-water reservoir design guide describes, irrigation storage on a large property, and brine or hypochlorite as delivered within the 1.35 rating. One liquid per tank, labeled.

Freight and unloading

At 143 inches across and 179 inches long on the deck the 5330300N39 is oversize freight (NMFC 156600) on a flatbed at a lane rate, with an escort on most routes; the freight cost estimator prices the move to your ZIP, and the price on this page is before freight. A crane sets 2,500 pounds upright on the slab. Fill it to the manway once, hold it, check the outlet fitting, and keep the certification paperwork with the project file. The first fill is the only cheap time to find a problem, so do it in daylight with someone watching the base.
