1,100 gallons of sulfuric acid, double walled

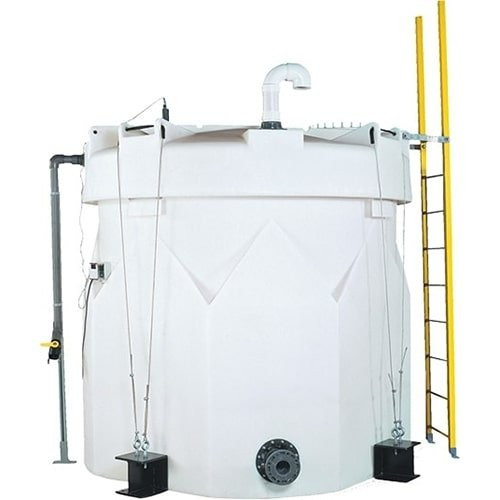

The Snyder 5470000N30 is a double wall chemical storage tank built for sulfuric acid: an 1,100 gallon white high density linear polyethylene primary rated for a specific gravity of 1.9, or 17,431 pounds of contents against 9,174 for water, standing inside its own secondary containment in a shell 76 inches across and 104 inches tall, weighing 650 pounds. Sulfuric acid is heavy, it generates heat when it meets water, and it is the chemical a spill plan worries about most, which is why the acid grade and the double wall go together. An 18 inch threaded, vented manway on the primary, and a 3 year warranty.
Is this the right 1100 gallon tank? Call 866-418-1777 with the liquid, the site and the ceiling height, or get freight to your ZIP and add it to your cart above.
Acid grade plus containment
A tank sold for sulfuric acid is built and fitted for the acid's density and its exotherm, and its fittings are chosen for the acid rather than for general service; confirm the concentration you buy against the chemical compatibility database, because sulfuric at different strengths behaves as different chemicals, and the list below is the resin's rated chemistry. Never add water to a tank that holds acid; the fill order is water first, acid second. The double wall carries the containment inside the outer shell, so the 76 inch footprint is the whole footprint and the tank can stand inside a building where a spill must never reach a floor drain; the SPCC 40 CFR 112 compliance walkthrough covers where a double wall tank satisfies a spill plan on its own. The tank sizing calculator sizes the volume to feed rate and delivery interval, and the tank sizing guide covers the reserve.
Snyder double wall tanks, 1,000 to 1,500 gallons
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|
| 5470000N30 (this tank, sulfuric grade) | 1,100 | 76 x 104 in | 650 lb |
| 5470000N52 | 1,100 | 76 x 104 in | 650 lb |
| 5470000N42 (XLPE) | 1,100 | 76 x 104 in | 650 lb |
| 5990102N30 (low, sulfuric grade) | 1,000 | 81 x 69 in | 500 lb |
| 5990302N30 (low, sulfuric grade) | 1,500 | 93 x 76 in | 950 lb |
The N52 is the general chemical grade in the same shell, for caustic, ferric and alum; the N42 is cross-linked polyethylene for oxidizers and warm liquids. The low sulfuric-grade double walls are the alternatives for a room without height: the 5990102N30 at 69 inches for 1,000 gallons and the 5990302N30 at 76 inches for 1,500.
Comparing across brands too? Call 866-418-1777; we carry Norwesco, Snyder, Chem-Tainer, Enduraplas and Bushman and will say which one fits, or price the freight first.
Openings, instruments, interstice
- Access: 18 inch threaded, vented manway on the primary, 104 inches up; vent it outside through a line the acid mist cannot corrode, and fill through a dip tube to the floor.
- Outlet: through both walls together, with an acid-rated transition supported off the floor; specify the fitting when ordering.
- Service limit: 120 F / 48 C; a tank that receives acid warm from a tanker or from dilution is watched against that limit.
Choose the level sender for sulfuric specifically with the level gauge selection guide; wetted parts rule out most standard senders, and a non-contact radar unit on the manway is the usual answer. The interstitial space is the leak alarm: a float or conductivity switch, a look into the port each shift, a logged check each week, and anything found there takes the tank out of service that day. Nothing is stacked against the outer shell, nothing is bolted through it, and the space is never used to store anything.
Day-to-day duty
Sulfuric acid at water and wastewater plants for pH control and at industrial sites for process use, inside buildings and at sites an inspector visits. Label the tank for the fire inspector and the workplace inspector at once, keep the tanker's approach clear, and strap the empty tank; a 76 inch base under 104 inches of dense liquid has a high center of gravity.
From the plant to your site
The 5470000N30 ships palletized as LTL freight (NMFC 156600) at a class rate; the freight cost estimator shows it for your ZIP, and the listed price is before freight. A liftgate and a pallet jack handle 650 pounds. Water-test the primary, confirm the interstice stays dry through the hold, then drain and dry completely before the first acid delivery; water left in an acid tank is the exotherm nobody wants. Write the fill date on the manway with a paint marker; it answers the first question anyone asks about a tank.
What this tank is listed to hold
Each line is a liquid the resin is rated for, at the concentration shown, with the fitting and gasket to order. Follow the link for the full rating, or search the chemical compatibility database before ordering.
- Sulfuric Acid at 98% — CPVC fittings, Viton gaskets
- Hydrochloric Acid at 37% — PVC fittings, Viton gaskets
- Hydrofluoric Acid at 48% — PP/PVC fittings, Viton gaskets
- Phosphoric Acid at 85% — PVC fittings, Viton gaskets
- Hydrogen Peroxide at 50% — PVC fittings, Viton gaskets
- Sodium Hypochlorite at
- Ferric Chloride at 50% — PVC fittings, EPDM gaskets
- Aluminum Sulfate at 50% — PVC fittings, EPDM gaskets
- Peracetic Acid at 30% — 316SS fittings, Aflas gaskets
- Potassium Hydroxide at saturated — PVC fittings, EPDM gaskets
- DEF at 32.5% — 316 stainless fittings, EPDM gaskets
- Ethylene Glycol at 100% — PVC fittings, EPDM gaskets
Freight and documents
Ships from: Philippi, WV. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 5470000N30.
