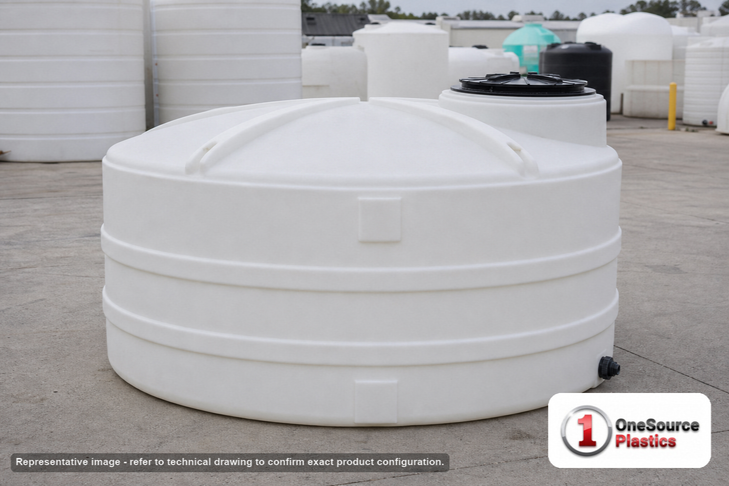

Snyder Industries 1200 Gallon Plastic Vertical Liquid Storage Tank in White

Low, wide, and drained from inside

Twelve hundred gallons at 57 inches goes under a deck, a low eave or a barn loft where a tall tank would not, and the wide base sits low enough that no strap is needed. A siphon tube outlet draws from the floor of the tank through a fitting set higher on the wall, which keeps the bulkhead out of the sediment and lets the tank sit directly on a pad without a sump; prime it once and it stays primed. The 1.5 wall covers brine, fertilizer solution and coagulant as delivered as well as water. Full, it puts 15,012 pounds on an 86 inch circle at the rating, which a compacted gravel pad or a slab in full contact carries. The 2,000 gallon vertical tank buyers guide covers the next size class; the tank sizing calculator tells you whether 1,200 gallons covers the draw, and the tank sizing guide covers days of supply.

Snyder's 1,100 to 1,300 gallon verticals

The 1830200 tanks stand the same 1,200 gallons on a 60 inch base at 109 inches, for a site with height and no floor, the N40 in cross-linked resin. The 1710000C26 is the lighter low-profile 1,100 on this same base, the 1830000W94303 holds 1,100 gallons on a 64 inch base at 91 inches, and the 1830400N40 is the cross-linked 1,300 on a 72 inch base.

Comparing across brands too? Call 866-418-1777; we carry Norwesco, Snyder, Chem-Tainer, Enduraplas and Bushman and will say which one fits, or price the freight first.

Bulkheads and lid

• Outlet: 2 inch polypropylene female NPT bulkhead fitting with an internal siphon tube; a flexible connector between the bulkhead and hard pipe, and the valve supported off the pad.
• Access: 20 inch threaded, vented manway.
• Service limit: 120 F / 48 C.

A siphon outlet needs the pump or the gravity line below the tank floor to stay primed, and a foot of drop is enough; if the line ever runs dry, refill the tank above the fitting and open the valve to re-prime. Tee a sight tube off the outlet to read the level, or fit a float gauge on the manway. Where it freezes, insulate or drain the outlet valve and the first length of pipe; the body takes ice from the top down without harm.

Day-to-day duty

Well storage under a low roof, a rain cistern beside a barn, stock water on a pasture, fertilizer solution and brine at the 1.5 rating, and one cell of a small fire reserve of the kind the fire-water reservoir design guide describes, where the low center of gravity counts. One liquid per tank, labeled.

From the plant to your site

The 32060 ships palletized as LTL freight (NMFC 156600-02) at a class rate; the freight cost estimator quotes it to your ZIP, and what is listed here is the price before freight. A forklift or a pallet jack moves 264 pounds, and at 86 inches across it needs a gate, not a door. Fill it to the manway once, prime the siphon, and check the outlet fitting before it goes to work. Write the fill date on the manway with a paint marker; it answers the first question anyone asks about a tank.
