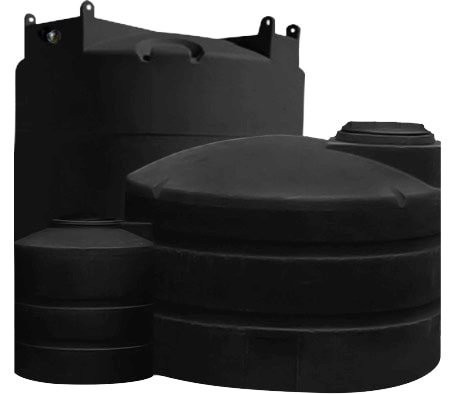

Snyder Industries 1500 Gallon Black Vertical Water Storage Tank

Six tons of water under a barn eave

Full, the WB45 puts 12,510 pounds on an 86 inch circle, and a rotationally molded floor bears on the whole pad, so the pad is what matters: a compacted, screeded gravel base or a slab in full contact, per the concrete pad sizing guide; at 70 inches it sits low enough that no strap is needed. Black polyethylene absorbs the ultraviolet that ages a white wall and passes no light to the liquid, so a black tank outdoors holds water clear for years; it also runs warmer than a white one, which matters for water in a hot climate. The first fill is the acceptance test; the hydrostatic test methodology guide covers the fill discipline, the settlement check and the hold time. The tank sizing calculator tells you whether 1,500 gallons covers the draw, and the tank sizing guide covers days of supply.

Snyder's 1,300 to 1,600 gallon water tanks

The WB46 is the same black low tank with different fittings, and the 32547 the 1,600 gallon step up an inch taller. The 32541 and 32543 stand the same 1,500 gallons on a 65 inch base at 114 inches for a corner with height and no floor, and the 32535 is the 1,300 on a 60 inch base at that height.

Found the 1500 gallon tank in the table? Freight to your ZIP is one click; add it to your cart above, or call 866-418-1777 to check the grade.

Ports and manway

• Inlet: 1-1/2 inch polypropylene female NPT bulkhead fitting.
• Outlet: 2 inch polypropylene female NPT bulkhead fitting, at the base; a flexible connector between the fitting and hard pipe, and the valve supported off the pad.
• Access: 18 inch threaded, vented manway, reached from a step.
• Service limit: 120 F / 48 C.

A 2 inch outlet on a low tank gives a pressure pump a flooded suction to the last few inches; a garden hose runs by gravity but slowly, because there is little head. A black wall shows no level, so fit a float gauge on the manway or a sight tube off the outlet, and a low-level float switch keeps the pump from running dry. In a cold climate the outlet valve and the first run of pipe are insulated or drained; the body takes ice from the top down without harm.

The work it does

Well storage for a house and a garden under a low eave, a rain cistern beside a barn, stock water on a pasture, a haul-in water supply for a cabin, and one cell of a small fire reserve of the kind the fire-water reservoir design guide describes. Several of them are the storage stage of a reuse system for roof water and condensate, per the industrial water reuse tank topology article, where the dark wall keeps the stored water clear.

Freight, in plain terms

The WB45 ships as LTL freight at class 400, the class light, bulky tanks take; the freight cost estimator gives the number for your ZIP; the price shown here is before freight. Two people carry 210 pounds, and at 86 inches across it goes through a gate, not a door. Fill it to the manway once, check both fittings, and set it where the outlet faces the pump, because a low tank is not easily turned once it is full. Check the strap tension a week after the first fill; a tank settles a little, and the strap that was tight is loose.
