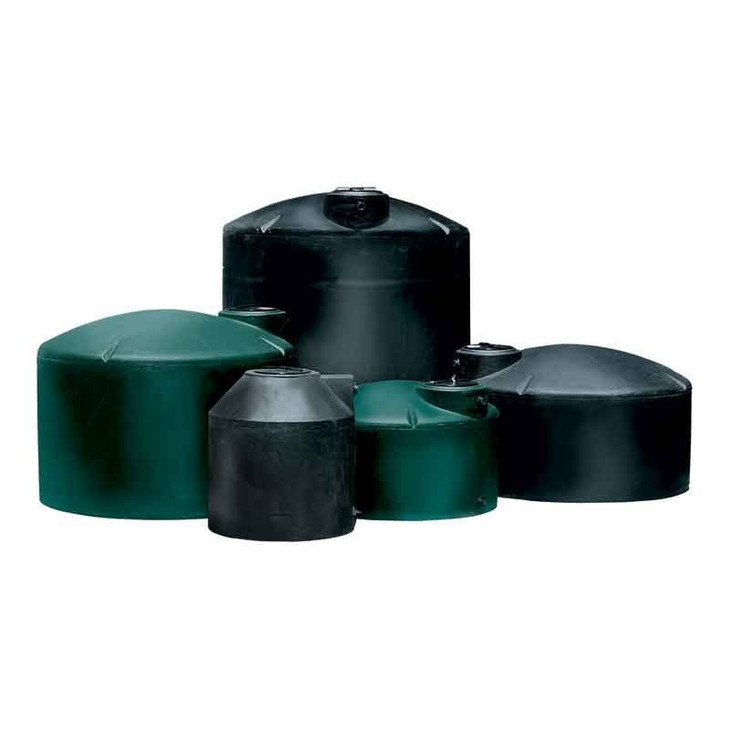

Snyder Industries 1500 Gallon Plastic Vertical Water Storage Tank in Black

Why the bolted outlet matters

The outlet is the fitting that lives under the full head of the tank and gets a pump hung off it. A bolted flange spreads the sealing load around a ring of stainless bolts and can be re-torqued after the wall relaxes on first fill, where a bulkhead depends on one nut staying tight. If the tank will be plumbed to a pressure pump or drained and refilled often, that is the outlet you want. The inlet is a 1-1/2 inch polypropylene female NPT bulkhead, and access is an 18 inch threaded vented manway; keep the vent clear, because a pump emptying 1,500 gallons quickly will otherwise pull the wall inward.

Five ways to hold 1,500 gallons

Read the table as a decision. Under a low roof, the 86 inch tanks are the only 1,500 gallon options, and among them the WB47 carries 60 more pounds of wall than this tank for one more inch of height, which is the heavier-duty choice for a tank that will stay full in sun for years. Where floor space is the limit, the 65 inch tanks hold the same water on a footprint 21 inches narrower and reach 114 inches. The 1,600 gallon 32547 is this footprint with 100 more gallons on an inch more height, and 7 more pounds of resin; it is the natural upgrade when the pad is already sized for 86 inches. The 1,300 gallon 32535 is the budget step down, but on the narrow footprint.

Need a different size? Every tank in the table is in stock programs; ask for a quote on the one that fits, or call 866-418-1777.

The pad

Full, the WB46 weighs 12,510 pounds on an 86 inch circle. A level pad in full contact with the whole floor is the requirement; the concrete pad sizing for above-ground polyethylene tanks guide gives the ACI 360R-10 method and the point at which compacted base stops being enough. Service temperature is 120 F / 48 C, and the black wall blocks the light that grows algae in stored water. Three year warranty. In hot climates the low profile helps here too: a shorter column of water in a wider tank warms and cools more evenly through a day than a tall narrow one, which is easier on both the water and the wall.

Fifteen hundred gallons in use

This is the size of a serious rainwater store and the smallest tank most rural fire plans will accept; the fire-water reservoir design guide shows where 1,500 gallons lands against NFPA 22. In a reuse system it is the collection tank ahead of treatment, per the industrial water reuse topology guide. Match the capacity to your draw with the tank sizing calculator and the tank sizing guide.

Freight, unloading, first fill

LTL freight, NMFC 156600-01, 210 pounds crated at 86 by 86 by 70 inches. The freight cost estimator quotes your ZIP; the listed price is before freight. Two people can handle it empty, and the 70 inch height lets it ride upright inside a covered trailer. Plumb it in place: full-port valve on the bolted outlet, a union between valve and pump, and a float valve or fill line on the top inlet; the manway stays closed except for inspection so nothing falls into stored water. Fill it in stages the first time, watching the pad and every fitting, as laid out in the hydrostatic test methodology guide.
