Snyder Industries 16500 Gallon HDPE Vertical Liquid Storage Tank with ASTM Certification

The tallest tank on the twelve foot base

A 1.35 specific gravity rating is the step between the water wall and the middle grade: alum and most fertilizer solutions come in lighter than that, so this tank carries them with margin at less resin than the heavier grades, and 5,100 pounds is what even the lightest wall takes on a shell twenty-one feet tall. The tank is designed to D1998, and that design is in the thickness of the wall; the HDPE tank wall thickness guide explains the sizing logic and why a wall this tall is inspected from the top, in the headspace, and the freeboard sizing guide works out the usable volume once thermal expansion is accounted for. Full, it puts 192,654 pounds on a 142 inch circle at the rating: a slab designed for the load and in contact with the whole floor, as the concrete pad sizing guide, with the empty tank strapped against wind at two heights and the lid reached from a fixed platform with a rail, never a ladder. The tank sizing calculator tells you whether 16,500 gallons covers the draw, and the tank sizing guide covers days of supply.

Snyder's 15,000 to 20,000 gallon verticals

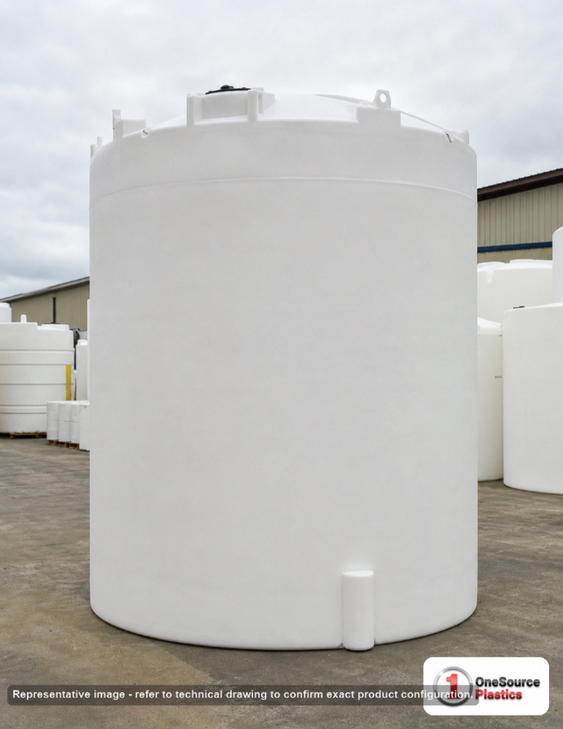

The 5370000N39 is the step down, 15,000 gallons on this base 23 inches lower. The 3030000 tanks stand 18,800 and 20,000 gallons on a 165 inch base at 242 inches, 15 inches lower and wider, for a site with more floor, the N33 in black for sun and the C137 sold without a fitting.

Which wall for your chemical? Call 866-418-1777 with the name and the concentration and we will pick the row.

Manway, outlet, limits

• Access: 18 inch lid, 257 inches up; filled by truck through a dip tube, vented outside on anything that fumes, and size the vent for a tanker's unload rate.
• Outlet: the bulkhead fitting is chosen for the liquid at order time; an expansion joint and a flexible connector between the bulkhead and hard pipe, with the valve carried on the slab.
• Service limit: 120 F / 48 C.
• Snyder line: ASTM.

On a tank this tall nobody reads a level by eye; fit a sender read at ground level, and a float switch for low level protects a pump. Mount the pump below the outlet so it primes by gravity, keep the lid closed against vapor loss, and keep the tank out of direct sun where the liquid is light-sensitive. In a freezing climate insulate or drain the outlet valve and the first run of pipe; the body takes ice from the top down without harm.

Unloading a tanker safely

The driver's pump can deliver faster than the lid vent can breathe, so the vent is sized for the unload rate or the fill goes through a dedicated top bulkhead with its own vent line. The fill pipe runs to the floor so the liquid does not free-fall and foam; on a shell this tall that is a long drop. The first delivery into a new tank is watched from start to finish, with the slab edge and the outlet fitting checked as the level climbs, and from then on each load is logged by date and strength.

Where it earns its keep

Alum and fertilizer solution, three tankers at a time, at plants and farms, well storage for a community system with height and a small pad, and a fire reserve of the kind the fire-water reservoir design guide describes, where twenty-one feet of head gives a pump a flooded suction and a hydrant a start. One liquid per tank, labeled.

Moving it, setting it, filling it

At 142 inches across and 257 inches long on the deck the 5380000N39 is oversize freight (NMFC 156600) on a flatbed at a lane rate, wider and longer than most loads on the road, so the estimator's lane matters; the freight cost estimator prices it for your ZIP, and the listed price is before freight. A crane sets 5,100 pounds upright on the slab; this is not a forklift job. Fill it to the lid once, hold it, and check the outlet fitting. Walk the base after the first hard rain; a pad that shifts shows it at the edge first.
