190 gallons under a bench, with ASTM certification

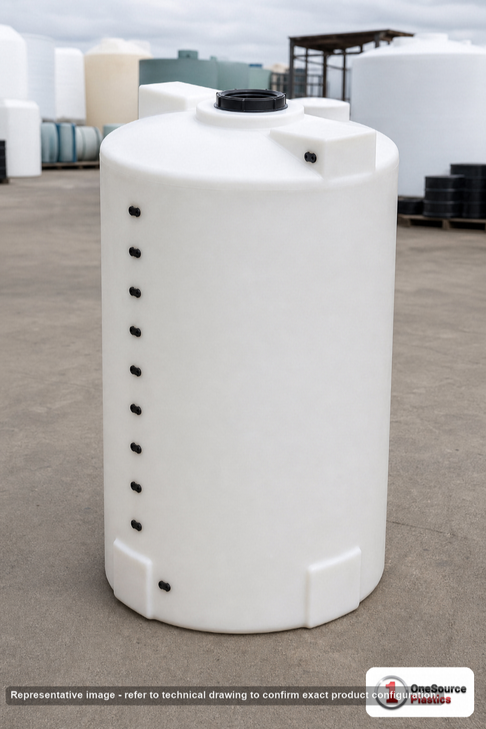

The Snyder 1540400N45 is a squat vertical liquid storage tank: 190 gallons of white polyethylene in a shell 42 inches across and only 47 inches tall, weighing 70 pounds. It carries a 1.9 specific gravity wall, rated for 3,011 pounds of contents against 1,585 for water, it is sold with ASTM certification for jobs that need the paper, and at 47 inches it goes under a bench, a mezzanine or a shelf where the taller tanks of this volume will not. A 10 inch lid on top and a 3 year warranty.
Two ways to buy. Add it to your cart above with freight quoted to your ZIP, or request a written quote for a job that needs paperwork.
Low, stable and certified
A tank barely taller than it is wide cannot tip and keeps a pump suction flooded to the last few inches; the cost is a 42 inch circle of floor in full contact with a level base, carrying up to 3,011 pounds at the rating, which a paver pad or a slab supports; the concrete pad sizing guide covers a shared slab. The certification is against ASTM D1998, the standard rotationally molded polyethylene tanks are specified to, and the way a tank meets it is in the wall; the HDPE tank wall thickness guide walks through the D1998 sizing logic and why a wall fails first in the vapor headspace. The tank sizing calculator sizes a day tank to the pump's rate and the refill schedule, and the tank sizing guide covers the reserve to carry.
Squat and tall between 175 and 200 gallons
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|
| 1540400N45 (this tank, ASTM certified) | 190 | 42 x 47 in | 70 lb |
| 1540400N42 (XLPE) | 190 | 42 x 47 in | 60 lb |
| 1540400N48 | 190 | 42 x 47 in | 60 lb |
| 1008400N45 (narrow) | 175 | 29 x 66 in | 60 lb |
| 1008000C26 | 200 | 36 x 53 in | 65 lb |
The N42 is the cross-linked twin for oxidizers, 10 pounds lighter, and the N48 is another resin option at the same weight. The 1008400N45 is the narrow answer, 175 gallons on a 29 inch base at 66 inches, for the gap between two pumps. The 1008000C26 is the general 200 gallon tank on a 36 inch base at 53 inches.
Torn between two rows? Call 866-418-1777 with the liquid and the ceiling height, or ask for a quote on both and compare the freight.
Openings as shipped
- Access: 10 inch lid; filled by hose or tote pump, not poured.
- Outlet: the bulkhead fitting is chosen for the chemical at order time; a flexible connector to the pump suction, with the valve carried by a bracket rather than the fitting.
- Service limit: 120 F / 48 C.
- Listing: ASTM certification.
A 47 inch white tank shows its level in daylight, and a float switch for low level is usually enough in a pump room. The dosing pump sits below the outlet so it primes by gravity, and route the vent outside on anything that fumes. Close the lid to stop vapor loss, and keep a light-sensitive chemical out of direct sun.
In service
Under-bench day tanks in a plant lab, hypochlorite and caustic feed at small water systems, acid and inhibitor feed at a cooling tower, brine for a softener, and a reagent tank on a pilot skid where the certification has to be on file. One chemical per tank, labeled, and refilled on a schedule the chemistry tolerates; a squat tank is cleaned in minutes through the lid with a wand.
Freight and unloading
The 1540400N45 ships palletized as LTL freight (NMFC 156600-02) at a class rate; the freight cost estimator shows the lane to your ZIP; the listed figure is the price before freight. One person carries 70 pounds. Water-fill it once to the lid, check the outlet fitting, and keep the certification paperwork with the project file. The first fill is the only cheap time to find a problem, so do it in daylight with someone watching the base.
Freight and documents
Ships from: Merced, CA. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.

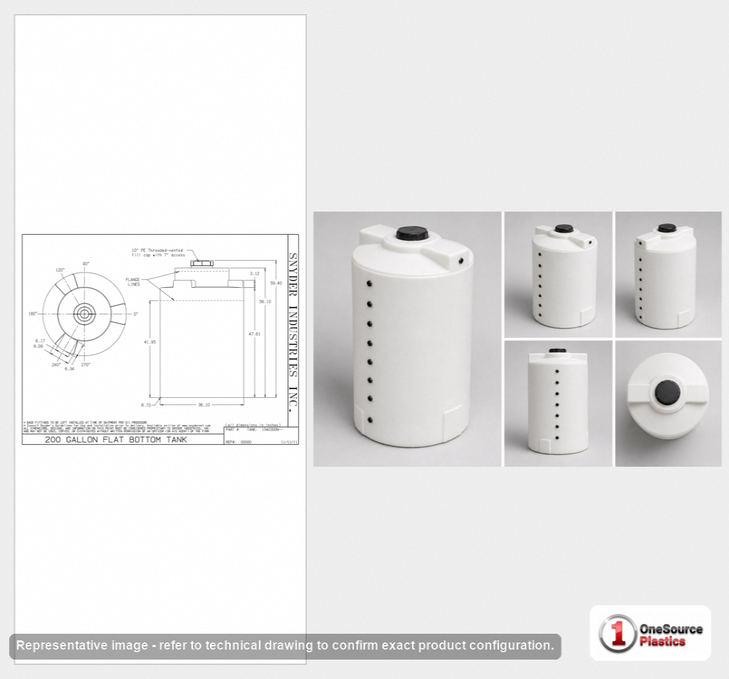

Technical drawing (PDF) for Snyder Industries 1540400N45.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the Snyder Industries 190 Gallon HDPE Vertical Liquid Storage Tank with ASTM Certification video (67 seconds) with dimensions, fittings and shipping notes.
