4,100 gallons at 1.5 specific gravity, with a siphon outlet

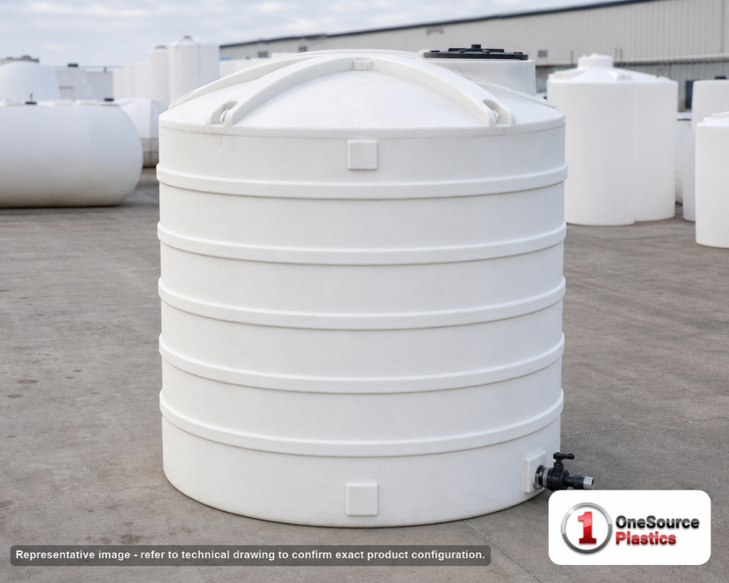

The Snyder 32319 holds 4,100 gallons of liquid in a white high density linear polyethylene shell 102 inches across and 130 inches tall, weighing 847 pounds. Its wall is rated for a specific gravity of 1.5, or 51,291 pounds of contents against 34,194 for water, and its outlet is a 3 inch polypropylene female NPT bulkhead fitting with a 2 inch reducer siphon tube that draws from the floor through a fitting mounted higher on the wall, so the tank sits flat in a containment basin and still empties completely. A 20 inch threaded, vented manway on top.
Ready to price it? The listed price is before freight; quote freight to your ZIP in a few seconds, then add to cart above or call 866-418-1777.
Pad, straps, siphon
Full, the 32319 loads a 102 inch circle to 51,291 pounds at the rating: an engineered slab in full contact under the whole floor, level enough that 130 inches of tank stands plumb. Empty, 847 pounds with that side area is a sail, so strap it before the first fill. The siphon outlet is the reason to choose it over the 7360000 tanks of the same shape: it lets the tank stand in a basin or on a deck with no clearance underneath and still drain to the last few inches, though it needs a pump or a prime rather than gravity. Look up the density of the liquid at the concentration you buy; under 1.5, this is the right wall. The tank sizing calculator and the tank sizing guide settle the volume against the delivery interval.
The 102 x 130 inch tanks and the low profile alternatives
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|
| 32319 (this tank, 1.5 SG, siphon outlet) | 4,100 | 102 x 130 in | 847 lb |
| 7360000C34 | 4,100 | 102 x 130 in | 850 lb |
| 7360000N46 | 4,100 | 102 x 130 in | 850 lb |
| 7421100N40 (low profile) | 4,000 | 120 x 104 in | 810 lb |
| 7421100C34 (low profile) | 4,300 | 120 x 104 in | 850 lb |
The 7360000 tanks are the same shell at 3 more pounds with a conventional bottom outlet, for the pad that gives clearance under the fitting. The 7421100 tanks put 4,000 to 4,300 gallons on a 120 inch base at 104 inches, 26 inches shorter on a pad 18 inches wider, for the room with a low ceiling.
Want us to check the fit? Send the site dimensions to 866-418-1777 or through a written quote request and we will confirm the tank, the pad and the freight.
Ports
- Outlet: 3 inch polypropylene female NPT bulkhead fitting with a 2 inch reducer siphon tube to the floor; a flanged transition, an expansion joint, and a valve supported off the slab. A siphon outlet needs a pump or a prime; it does not gravity-drain below the fitting.
- Access: 20 inch threaded, vented manway, 130 inches up; a hydrostatic sender at the outlet for level.
- Service limit: 120 F / 48 C.
Fill through a dip tube so dense liquid does not free-fall and foam, keep the vent clear so a fast draw cannot pull a vacuum on the wall, and prove the siphon draws to the floor on the water test. The day tanks that usually stand beside a bulk tank like this are covered in the 2,000 gallon vertical tank buyers guide.
Where you will find one
Liquid fertilizer and brine at a co-op, dilute treatment chemicals at a plant with a containment basin, and bulk water where a heavier wall is wanted outdoors; with water in it, a fire reserve sized under NFPA 22 as the fire-water reservoir design guide describes. In a freezing climate a solution expands against a wall not designed for ice; house the tank or keep it above freezing.
Shipping the tank
At 102 inches across and 130 inches long on the deck the 32319 is oversize freight (NMFC 156600) on a flatbed at a lane rate; the freight cost estimator prices it for your ZIP, and the listed price is before freight. A forklift with long forks or a small crane sets 847 pounds on the slab. Strap it, water-fill with a hold, drain through the siphon to prove it, and check the fitting before the product goes in. Walk the base after the first hard rain; a pad that shifts shows it at the edge first.
Freight and documents
Ships from: Merced, CA; Albertville, AL. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 32319.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
