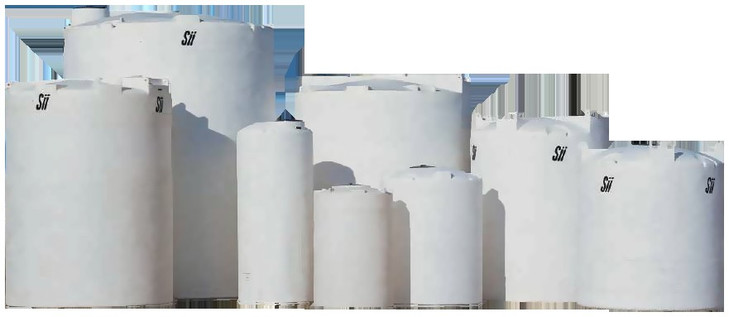

Snyder Industries 3500 Gallon HDPE Vertical Liquid Storage Tank in White

The heavy wall at 3,500 gallons

A 1.9 specific gravity wall is sized for a liquid nearly twice as dense as water, the class ferric chloride at strength and the heavy brines fall in, and the wall is sized under ASTM D1998; the HDPE tank wall thickness guide explains that logic and why a tall wall is inspected in the headspace. A siphon tube outlet draws from the floor through a fitting set higher on the wall, which keeps the bulkhead out of the sediment; prime it once and it stays primed. Full, it puts 55,461 pounds on a 96 inch circle at the rating, which a slab in full contact carries, and the empty tank is strapped against wind. The 2,000 gallon tall tank guide and the 500 gallon vertical tank guide cover the smaller size classes; the tank sizing calculator sizes the tank to feed rate and delivery interval, and the tank sizing guide covers the reserve.

Snyder's 3,000 to 3,650 gallon verticals

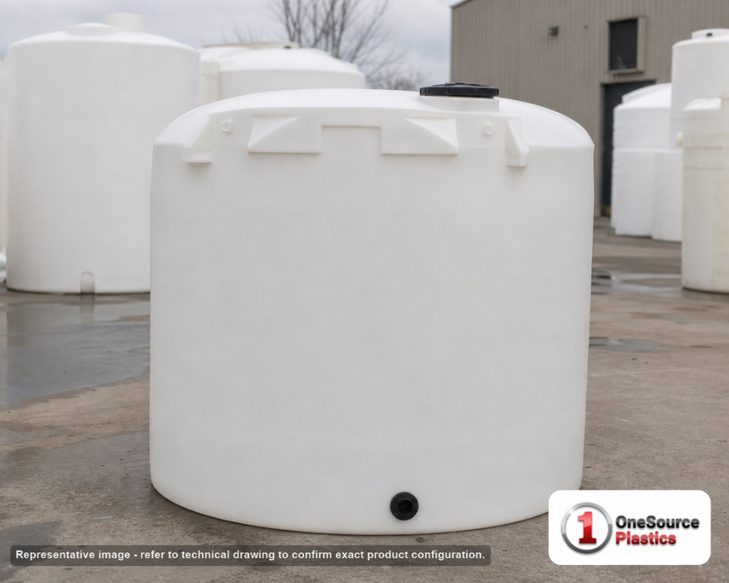

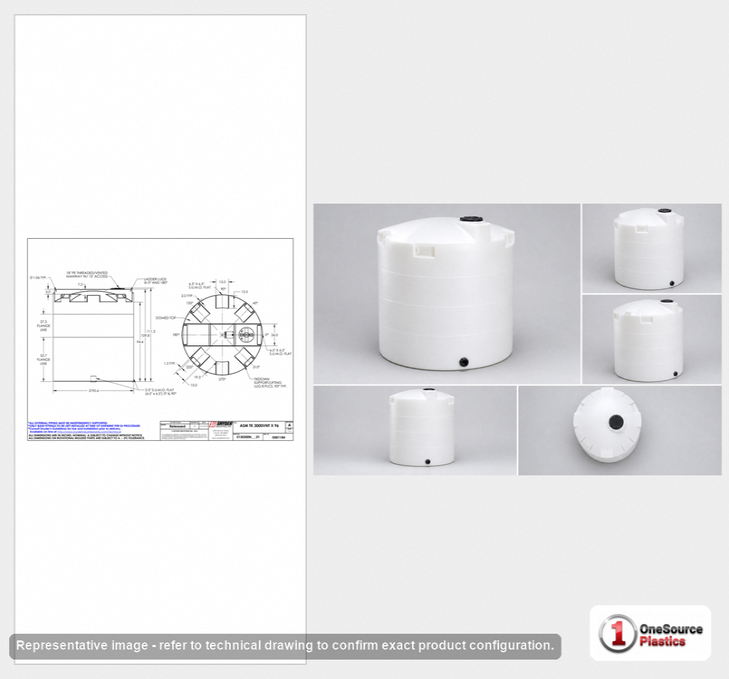

The 32288 is the same shell an inch taller in the general grade. The 8160000C26 and 5130000C34 stand 3,000 gallons on a 90 inch base at 127 inches, the first with this same 1.9 wall and a 3 inch outlet; the 32259 lays 3,000 gallons of the 1.9 wall down to 97 inches for a low roof; and the 8190000C26 holds 3,650 gallons on a 102 inch base at 126 inches.

Picked the 3500 gallon tank? Add it to your cart above; freight is quoted to your ZIP before you pay anything.

Outlet and manway

• Outlet: 2 inch polypropylene female NPT bulkhead fitting with an internal siphon tube; a flexible connector between the bulkhead and hard pipe, and the valve supported off the pad.
• Access: 20 inch threaded, vented manway, 124 inches up; filled through a dip tube, vented outside on anything that fumes.
• Service limit: 120 F / 48 C.

A siphon outlet needs the pump or the gravity line below the tank floor to stay primed, and a foot of drop is enough; if the line ever runs dry, refill the tank above the fitting and open the valve to re-prime. The white wall shows the level in daylight; fit a sender read at ground level so nobody climbs for a number. On a chemical, choose the sender for the liquid, keep the manway closed against vapor loss, and shade the tank where the chemical is light-sensitive.

Inspecting a tall wall

A polyethylene wall ages first in the headspace, where vapor and sunlight reach it, so the annual look is from a platform with the manway open and a light on the top third, watching for crazing and chalk. The outlet fitting and the flexible connector are checked at every fill, because that is where a tank this heavy moves as the level changes, and a siphon line that has lost its prime is the first thing to suspect when the flow drops.

Who buys this tank

Ferric and other dense coagulants at a plant with a berm, heavy brine for a softener bank, fertilizer concentrate on a farm, and water where the buyer wants the heaviest wall for a long life outdoors, including a fire reserve of the kind the fire-water reservoir design guide describes. One liquid per tank, labeled.

Delivery day

At 96 inches across and 124 inches long on the deck the 32292 is oversize freight (NMFC 156600-01) on a flatbed at a lane rate; the freight cost estimator prices the lane to your ZIP; the figure listed here is before freight. A forklift with long forks sets 550 pounds on the pad. Strap it, fill it to the manway once, prime the siphon, and check the outlet fitting before it goes to work. Keep the delivery paperwork with the tank; the serial number on the shell is what a warranty claim starts from.
