3,900 gallons at 1.5 specific gravity on a 90 inch base, ASTM certified
The Snyder 5190000N43 is a white polyethylene vertical liquid storage tank, 90 inches across and 163 inches tall, holding 3,900 gallons at 900 pounds. Its wall is rated for a specific gravity of 1.5, or 48,789 pounds of contents against 32,526 for water, so it holds brine, fertilizer solution and coagulant as delivered as well as water, it is sold with ASTM certification for jobs that need the paper, and the seven and a half foot base puts most of a tanker load on a pad smaller than the tanker. On top, an 18 inch threaded, vented manway; behind it, a 3 year warranty; on the road, oversize freight.
Buying on a purchase order? Request a written quote and we will return it with freight to your ZIP; card buyers add the 3900 gallon tank to the cart above.
The middle wall, certified, on the small pad
A water-rated wall is for water and nothing heavier; the chemical wall is what concentrated acid needs; a 1.5 wall is the middle, sized for brine, fertilizer solution and coagulant as delivered and every water application, with margin, and 900 pounds of resin is what that takes on a tank thirteen and a half feet tall. The certification is against ASTM D1998, and the way a tank meets it is in the wall; the HDPE tank wall thickness guide explains the sizing logic and why a tall wall is inspected in the headspace. Full, it puts 48,789 pounds on a 90 inch circle at the rating: an engineered slab in full contact under the whole floor, per the concrete pad sizing guide, the empty tank tied down against wind and the manway served by a fixed platform. The tank sizing calculator tells you whether 3,900 gallons covers the draw, and the tank sizing guide covers days of supply.
Grades on the 90 x 163 inch tank, and the sizes beside it
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|
| 5190000N43 (this tank, 1.5 SG, ASTM certified) | 3,900 | 90 x 163 in | 900 lb |
| 5190000N45 (1.9 SG, ASTM certified) | 3,900 | 90 x 163 in | 1,200 lb |
| 5190000N40 (XLPE) | 3,900 | 90 x 163 in | 900 lb |
| 5190000N46 | 3,900 | 90 x 163 in | 900 lb |
| 5190000N48 (heavy wall) | 3,900 | 90 x 163 in | 1,200 lb |
| 8190000C26 | 3,650 | 102 x 126 in | 790 lb |

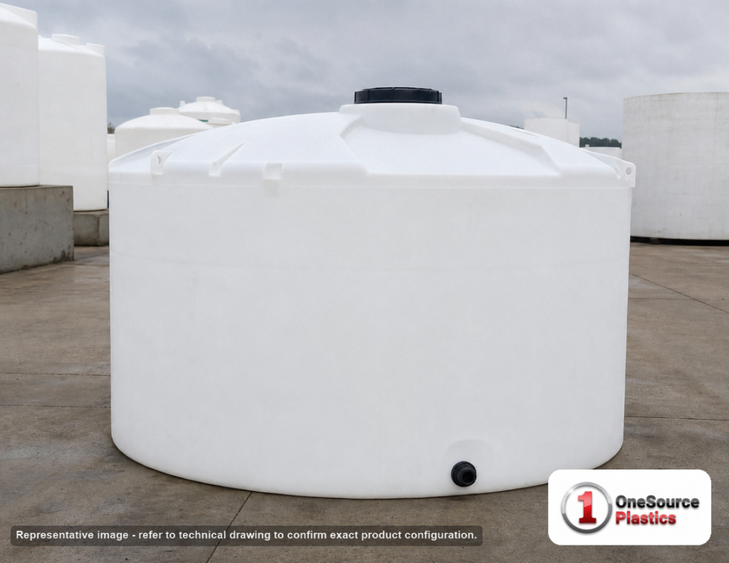

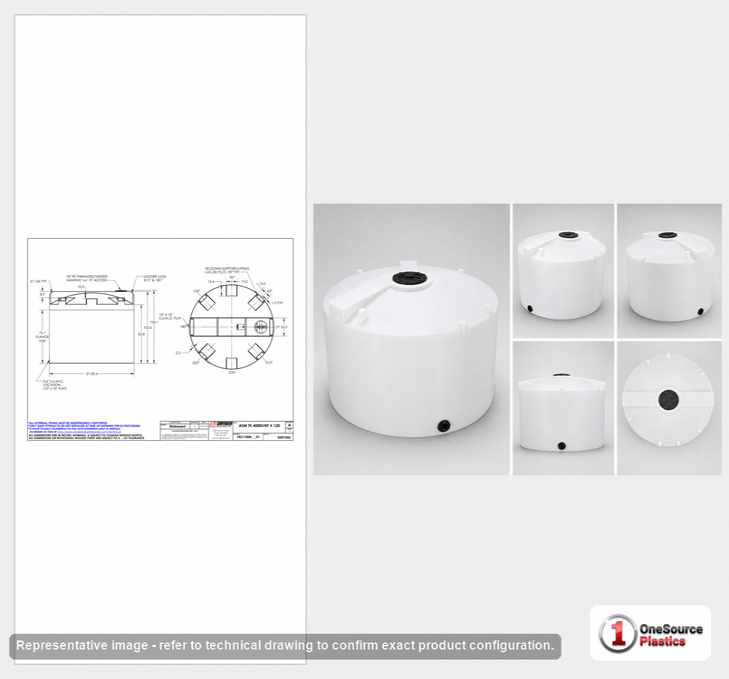

| 7421100N45 (low profile, 1.9 SG, ASTM certified) | 4,000 | 120 x 100 in | 1,000 lb |
The N45 is the certified 1.9 wall, 300 pounds heavier, for ferric at strength and the heavy brines; the N40 is cross-linked polyethylene for oxidizers and the N46 another linear grade at this tank's weight, and the N48 the heavy-wall linear tank. The 8190000C26 holds 3,650 gallons on a 102 inch base 37 inches shorter, and the 7421100N45 lays 4,000 gallons down to 100 inches on a 120 inch base for a low roof.
Ready to choose a row? Add the 3900 gallon tank to your cart above with freight quoted to your ZIP, or 866-418-1777 will confirm it against the site first.
Fittings and access
- Access: 18 inch threaded, vented manway, 163 inches up; filled by truck through a dip tube, vented outside on anything that fumes, and size the vent for a tanker's unload rate.
- Outlet: name the liquid when ordering so the bulkhead fitting matches it; flex at the bulkhead, an expansion joint after it, and the valve braced off the slab so the fitting carries nothing.
- Service limit: 120 F / 48 C.
- Listing: ASTM certification.
The white wall shows the level in daylight; fit a sender read at ground level so nobody climbs for a number, and a float switch at low level shuts the pump off before it runs dry. The pump sits below the outlet so it primes by gravity; the manway stays closed; a light-sensitive liquid stays out of the sun. If winters freeze, wrap or drain the outlet valve and the first pipe run.
The first delivery
The driver's pump can deliver faster than the manway vent can breathe, so the vent is sized for the unload rate or the fill goes through a dedicated top bulkhead with its own vent line. Run the fill pipe to the floor so the liquid does not free-fall and foam. Nobody walks away during the first fill: the slab edge and the outlet fitting are checked as the level climbs, and every delivery after that goes in the log with a date and a strength.
Jobs it is bought for
Coagulant, brine and fertilizer solution delivered by tanker at plants and farms that need the certification on file and have a small pad, well storage, and a fire reserve of the kind the fire-water reservoir design guide describes. One liquid per tank, labeled.
What the carrier needs from you
At 90 inches across and 163 inches long on the deck the 5190000N43 is oversize freight (NMFC 156600) on a flatbed at a lane rate; the freight cost estimator gives the flatbed number for your ZIP, and the listed price is before freight. A crane or a forklift with long forks sets 900 pounds on the slab. Strap it, fill it to the manway once, hold it, check the outlet fitting, and keep the certification paperwork with the project file. Note the pad height and the outlet height on the site plan while the tape is out; the next pipe run will need both.
Freight and documents
Ships from: Lincoln, NE. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 5190000N43.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the Snyder Industries 3900 Gallon HDPE Vertical Liquid Storage Tank with ASTM Certification video (71 seconds) with dimensions, fittings and shipping notes.
