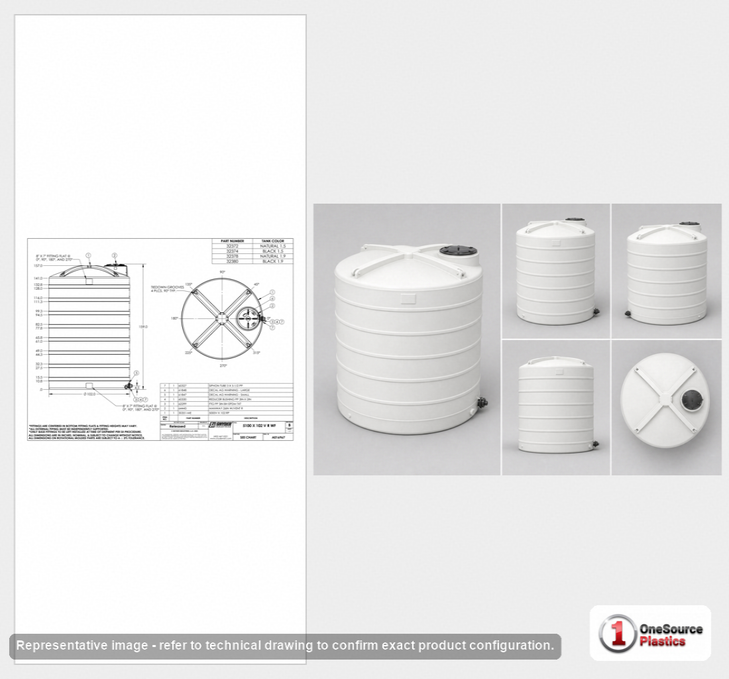

Snyder Industries 5500 Gallon HDPE Vertical Liquid Storage Tank with ASTM Certification

The full-density wall at a tanker and a reserve

A 1.9 specific gravity wall is sized for a liquid nearly twice as dense as water, and 1,450 pounds of resin is the heaviest wall on this base. The certification is against ASTM D1998; the HDPE tank wall thickness guide explains the sizing logic and why a tall wall is inspected in the headspace, and the freeboard sizing guide works out the usable volume once thermal expansion, which is large for a dense chemical, is accounted for. Full, it puts 87,153 pounds on a 120 inch circle at the rating: a designed slab that touches every inch of the floor, following the concrete pad sizing guide, inside a berm sized to the tank, a wind strap on the empty tank, and access to the manway from a short platform. The tank sizing calculator sizes the volume to feed rate and delivery interval, and the tank sizing guide covers the reserve.

Grades on the 120 x 132 inch tank, and the sizes beside it

The N40 and N42 are cross-linked polyethylene for oxidizers and the N46 is another linear grade, all lighter in the wall. The 7000400C26 and 5250000N40 lay 5,400 and 5,600 gallons down on a 142 inch base at 91 and 102 inches, for a site with floor and no height.

Other makers in the running? 866-418-1777 will compare them honestly; Norwesco, Snyder, Chem-Tainer, Enduraplas and Bushman are all here, or price freight on this one.

Openings as shipped

• Access: 18 inch threaded, vented manway, 132 inches up; a dip tube for the fill, an outdoor vent on acid and caustic, and vent capacity to match the tanker.
• Outlet: the bulkhead fitting is chosen for the chemical at order time; a flanged transition, an expansion joint, and a valve supported off the slab.
• Service limit: 120 F / 48 C.
• Listing: ASTM certification.

Pick a level sender rated for the chemical and bring its reading to ground level, so the number never needs a climb; keep the manway shut against vapor loss and shade a light-sensitive chemical. Put a regulated chemical in a single wall tank and the berm around it has to hold all of it. In a freezing climate insulate or drain the outlet valve and the first run of pipe.

Unloading without a spill

The truck's pump outruns the manway vent, so size the vent for the unload rate or give the fill its own top bulkhead and vent line. Run the fill pipe to the floor so caustic or coagulant does not free-fall and foam. Diluting a dense chemical makes heat, so a batch is built water first and chemical second, never the reverse. The first tanker into a new tank is a supervised job, slab edge and outlet fitting checked as it fills, and from then on each load is logged by date and strength.

In service

Ferric and other dense coagulants at a plant with a berm and a lower roof, heavy brine at plant scale, dense process chemicals delivered by tanker, and water where the buyer wants the heaviest certified wall, including a fire reserve of the kind the fire-water reservoir design guide describes. One liquid per tank, labeled for both inspectors at once.

Freight and unloading

At 120 inches across and 132 inches long on the deck the 7000000N45 is oversize freight (NMFC 156600) on a flatbed at a lane rate; the freight cost estimator prices the move to your ZIP, and the price on this page is before freight. A crane or a forklift with long forks sets 1,450 pounds on the slab. Water-fill it once to the manway, hold it, then drain and dry before the chemical connection is made, and keep the certification paperwork with the project file. The first fill is the only cheap time to find a problem, so do it in daylight with someone watching the base.
