Snyder Industries 850 Gallon HDPE Vertical Liquid Storage Tank

Tall, narrow and strapped

A 48 inch base under 117 inches of dense liquid has a high center of gravity, so this tank is strapped to a wall or to anchors as a matter of course, and its manway is a step-ladder reach. In return it stores 850 gallons on a footprint smaller than a pallet and keeps a pump suction flooded with a tall column. Full, it puts 13,469 pounds on a 48 inch circle at the rating; a slab, a paver pad or compacted gravel in full contact supports that, and the concrete pad sizing guide covers a shared slab. A tall polyethylene wall fails first in the vapor headspace, which is why the HDPE tank wall thickness guide tells operators to inspect above the liquid line. The 850 gallon vertical tank buyers guide compares the class; the tank sizing calculator and the tank sizing guide settle the volume.

Resins on the 48 x 117 inch shell

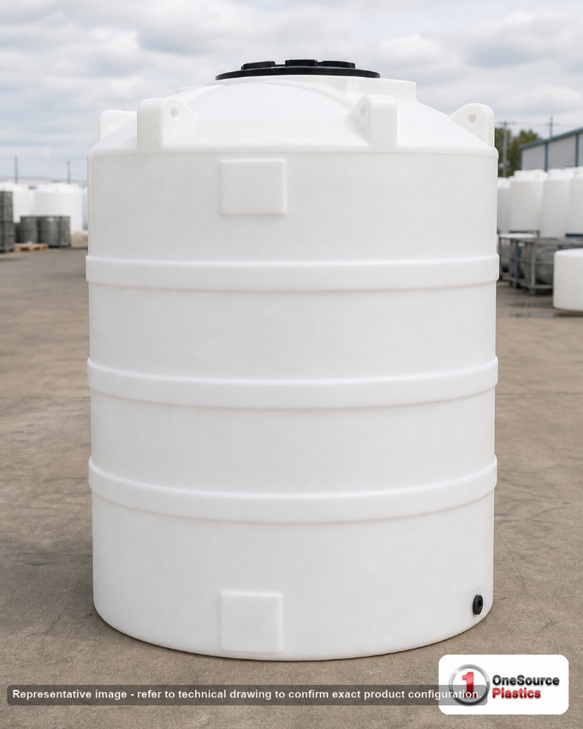

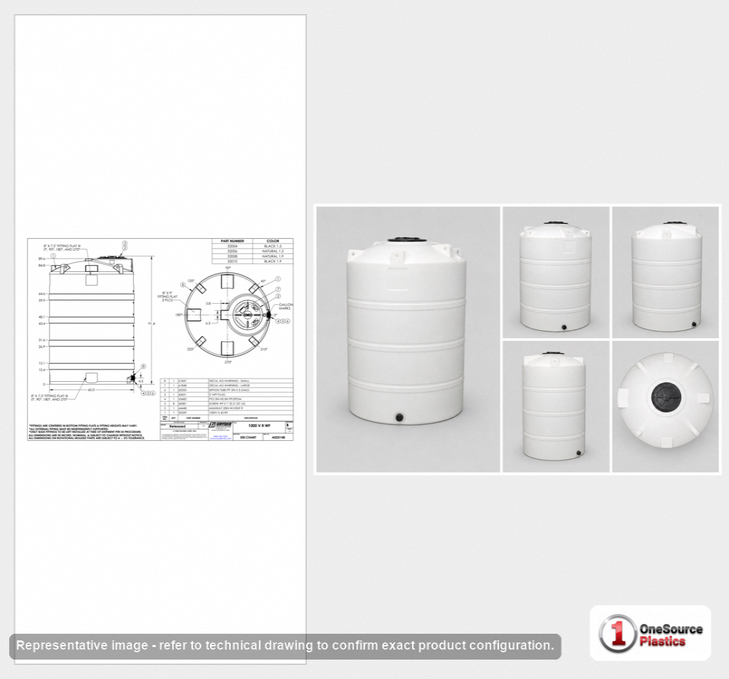

The N42 is the cross-linked polyethylene version, 10 pounds heavier, for oxidizers and warm liquids; the N48 is another resin option at the same weight. The 32445 is the 750 gallon tank on the same base, 11 inches shorter, with a siphon outlet for a spill pallet. The 1831000C34 puts 1,000 gallons on a 60 inch base at 89 inches for the site with a little more floor.

Not sure which one? Tell us the liquid, the site and the ceiling height at 866-418-1777, or request a written quote with freight to your ZIP.

Openings as shipped

• Outlet: 2 inch polypropylene female NPT bulkhead fitting at the bottom of the sidewall, factory installed; a PVC or CPVC adapter with a compatible sealant, a flexible transition, and a valve supported off the floor.
• Access: 18 inch threaded, vented manway, 117 inches up.
• Service limit: 120 F / 48 C.

Nearly ten feet of head over a 2 inch outlet floods a pump suction or gives a transfer line real gravity flow. A white tank shows its level in daylight; in a pump room, a sight tube off the outlet. Fill through a dip tube so dense liquid does not splash the lid, and keep the vent clear so a fast draw cannot pull a vacuum on the wall.

In service

Brine for a softener, fertilizer on a small farm, treatment chemicals at a small system, and water where a thick wall is wanted outdoors; with water in it, a well buffer, a rain cistern, or one cell of the fire reserve the fire-water reservoir design guide describes. In a freezing climate a solution expands against a wall not designed for ice; house the tank or keep it above freezing.

Freight and unloading

The 1810000C26 ships palletized as LTL freight (NMFC 156600) at a class rate; the freight cost estimator shows it for your ZIP, and the listed price is before freight. Two people carry 210 pounds through a door. Strap it before it is filled, water-fill to the manway with a hold, and check the outlet fitting before it goes into service. The first fill is the only cheap time to find a problem, so do it in daylight with someone watching the base.
