750 gallons of chemical storage through a 48 inch door
The Snyder 32445 is a white polyethylene vertical chemical storage tank, 48 inches across and 106 inches tall, holding 750 gallons at 192 pounds. Its wall is rated for a specific gravity of 1.9, or 11,884 pounds of contents against 6,255 for water, so it holds concentrated treatment chemicals in a footprint that goes through a double door and stands in the corner of a feed room. The outlet is a 2 inch polypropylene female NPT bulkhead fitting with a siphon tube that draws from the floor through a fitting mounted higher on the wall, so the tank sits flat on a spill pallet and still empties completely; a 20 inch threaded, vented manway on top.
Ready to price it? The listed price is before freight; quote freight to your ZIP in a few seconds, then add to cart above or call 866-418-1777.
The tall bulk tank for a small feed
Seven hundred and fifty gallons is three totes, delivered on a schedule and drawn down by a dosing pump, and the 48 by 106 inch shape puts that volume on a footprint smaller than a pallet with nine feet of column to keep the pump suction flooded. The siphon outlet lets the tank stand in a spill pallet or a basin with no clearance under the fitting, at the cost of needing a pump or a prime rather than gravity. The list below is the resin's rated chemistry; check the liquid at its concentration in the chemical compatibility database, because weight rating and chemical resistance are separate properties. The two 750 gallon vertical tank buyers guides (48 x 103 inch guide) compare the tall shapes at this volume, and the tank sizing calculator sizes the volume to feed rate and delivery interval.
Tall and low between 710 and 850 gallons
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|
| 32445 (this tank, siphon outlet) | 750 | 48 x 106 in | 192 lb |
| 5990900N42 (low profile, XLPE) | 750 | 68 x 66 in | 155 lb |
| 1700200N42 (XLPE) | 710 | 60 x 68 in | 185 lb |

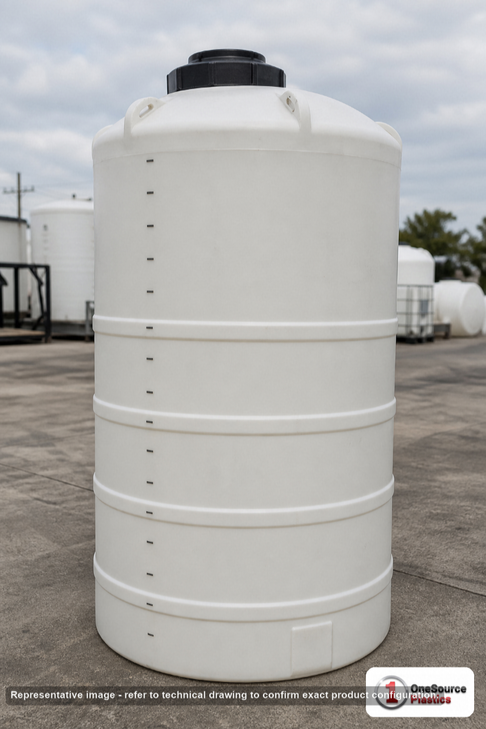

| 1810000C26 | 850 | 48 x 117 in | 210 lb |
| 1810000C34 | 850 | 48 x 117 in | 210 lb |
The 5990900N42 lays the same 750 gallons under a 66 inch ceiling on a 68 inch base, in cross-linked polyethylene for oxidizers, and the 1700200N42 is the cross-linked 710 at 68 inches. The 1810000 tanks stack 100 more gallons on this same 48 inch base at 117 inches, with a conventional bottom outlet. The 32445 is the one for the narrow corner and the spill pallet.
Want us to check the fit? Send the site dimensions to 866-418-1777 or through a written quote request and we will confirm the tank, the pad and the freight.
Openings, instruments, containment
- Outlet: 2 inch polypropylene female NPT bulkhead fitting with an internal siphon tube to the floor; a PVC or CPVC adapter, a flexible transition, and a valve supported off the floor. A siphon outlet needs a pump or a prime; it does not gravity-drain below the fitting.
- Access: 20 inch threaded, vented manway, 106 inches up; a step-stool reach, vented outside on anything that fumes.
- Service limit: 120 F / 48 C.
Choose the level sender for the chemical with the level gauge selection guide; a white 106 inch tank shows its level in daylight, and a float switch for low level is usually enough in a pump room. Strap the tank to a wall; a 48 inch base under 106 inches of dense liquid has a high center of gravity. A 48 inch tank fits a standard spill pallet, and the Snyder Captor 110 percent containment comparison covers when a double wall tank is the cleaner answer. The tank sizing guide covers the reserve to carry between deliveries.
Turnover and changeover
Size the delivery schedule so the tank turns over before the chemical degrades; hypochlorite in particular is bought in small lots often, and a tank sized for a season wastes chlorine. Mount the dosing pump below the outlet so it primes by gravity, put a union and a check valve in the line, and give the vent a line routed away from the pump's electrical gear. When the tank changes product, drain through the siphon, rinse, drain again, and let it dry before the new fill; residue from the last product is the usual cause of a cloudy first batch.
Typical duty
Hypochlorite, caustic and coagulant storage at small water and wastewater systems, acid and inhibitor feed at cooling towers, polymer make-down on a skid, and reagent storage on a pilot plant. One chemical per tank, labeled, manway closed against vapor loss, and the tank out of direct sun where the chemical is light-sensitive.
Freight to your ZIP
The 32445 ships palletized as LTL freight (NMFC 156600-02) at a class rate; the freight cost estimator shows it for your ZIP, and the listed price is before freight. Two people carry 192 pounds through a door. Strap it, water-fill to the manway and hold it, drain through the siphon to prove it, then dry before the chemical connection is made. A photo of the tank on its pad, full, on day one is worth keeping; it is the baseline every later inspection is compared against.
Rated chemistries for this tank
The manufacturer lists these liquids for this resin at the concentrations noted, with the fitting and gasket material to specify. Check the concentration and temperature you actually run on the linked page or in the chemical compatibility database before ordering.
Freight and documents
Ships from: Merced, CA; Albertville, AL. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 32445.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the Snyder Industries 750 Gallon Plastic Vertical Chemical Storage Tank in White video (81 seconds) with dimensions, fittings and shipping notes.
