220 Gallon Plastic Water Storage Tank

Where the low 220 goes

At 44 inches tall, this tank goes where most 200 gallon tanks will not: under a deck or a porch roof as a rain reserve, in the back of a van or a covered trailer as a hauling tank, in a low crawl space or utility shed as a household reserve, beside a greenhouse bench where you want to fill from a hose without a step, and on a flatbed as a nurse tank that stays under the height limit. The 42 inch base is as wide as the tank is tall, which is why it is steady empty and gentle on the ground full; the weight of 1835 lb is spread over a wide circle rather than concentrated on a narrow one. What the low shape gives up is head: with less than four feet of water over the outlet, a gravity line from this tank runs slowly, so anything that needs flow wants a pump at or below the outlet. It needs a flat, level, continuous surface under the whole 42 inch floor, and on a vehicle it must be strapped to the deck rather than left to friction. Check the volume against your real draw with the tank sizing calculator and set the reserve from the tank sizing guide. Where the tank is a stage in a rainwater or grey water train, the water reuse tank topology guide covers the sequencing; for a rural fire reserve, the fire water reservoir design guide explains how the volume is set.

Openings and fittings

1. Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the wall. A 2 inch valve, camlock or hose adapter threads straight in, and a 2 inch drain empties the tank quickly. Support the valve and the first length of hose so the fitting carries water, not hardware.
2. Inlet. A 1-1/2 inch polypropylene female NPT bulkhead fitting for the fill line or the overflow. Run an overflow to daylight away from the base.
3. Lid. A 5 inch threaded vented lid on top. It vents the tank as it fills and drains and takes a hose for a top fill; it is not a manway you can reach into, so clean through the openings or with a wand. If you need to get a hand inside, the 250 gallon tank in this family carries a full manway.

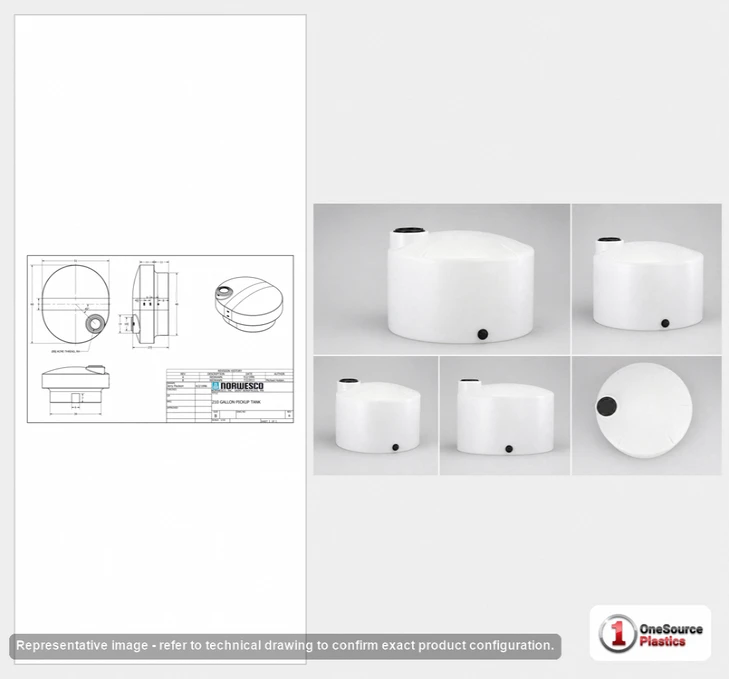

4. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the fitting positions and the lid location.

Sizes and colours nearby

This tank also comes in dark green, part number 43872, and as the green California-only version, part number 43874, on the same 42 by 44 inch shell. One size down is the 200 gallon green California-only tank; one size up is the 250 gallon vertical water tank, a taller tank on a narrower circle with a manway on top. The colour swatches above the price switch between the versions of this tank.

Shipping and receiving

The tank ships LTL from the nearest of Norwesco's plants at Fairfield, Texas; Griffin, Georgia; Hanford, California; Owego, New York; or Shawnee, Oklahoma, 42 by 42 by 44 inches on a pallet at a ship weight of 60 lb. Five plants means a short lane for most of the country, and the lane is most of the freight cost on a tank this light. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, or request a written quote. For a permanent base, the concrete pad sizing guide has the framework. At the tailgate, check the part number against 43870 on the bill of lading and look at the wall and both fittings for transit damage. Fill it with water the first time and hold it a day before it goes into service; the water fill acceptance test guide explains what to look for at the fittings.

Questions before you order? Call 866-418-1777.
