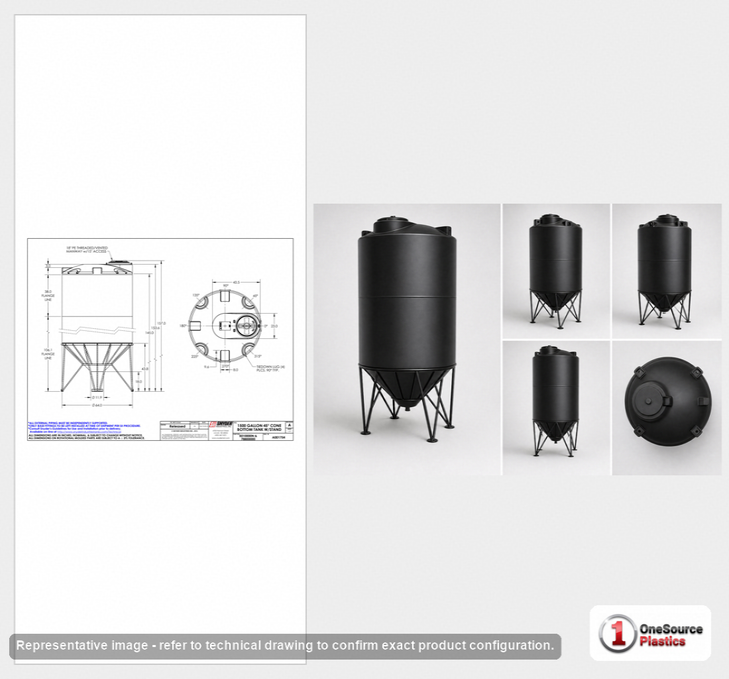

Snyder Industries
SKU: SII-5070000N51
Snyder Industries 2000 Gallon Heavy Duty Cone Bottom Tank
$5,849.00 -
Snyder Industries
SKU: SII-5070000N45
2000 Gallon 30 Degree HDPE Cone Bottom Tank in White
$5,851.16 -
-
Chem-Tainer
SKU: TC4260CB
Chem-Tainer 350 Gallon 20 Degree Plastic Vertical Cone Bottom Tank
$6,077.54 -
Snyder Industries
SKU: SII-5070000N48
Snyder Industries 2000 Gallon XLPE Heavy Duty Cone Bottom Tank
$6,079.00 -
Snyder Industries
SKU: SII-5070000N42
Snyder Industries 2000 Gallon 30 Degree XLPE Cone Bottom Tank in White 1.9 sg
$6,081.21 -
-
Snyder Industries
SKU: SII-8050000N49
Snyder Industries 3600 Gallon Black HDPE Cone Bottom Tank
$6,149.00 -
Chem-Tainer
SKU: TC6258CA
Chem-Tainer 750 Gallon 15 Degree Plastic Vertical Cone Bottom Tank
$6,159.50 -
Norwesco
SKU: N-44951
Norwesco 3000 Gallon Cone Bottom Tank and Poly Stand in Black
MSRP: $6,719.00$6,173.71 -
Chem-Tainer
SKU: TC5264CB
Chem-Tainer 500 Gallon 20 Degree Polypropylene Vertical Open Top Cone Bottom Tank
$6,222.91 -
Snyder Industries
SKU: SII-5100000N49
Snyder Industries 2600 Gallon Black Cone Bottom Tank
$6,239.00
Cone Bottom Tanks
Cone-Bottom Tanks — Comprehensive Catalog
Cone-bottom (also called cone-bottom or full-drain) polyethylene tanks are engineered for applications where complete sediment evacuation, batch mixing, or downstream dosing matters. The angled bottom — 15°, 22.5°, 30°, 45°, or 60° from horizontal — drives settled solids toward the centerline drain and lets you empty the vessel to a true zero residual. Our catalog covers every active SKU from Norwesco, Snyder Industries, Chem-Tainer, Enduraplas, and Bushman.
Applications
- Batch mixing of fertilizers, surfactants, and process chemicals — solids settle and drain cleanly
- Chemical inductor / dissolution service — dry chemical mixing into water before spray
- Wastewater pre-treatment — solids drop-out and decant
- Slurry storage and dewatering — sand, polymer, sediment ponds
- Total-drain chemical feed for metering pumps (no dead-leg residue)
Compliance & Standards
Typically rotomolded to ASTM D1998; FDA 21 CFR 177.1520 resin compliance varies by model (see each product's Specifications). Cone bottoms must be supported by a properly rated steel stand — every cone-bottom tank is shipped with or sized for a matching stand (verify on each listing). Stand height equals cone height plus minimum 6" clearance for valve/discharge piping. Confirm working SG rating against your fluid; cone-bottom geometry concentrates head pressure at the centerline drain.
Engineering & Selection
Cone angle directly governs how cleanly your tank will drain. 15° works for free-flowing liquids only. 22.5°–30° is the sweet spot for most chemical and fertilizer service. 45°–60° is required for slurries, settled solids, or viscous fluids — anything that won't self-flow at shallower angles. Steeper cone means taller overall height and a taller stand, so verify ceiling clearance before ordering. Outlet sizing scales with intended flow rate: 2" for gravity discharge to drum, 3"–4" for pump suction or batch transfer.
Freight & Delivery
Tanks ship LTL motor freight from the closest stocking warehouse to your delivery ZIP. Typical transit 5–10 business days. Liftgate available at delivery (per-shipment fee). Always inspect at delivery and note damage on the bill of lading before signing — that is the carrier claim trigger. Bulk-order consolidation reduces per-tank freight 25–40%. Get your LTL freight quote by ZIP, or call 866-418-1777 for same-business-day quoted pricing.
Sizing & Selection
Capacity first, cone angle second, stand height third. Need help matching cone angle to your fluid? Call 866-418-1777 with your fluid, viscosity, and dosing requirements.
