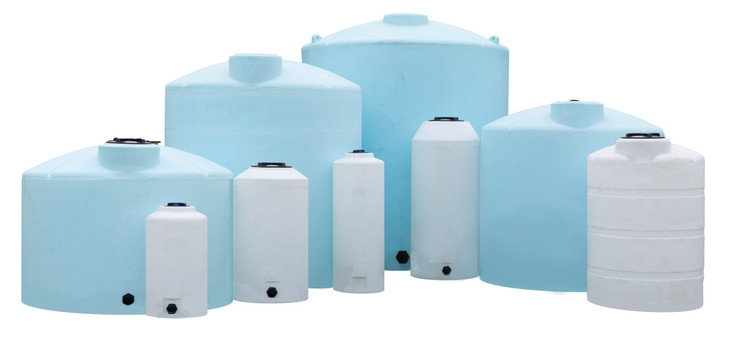

A 1100 gallon light blue heavy duty vertical tank, low and wide for a short ceiling
The Norwesco 1100 gallon heavy duty vertical liquid storage tank, part number 40081, is a light blue polyethylene tank 87 inches in diameter and 53 inches tall, weighing 210 lb empty. It is the squat member of Norwesco's 1100 gallon vertical family: wide and low so that it goes under a barn eave, into a basement or a container, or beside a building where a tall tank would show. The heavy duty rating of 1.9 specific gravity covers dense liquid fertilizers and heavier chemical blends as well as water; Norwesco states it as a maximum of 15.87 lb per gallon. 1100 gallons of water weighs about 9174 lb. It comes with a 2 inch polypropylene female NPT bulkhead fitting as the outlet and a 16 inch threaded vented manway on top. The service limit is 120 F, and Norwesco covers the tank with a 3 year limited full replacement warranty per its liquid storage catalog. If your job needs certification paperwork, tell us which document and we will confirm what Norwesco holds for this model before you order.
Is this the right size? Get freight to your ZIP and add it to your cart above, or call 866-418-1777 with the space it has to fit in.
Where it goes
The 87 inch diameter is the number to take to the site. The tank needs a flat, level, continuous pad at least that wide, with no slope, joint or drain under it; polyethylene tanks carry their load through the whole floor, and a pad that supports only the rim cracks the base over time. Our guide to concrete pad sizing for above ground polyethylene tanks covers the pad. At 53 inches tall the manway sits at chest height, so filling, dipping and cleaning happen from the ground with no ladder, which is the everyday advantage of this shape. Full of water the tank is close to 9174 lb on the pad; a liquid at the 1.9 rating is heavier still. Leave room around it to get at the outlet valve and to walk the full circumference when you inspect it. For rural fire protection sizing, see our guide to fire water reservoir tank design for rural and remote sites.
What goes in it
Water, liquid fertilizer and the industrial and treatment chemicals that polyethylene handles are the normal loads, and the 1.9 rating is what lets this tank take the heavier ones. Check the liquid in our chemical compatibility guide before the first fill, and ask us if it is not on the list. Light blue lets less light through than white, which slows algae in stored water, while still showing a shadow of the level in daylight. For the volume itself, use the tank sizing calculator and the tank sizing guide.
Openings and fittings
- Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the sidewall. Your valve, camlock or pipe adapter threads straight into it. Support the valve and the first length of pipe on their own so the fitting carries liquid, not hardware.
- Manway. A 16 inch threaded vented manway on top, wide enough to fill from a hose or a pump, to drop a float in, and to get a hand and a brush inside to clean. The vent is what lets the tank breathe as it fills and drains; never plug it.
- Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the exact outlet height and manway position.
The rest of the 1100 gallon family
Same heavy duty tank in black, for liquids you want to keep light away from: the 1100 gallon black heavy duty vertical tank. The standard 1.5 rated versions for water and lighter liquids: the 1100 gallon white vertical tank and the 1100 gallon black vertical water tank. One size down: the 1050 gallon vertical tank. One size up: the 1250 gallon black vertical tank. The colour swatches above the price switch between the versions of this tank.
Shipping and receiving
The tank ships LTL, NMFC 156600-01, from the nearest of Norwesco's plants: Fairfield, Texas; Hanford, California; Lancaster, Ohio; Owego, New York; Shawnee, Oklahoma; Sheldon, Iowa; Tooele, Utah; or Washougal, Washington. On the trailer it is 87 by 87 by 53 inches and 210 lb. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the tailgate, check the part number 40081 against the bill of lading, look over the base and the sidewall for transit damage, and fill it with water the first time before it carries anything else.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Hanford, CA; Sheldon, IA; Owego, NY; Lancaster, OH; Shawnee, OK; Fairfield, TX; Tooele, UT; Washougal, WA. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 40081.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the 1100 Gallon Blue Heavy Duty Vertical Liquid Storage Tank video (71 seconds) with dimensions, fittings and shipping notes.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
