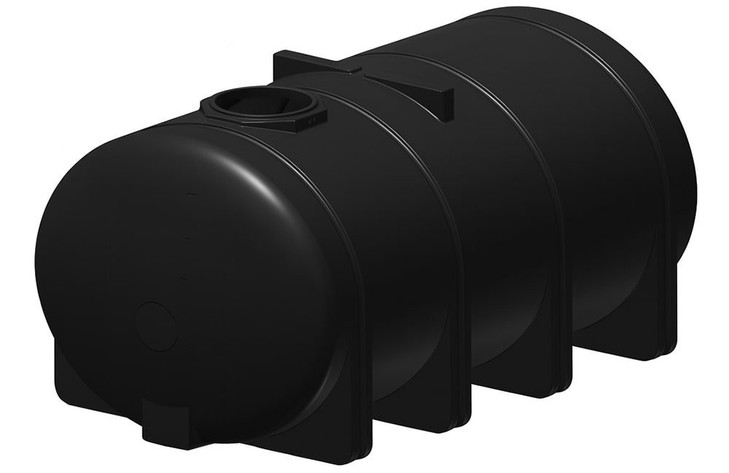

Norwesco 4035 Gallon Horizontal Elliptical Leg Tank in Black

Flat ground under all sixteen feet, and a door wider than 92 inches

Two site measurements settle this purchase and neither is a gallon figure. The first is the bearing surface: 192 inches of elliptical body on legs wants a flat, continuous plane under the full length, and the usual mistake is a pad or a gravel bed built to the footprint of the legs rather than to the footprint of the tank. Build to the tank. The second is the opening the tank has to pass on its way in, 92 inches wide and 75 inches tall, upright, on a machine. Walk that route with a tape before the order goes in. In return the elliptical shape gives the lowest profile of any 4035 gallon leg tank, which is why it goes under low roofs and onto flat trailers. This is the standard rated version: buy it for water and liquids near the weight of water. For a liquid heavier than 1.5 times water, the 4035 gallon black heavy duty leg tank is the same body with a 1.9 rating. Our guide to Norwesco applicator and leg tanks and the DOT non-roadable trailer rules covers how a tank this size is classified on the road, and the farm fleet DOT classification guide covers the agricultural exemption.

What goes in it

Water, liquid fertilizer and the farm and treatment chemicals that polyethylene handles. Check the liquid in our chemical compatibility guide before the first fill; urea solution, DEF, calcium chloride, sodium hypochlorite and sulfuric acid are the entries leg tank buyers ask about most. On a 1.5 rated tank the weight of the liquid matters as much as its chemistry. Keep the contents under 120 F. If you blend in the tank, read our note on fertilizer blend stratification and how to catch it before the spreader runs off spec. For the volume itself, use the tank sizing calculator and the tank sizing guide.

Openings and fittings

1. Outlet. A 3 inch polypropylene female NPT bulkhead fitting, factory installed low in the end wall, with a 2 inch reducer and a siphon tube that draws from the low point of the tank. Run a 3 inch or a 2 inch valve from day one. Support the valve and the first length of hose so the fitting carries liquid, not hardware.
2. Manway. A 16 inch threaded vented manway on top: wide enough to fill from a hose or a pump, drop a float in, and get a brush inside. On a tank this long, plan a platform to reach it.
3. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet and manway positions and the leg layout for pad and strap planning.

Same body, other colours and ratings

The same tank in white, for liquids where you want to see the level through the wall: the 4035 gallon white leg tank. For liquids heavier than water, the 1.9 rated versions are the 4035 gallon black heavy duty leg tank and the 4035 gallon blue heavy duty leg tank. One size down: the 3250 gallon white leg tank.

Shipping and receiving

The tank ships as oversize freight, Norwesco's OVS class, 192 by 92 by 75 inches and 1160 lb, from the nearest of Norwesco's plants in Fairfield, Texas, Hanford, California, Lancaster, Ohio, Philippi, West Virginia and St. Bonifacius, Minnesota. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. Have a forklift or a loader on site to unload it. At the tailgate, check the part number against 45394 on the bill of lading, look along all the legs for transit damage, and fill it with water the first time before it carries anything else.

Questions before you order? Call 866-418-1777.
