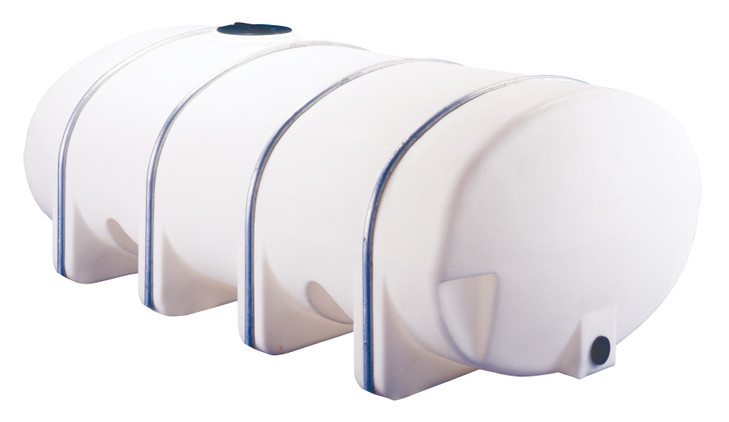

Norwesco 3250 Gallon Plastic Horizontal Elliptical Leg Tank in White

Who orders the white 3250 and what goes in it

Begin where a specifier begins, with what the tank is being asked to hold. This record publishes a 1.5 rating, a maximum of 12.52 pounds per gallon and a maximum contents weight of 40658 lb over its full 3250 gallons. That is the envelope for the contents. Water sits comfortably inside it at 27105 lb. A liquid meaningfully denser than water does not, and the sheet gives you the arithmetic to know which side of the line you are on before anything is ordered rather than after.

The second half of the reason to be on this row rather than one of its three twins is that it is the lighter shell at 1017 lb, in white, with a 3 year term. Those are the fields that separate it, and they are all the sheet gives us to separate it with. We will not tell you that a white tank does anything a black one does not; the record makes no such statement and neither will this page. What the record does say is that you can have 3250 gallons in a 152 by 88 by 82 inch envelope at four different published combinations of colour, material text, weight, rating and term, and that this is the lightest and shortest-term of them.

The install question is the ground. Nearly thirteen feet of tank needs nearly thirteen feet of continuous, level, load-bearing support, with real bearing under every leg, proven with a straightedge in two directions before the straps come off rather than discovered when the tank is full. If the gallons are not yet fixed, our tank sizing calculator works them out from a duty cycle and the tank sizing guide covers choosing a body shape to suit the site.

Same 152 by 88 by 82 body, four ways

There are two white rows in this table and they are not alternatives to each other: N-40686 is a smaller tank at 3135 gallons in a body 150 by 88 by 80 inches, and N-41267 is a much larger one at 4035 gallons stretched to 192 inches while standing 75 inches tall. Inside the 3250 gallon shell the four part numbers occupy exactly the same space, so the only questions that matter are the published weight, rating and term on each sheet. This row and the black N-44601 are the 1017 lb pair; the blue and the second black row are the 1053 lb pair and describe themselves on their own sheets. If someone hands you a colour word and a gallon figure and asks you to order, get the part number instead, because two of these six rows are black and two are white.

Two rows look the same? The difference is the wall; call 866-418-1777 with the liquid and we will say which, or ask for a quote on both.

From the bulkhead to the pump inlet

• The route out of this tank is a 3 inch polypropylene female NPT bulkhead fitting with a siphon tube, which is the sheet describing a body designed to be pumped down from one low connection.
• Design the suction side to three inches and keep it there. Three inch line, a 3 inch valve mounted close to the shell, and a pump chosen for that route; this record names no reducer, so nothing on the sheet asks you to narrow it.
• The siphon tube is what allows a long horizontal body to be drawn down usefully. No residual figure is published, so do not design a process that depends on the tank emptying completely.
• A bulkhead is a sealed penetration through the wall: hand-tight first, no wrench force levered against the shell, and every length of pipe carried on its own supports.
• Put a union directly downstream of the valve so that line work later does not start with draining 3250 gallons.
• Two access figures appear on this record, a 16 inch threaded vented manway and a 22 inch lid size. Measure the actual opening before ordering anything that must pass through it, and never obstruct the vent, which is what lets the tank breathe while a pump runs.
• The ceiling is 120 F / 48 C and the term is 3 years.

The honest limitation on this record is that the sheet carries no inlet field at all, so filling is through the top opening unless you design a route of your own. The install specific: on an 82 inch body whose only named opening is on top, decide how a person safely reaches that opening before the tank is set, not afterwards with a ladder leaned against a full shell.

Reading 40658 lb against your own liquid

The number that decides most specifications on this page is 40658 lb, the maximum contents weight, and the way to use it is to weigh your own liquid against it rather than to reason from the tank. Three articles of ours cover the decisions on either side of that. Stratification and thermal layering in blend tanks covers what a dense liquid does while it stands and how that gets verified before it leaves the yard. Norwesco applicator and leg tanks and the scope they are sold under sets out where this body style sits in the wider range. Loaf-style portable utility tanks is the comparison for anyone weighing a small portable body against a fixed tank of this size. None of them is a claim about N-44597; this page holds to 3250 gallons, 152 x 88 x 82 inches, 1017 lb, 1.5 and 12.52 pounds per gallon, 40658 lb, a 3 inch bulkhead with a siphon tube, a vented top opening, 120 F / 48 C and a 3 year term.

Resin compatibility, line by line

Below are the liquids this resin is rated for, the concentration each rating holds to, and the fitting and gasket to specify. Check the exact concentration and temperature you run against the chemical page or the chemical compatibility database before ordering.

• Acetic Acid at 60 percent with PP or PVC fittings and EPDM gaskets
• Aluminum Sulfate at 50 percent (PVC, EPDM)
• Calcium Chloride at 40 percent (PVC, EPDM)
• DEF at 32.5 percent (316SS fittings, EPDM)
• Ferrous Sulfate at 20 percent (PVC, EPDM)
• Magnesium Chloride at 30 percent (PVC, EPDM)
• Sodium Carbonate at 30 percent (PVC, EPDM); and
• Urea Solution at 50 percent (PP or PVC, EPDM).Ozonated Water up to 10 PPM also works with PVC fittings and EPDM gaskets.The fitting and gasket materials
• Ethylene Glycol
• Ferric Chloride
• Ferric Sulfate
• Hydrochloric Acid
• Hydrofluoric Acid
• Hydrofluosilicic Acid
• Hydrogen Peroxide
• Peracetic Acid
• Phosphoric Acid
• Polyaluminum Chloride
• Potassium Carbonate
• Potassium Hydroxide
• Propylene Glycol
• Sodium Bisulfate
• Sodium Bisulfite
• Sodium Hypochlorite
• Sodium Thiosulfate
• Sulfuric Acid and
• Zinc Orthophosphate .Several of these also need more than EPDM: the acids, hydrogen peroxide, and sodium hypochlorite require Viton gaskets, peracetic acid req

An oversize move out of Minnesota, Ohio or Texas

The plants named on this record are St. Bonifacius, Minnesota; Lancaster, Ohio; and Fairfield, Texas, while the ship-from field reads Minnesota and Ohio. Texas is therefore a plant on the sheet without being a ship-from state on it, which is a difference worth resolving at order time rather than assuming a lane. Freight class and ship mode both read OVS, so this is an oversize booking with an appointment window, not a parcel drop; 152 inches of length decides that on its own. Get the real figure for your ZIP from the freight cost estimator; the listed price is before freight. The receiving detail specific to this row is the colour: a white shell shows handling marks, scuffs and strap witness far more plainly than a dark one, so walk both long sides in daylight and photograph anything you find before the driver leaves the yard. Mark the vent and the outlet on the outside of the shell so nobody caps the wrong one in the dark.
