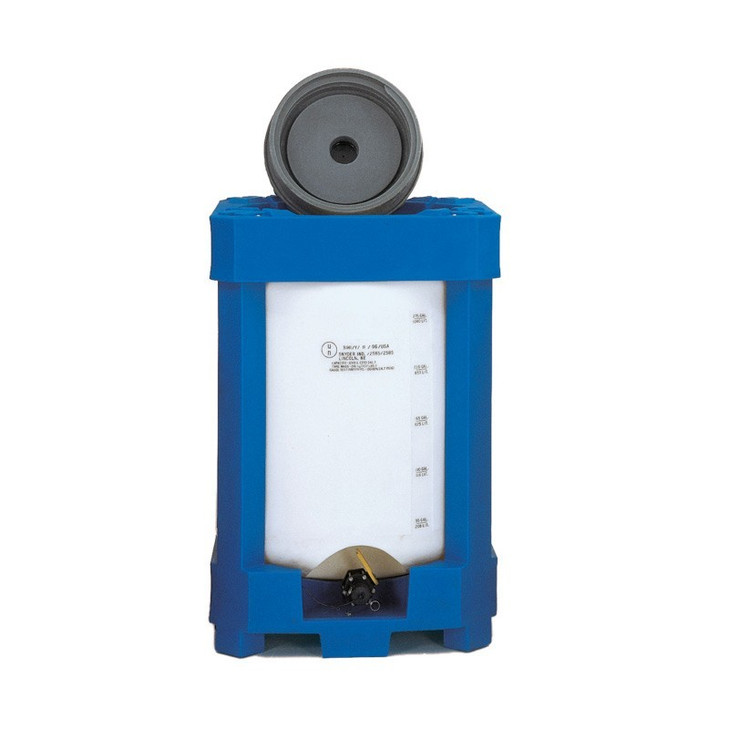

Snyder Industries 220 Gallon HDPE Ultratainer Stackable IBC Tote Tank in Blue

What the wide opening buys

A wide manway takes a head and a shoulder, an arm to the elbow, a scrub brush, a wash lance and a light, which means this tote can be inspected and cleaned from above rather than rinsed and hoped over. On a product that dries, films, settles or has to be changed between batches, that is the difference between a vessel you turn around in an afternoon and one you write off at the first product change: a coating or adhesive that skins, a polymer or flocculant that has to be made up and kept moving, a pigment that settles into the corners, a cleaning chemistry that leaves a film. The weight is the honest cost. At 331 lb empty this is the heaviest of Snyder's 220 gallon totes and a machine job at both ends of every move, and at 54 inches it will not pass under a mezzanine or a rack beam that the shorter 220s clear. The top opening at that height needs a step or a platform designed in, not improvised on a pallet. Set it on a flat, continuous, level surface carrying the whole 46 inch square, never on two pallets or blocks, and check the loaded case against the floor or the rack beam: 1,835 lb of water, 3,486 lb at the rating.

What goes in it

Water, most fertilizers and the common process chemistries polyethylene handles, up to 1.9 times the weight of water and up to 120 F. Check the liquid in our chemical compatibility guide before the first fill; sodium hypochlorite, sulfuric acid, hydrochloric acid and DEF are the entries tote buyers open most. Decide the tier with our container versus tank guide and the drum, tote and bulk tank break even analysis, size it with the tank sizing calculator and the tank sizing guide, and for hazardous waste read our note on RCRA secondary containment.

Openings and fittings

1. Outlet. A 2 inch ball valve, factory fitted. Support the first length of hose so the valve carries liquid, not hardware.
2. Inlet. A 2 inch bung for a closed fill.
3. Manway. A threaded vented manway on top. Two different sizes are on file for this opening, so confirm the size you need with us against Snyder's drawing before you order a mixer, a probe or a lid gasket for it.
4. Drawing. Snyder's drawing is linked under Technical Drawing on this page.

Sizes nearby

The same 220 gallons with a small lid instead of the manway: the 220 gallon stackable IBC tote in white, the 220 gallon tote in black and the 220 gallon tote in red. In steel: the 180 gallon 304 stainless steel Supertainer and the 245 gallon carbon steel Supertainer. For containment under any of them, see the Snyder Captor containment comparison.

Shipping and receiving

The tote ships LTL under NMFC 156600-03 from Snyder's plant in Lincoln NE, 46 by 46 by 54 inches at 331 lb. Add it to your cart at the top of this page, get LTL freight to your ZIP, or call 866-418-1777. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the dock, check the part number against 6820006B97205 on the bill of lading, work the valve once by hand, look over every face for transit damage, and fill it with water the first time before it carries product.
