Two hundred and twenty gallons on a 45 inch square

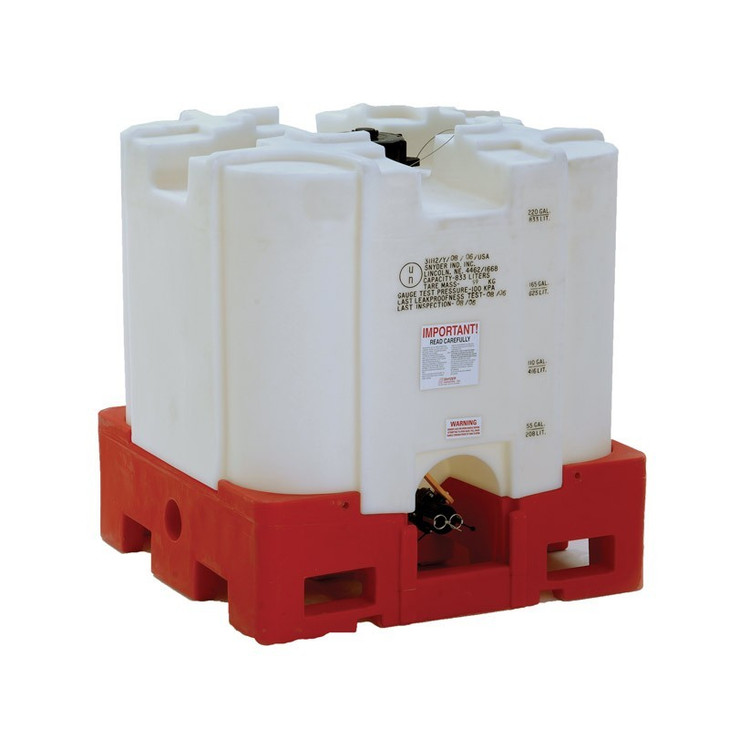

The Snyder SII-6630023B97202 is a 220 gallon stackable IBC tote tank in white high density linear polyethylene, listed 45 inches long, 45 inches wide and 48 inches tall, at 243 pounds empty and 243 pounds ship weight. Its own family record spells the empty weight 243.1 pounds; both forms are on the sheet and this page uses the served figure. The wall is rated at a specific gravity of 1.9, which gives 1,835 pounds for 220 gallons of water at 8.34 pounds per gallon and 3,486 pounds of max contents. The fittings are published and that is not universal in this catalogue: a 2 inch bung inlet, a 2 inch ball valve outlet and a 6 inch threaded vented lid. The service limit is 120 F / 48 C. Freight is given as LTL under NMFC 156600-03, out of Lincoln, Nebraska. The name says stackable and the sheet publishes no stacking load, no cage, no pallet, no fork pocket and no warranty term, so this page claims none of them.
Engineer on the job? Request a written quote with the spec attached, or get freight to your ZIP and add to cart above; 866-418-1777 answers the technical questions.
The white 220 against the black, the red and the tall one
Four totes on this sheet hold 220 gallons and the family is where the decision belongs, because they are the same volume in four different boxes. SII-6630023B97203 is the black one, 45.75 inches square and 46.25 inches tall at 188 pounds. SII-6630041B97202 is the red one, 45 inches square and 48.5 inches tall at 211 pounds. SII-6820000B97202 is the Ultratainer, 46 inches square and 54 inches tall at 295.9 pounds. This one is white, 45 inches square and 48 inches tall at 243 pounds. Start with the plan. At 45 inches square this tote and the red one share the smallest footprint in the group, three quarters of an inch tighter than the black one and a full inch tighter than the Ultratainer in both directions. On a rack bay or a bunded area laid out to a fixed plan, that is the difference between a tote that drops in with clearance on all four sides and one that has to be nudged. Then take the height. At 48 inches this one sits half an inch under the red tote and six inches under the Ultratainer, which matters under a mezzanine, a pipe run, a rack beam or a roller door that does not open all the way. The black tote is lower again at 46.25 inches and lighter at 188 pounds, so where headroom is the binding constraint it is the honest recommendation and we would rather say so. What this tote gives you that the black one does not is the deeper body on the smaller plan: same 220 gallons, less floor, more height. The colour is the last piece and it is not cosmetic on a site running more than one product. White reads a level through the wall in good light in a way a black shell never will, and a plant that keeps white for one chemistry and a colour for another has solved an identification problem without a label falling off. Before you settle on the tier at all, put your turnover through the tank sizing calculator, take the freeboard from the tank sizing guide, and read the container versus tank guide, which is the honest comparison of when a tote beats a drum and when it loses to a fixed tank.
Three plastic 220s and two steel supertainers
| Part | Volume | Length x width x height | Empty weight |
|---|---|---|---|
| SII-6630023B97202 (this tote, white, smallest plan) | 220 gal | 45 x 45 x 48 in | 243 lb |
| SII-6630023B97203 (black, lowest and lightest) | 220 gal | 45.75 x 45.75 x 46.25 in | 188 lb |
| SII-6630041B97202 (red, same plan, slightly taller) | 220 gal | 45 x 45 x 48.5 in | 211 lb |
| SII-6820000B97202 (Ultratainer, tallest) | 220 gal | 46 x 46 x 54 in | 295.9 lb |
| 6984100B51301 (304 stainless steel supertainer) | 180 gal | 42 x 48 x 29.25 in | 351 lb |
| 6984000B32217 (carbon steel supertainer) | 245 gal | 42 x 48 x 35.25 in | 389 lb |
The top four rows are one decision and the bottom two are a different one. Among the plastic totes the spread is one inch of plan, seven and three-quarter inches of height and a hundred and eight pounds of empty weight, all at the same 220 gallons. Order by the opening you have to fit through and the beam you have to sit on, not by the headline volume. This tote is the compact one: smallest plan in the group, mid height, and heavier than the black and red totes, which is what a deeper body on a tighter footprint costs. The last two rows are not polyethylene and this page does not describe them as though they were. 6984100B51301 is a 180 gallon 304 stainless steel supertainer, 42 by 48 inches and only 29.25 inches tall at 351 pounds, and 6984000B32217 is a 245 gallon carbon steel supertainer on the same 42 by 48 inch plan at 35.25 inches tall and 389 pounds. Both are spelled without a prefix on the sheet and both are steel vessels; no specific gravity, resin or cross-link statement on this page applies to either of them. What they offer is the thing steel offers and plastic does not, on a rectangular plan that is longer than it is wide and much lower than any tote here, at an empty weight well above all four plastic totes. They sit on this sheet because they land in the same volume band and solve the cases steel solves. If your question is which material, ask us with the product and the duty in front of you and we will answer it against both, not against whichever one we are describing.
Height or floor the limit? The table has both shapes; freight to your ZIP is quoted on each row, or call 866-418-1777 with the site.
A vented lid above, a ball valve below
- The vent comes with the lid: the sheet lists a 6 inch threaded vented lid, so the breathing path arrives as part of the top fitting instead of being specified separately. That is worth knowing, because on a tote being emptied through a valve at the base the wall feels a blocked vent within minutes. Keep it clear, keep it unpainted, do not tape over it to stop a weep, and look at it every time the lid comes off.
- What six inches will take: a hose, a wand, a dip tube and a lance. Not an arm. Decide how the tote gets washed out before you decide what goes in it, and buy the lance with the tote rather than after the first product change.
- The outlet: a 2 inch ball valve, published on the sheet. Fit a flexible connector immediately downstream so the tote never carries the weight or the movement of the line, and keep the valve handle reachable without leaning across the tote.
- The inlet: a 2 inch bung, which is a closed fill connection. Filling through the bung rather than through the lid keeps the top shut, keeps the operator off the top of the tote and keeps whatever is in the air out of the product.
- What hangs off the valve: a meter, a coupling, a filling gun or a reel all go on their own bracket off the rack or the wall. The fitting boss carries liquid, not hardware, and the cost of getting that wrong is a leak at the one point nobody can reach while the tote is full.
- Stacking and handling: the word stackable is in the name and no stacking load, cage, pallet or fork pocket appears on the sheet. Nothing here is a permission to stack; get the condition confirmed in writing for this exact part number before anything goes on top of anything, and handle the tote from underneath on something that supports the whole base.
- Limits: 120 F / 48 C is the service limit, the wall rating is a specific gravity of 1.9, 1,835 pounds is the water figure and 3,486 pounds the max contents. There is no warranty term on this sheet.
Name the liquid when you order and the valve, the gasket and the bolting are matched to it instead of left generic. Where the product is regulated, the containment under the tote is a separate purchase and a separate argument: the RCRA secondary containment guide covers the options and the inspection cadence, and the Captor containment comparison sets a contained polyethylene vessel against the steel route on the points that decide it.
Buying in bulk and issuing it in batches
Two hundred and twenty gallons is the working tier for an operation that has outgrown drums and does not want a fixed tank on a foundation: coolant and cutting fluid in a machine shop, wash and pre-treat chemistry on a finishing line, sanitiser and detergent in a food or beverage plant, treatment chemical at a small utility, ink, adhesive or additive in a converting plant, and distribution duty where one tote is decanted into many small containers. The thing that decides whether this is the right tier is not the price of the container. It is how fast the product turns over, what hazard class it falls into, and how much floor the whole arrangement takes once containment and access are counted in. That is exactly the calculation in the drum versus tote versus bulk tank break-even analysis, and it is worth an hour before a site standardises on a container size, because the container size then decides the rack, the bund, the pump and the delivery schedule for years.
Listed chemical service for this shell
The maker's list for this resin: each liquid, the concentration it is rated to, and the fitting and gasket that go on the order. Verify your own service on the linked page or in the chemical compatibility database before ordering.
Lincoln, Nebraska, 243 pounds empty, shipped 45 by 45
This tote is molded at Lincoln, Nebraska and the sheet lists Nebraska as the state it ships from, which is a central lane into the plains and the Midwest and a fair one to most of the country. The freight class is given as LTL, a mode rather than a numeric class, under NMFC 156600-03, and it shipments at 45 inches long by 45 inches wide by 48 inches high, a square pallet that blocks and loads well on a trailer. Price the lane to your ZIP with the freight cost estimator; the listed price is before freight. At 243 pounds empty this is a forklift or pallet jack delivery at both ends, so have the machine and the operator at the dock when the truck arrives rather than an hour later. Take it from under the base and never by the lid, the bung or the valve boss. Set it in its final rack or floor position before anything is plumbed, then fill it with clean water on the level and hold that 1,835 pound load long enough to read the valve joint, the bung and the lid seal. Drain it through the valve rather than the lid, so you learn at the water stage whether the hose arrangement actually empties it. Label the tote with the product and the date it went into service before the first delivery lands, because a white tote that nobody can identify from across the aisle is the one that gets topped up from the wrong drum. The vent screen is the cheapest part on the tank and the one that saves it; look at it every time the manway opens.
Freight and documents
Ships from: Lincoln, NE. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 6630023B97202.
See this tank
Product video. Watch the Snyder Industries 220 Gallon HDPE Stackable IBC Tote Tank video (67 seconds) with dimensions, fittings and shipping notes.
