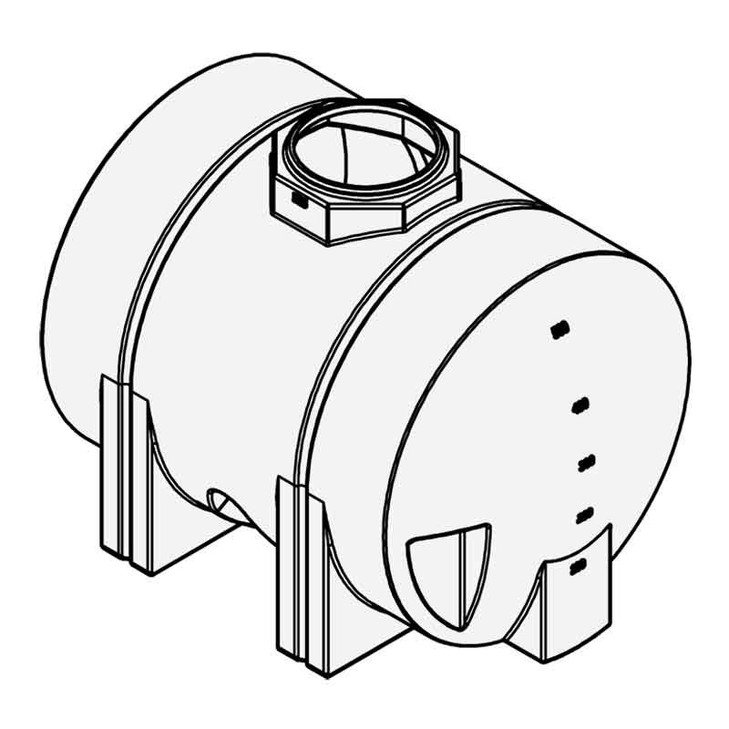

Snyder Industries 525 Gallon Plastic Horizontal Leg Tank

The farm fleet that weighs every pound it bolts to a trailer

Some buyers count gallons and some count pounds. This tank is for the second kind: a grain or row-crop farm putting a nurse tank on a trailer that is already near its rating, a co-op that has to get 525 gallons behind a half ton rather than a three quarter ton, a spray operator whose rig carries a pump, a reel, a generator and a toolbox before the tank goes on, an orchard crew on a light trailer between rows, a maintenance fleet where the same skid is lifted on and off by two people and a loader. At 124 pounds empty, every pound this tank does not weigh is a pound of payload it gives back, and 53 inches tall is the lowest body at this capacity on the sheet, which keeps the loaded mass down where a light trailer can live with it. What you give up for that is the lid. It is listed at 10 inches, where the 500 and the 535 gallon tanks beside it carry 18 inch lids, so this is a tank you fill through a hose and not one you get an arm and a light inside easily. Decide that before you order, not after the first product change. The mounting rules do not change with the weight: the legs bear along their full length on a flat, continuous deck, skid or pad, with no gap under the middle, no leg over an edge and nothing bolted through a leg, and the straps go over the body at both ends with the load taken against a headboard. There is 4,378 pounds of water above those legs when it is full and 8,319 pounds at the rating. Put 525 gallons against your own draw and refill interval in the tank sizing calculator, and take the freeboard a warming liquid needs from the tank sizing guide. For a blended load in a long, shallow body, the fertilizer-blend tank stratification article explains what to check before the spreader runs.

Four ways to carry 525 gallons

Three tanks on this sheet hold 525 gallons and the sheet gives them at three different weights, which is the whole comparison. This one is the longest of the three at 75 inches and the lightest at 124 pounds. SII-1400000W94303 puts the same 525 gallons in a 68 inch body at the same 48 inch width and 53 inch height and is listed at 128 pounds, which is the one to take when seven inches of deck length is the binding constraint. SII-32398 is the black one, 71 by 49 by 56 inches and listed at 194 pounds, the heaviest figure at this capacity on the sheet; black is the wall people choose when they would rather daylight did not reach the load, and the sheet gives the weight as it stands without explaining it. Step outside 525 and SII-1400300N45 holds ten more gallons in a 78 inch body at the same listed 124 pounds and an inch lower again, with an 18 inch lid instead of this tank's 10 inch one, while SII-1400100C26 gives up twenty-five gallons for a taller, wider body and the bigger lid. Buy this tank when the trailer is weight-limited and the fill is a hose.

Found the 525 gallon tank in the table? Freight to your ZIP is one click; add it to your cart above, or call 866-418-1777 to check the grade.

A 2 inch outlet under 53 inches of tank

• The pump path: the sheet lists a 2 inch outlet, which is a real transfer size, and the layout that makes use of it is the pump below the outlet with a short falling hose into the suction and the first bend clear of the fitting. Fifty-three inches of body is the least standing height of the 525s, so nothing is gained by lifting the pump and a good deal is lost.
• Prime on a low body: use a self priming pump or a foot valve as a matter of course here, and fit a run-dry stop. On the lowest tank at this capacity the level reaches the bottom of the suction earlier in the load than an operator expects.
• Gravity drain: the outlet is the low point of the body, so a full-flow shutoff at the fitting and a fall on the deck toward that end will empty the tank without the pump when there is time to let it run. Keep a second valve downstream so hoses change without draining.
• Filling and cleaning: a 10 inch lid, the smaller of the two lid sizes in this capacity group. It fills from a hose without trouble and it is a tight opening for washing out or for an inspection arm, so plan product changes around it.
• Service limit: 120 F / 48 C, which is the only limit this sheet publishes.

Light tanks get treated casually and that is where they get hurt. The first joint off the outlet is a flexible connector, the valve is carried on its own bracket off the deck, and nothing rigid is clamped between the tank and the vehicle, because at 124 pounds empty this body will move against a hard pipe long before the pipe moves. Tell us the liquid when you order and the fitting, gasket and bolting are matched to it. Where a regulated product sits in the tank on the yard and somebody has asked about containment, the Snyder Captor SPCC 40 CFR 112 walkthrough gives the honest version of what a double wall buys.

Weight-limited trailers and long field days

The work is nurse and applicator supply on farms and co-ops, spray and rinse water for contractors, orchard and vineyard supply on narrow light trailers, wash and transfer duty around a shop or a yard, and water for dust control on a light truck. If the shape is still in question against a loaf or an applicator body, the applicator and leg tank guide lays the options out against the duty instead of the catalogue, which is the right order to make that decision in.

Rated liquids and the fittings to order with them

The resin carries a rating for each liquid below at the concentration shown, and each line names the wetted fitting and gasket to specify. Confirm the service you actually run on the chemical page or in the chemical compatibility database before ordering.

• acetic acid (60%, PP/PVC fittings, EPDM gaskets)
• aluminum sulfate (50%, PVC, EPDM)
• calcium chloride (40%, PVC, EPDM)
• DEF (32.5%, 316SS, EPDM)
• ethylene glycol (100%, PVC, EPDM)
• ferric chloride (50%, PVC, EPDM)
• ferric sulfate (60%, PVC, EPDM)
• ferrous sulfate (20%, PVC, EPDM)
• hydrochloric acid (37%, PVC, Viton)
• hydrofluoric acid (48%, PP/PVC, Viton)
• hydrofluosilicic acid (26%, PP/PVC, Viton)
• hydrogen peroxide (50%, PVC, Viton)
• magnesium chloride (30%, PVC, EPDM)
• peracetic acid (30%, 316SS, Aflas)
• phosphoric acid (85%, PVC, Viton)
• polyaluminum chloride (PVC, EPDM)
• potassium carbonate (50%, PVC, EPDM)
• potassium hydroxide (saturated, PVC, EPDM)
• propylene glycol (PP/316SS, EPDM)
• sodium bisulfate (PVC/PP, EPDM)
• sodium bisulfite (PVC/PP, EPDM)
• sodium carbonate (30%, PVC, EPDM)
• sodium hypochlorite (
• sodium thiosulfate (40%, PVC, EPDM)
• sulfuric acid (98%, CPVC, Viton)
• urea solution (50%, PP/PVC, EPDM)
• zinc orthophosphate (PP/316SS, EPDM), and ozonated water (up to 10 PPM, PVC, EPDM).The fitting and gasket material changes by chemical, for example Viton over

Two plants, one class, and the first fill

The sheet lists two plants for this part, Lincoln, Nebraska and Philippi, West Virginia, which puts a short lane in front of buyers in the plains and in the eastern states both. The freight class is given as LTL under NMFC 156600-02, and the tank shipments at 75 by 48 by 53 inches. The freight cost estimator prices the lane to your ZIP, and the listed price is before freight. At 124 pounds it comes off with forks under the legs or two people who are ready for six feet three inches of tank, never by the lid and never by the outlet fitting. Set it on the finished deck or skid, strap it, then fill it with clean water on level ground and read the legs, the lid seal and the outlet through a full load before the real liquid goes in. Weigh the loaded rig once on a scale before the first working day; on a weight-limited trailer that ticket is worth more than any calculation. Check the strap tension a week after the first fill; a tank settles a little, and the strap that was tight is loose.
