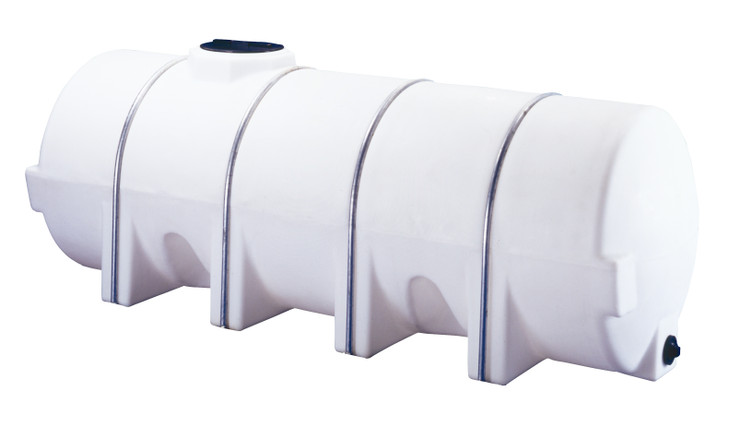

Norwesco 3725 Gallon Horizontal Leg Tank

The 1.5 rated 3725, and the duty it suits

Who buys this row? Someone who needs a large single volume and whose liquid is at or near the density of water. The sheet frames the duty in one line: a 1.5 rating, a maximum of 12.52 pounds per gallon and a maximum contents weight of 46600 lb over 3725 gallons, against 31066 lb for water itself. That leaves useful room above water and stops well short of what the heavier-rated part number in the same body publishes. If your liquid is dense enough to need that extra headroom, you want the other row; if it is not, you are paying for capacity you will not use.

The rest of what separates this record is the term and the shell. Three years here, against a longer term on the heavier-rated part number, and a white body rather than the black or blue ones in the table below. As on every page in this range, we tell you what the colour field says and stop there; the record attaches no behaviour to colour and neither will we. What the colour does do on a practical level is show marks, which matters more when you are receiving the tank than when you are running it.

For the site, work to the plan: 145 inches by 92 inches of continuous, level, load-bearing ground with real bearing under every leg, checked before the straps come off, and 97 inches of clearance above that plus room for a person to work at the top opening. Fix the gallons with our tank sizing calculator if they are still open, and use the tank sizing guide to weigh this horizontal body against a vertical of the same volume.

Two spellings of 3725 and three heavier rows

The first thing to notice is the spelling. This family runs two part numbers with the N- prefix and two with a trailing B, and all four are the same 145 by 92 by 97 inch body, so ordering by description instead of by part number is how the wrong tank ends up on a truck. The second thing is the weight column, which on this record carries two figures that do not sit together comfortably: an empty weight field of 132 lb and a shipping weight field of 1082 lb on a tank whose same-size siblings are 1320 lb and 1450 lb. We print what the sheet publishes and will not reconcile it for you; if the exact weight governs your lifting plan, ask us and we will get it confirmed in writing before you order. The N-42990 row is the interesting alternative: almost the same length at 146 inches but only 62 inches wide and 68 tall, which is the row for a narrow bay where 1800 gallons is enough.

Want us to check the fit? Send the site dimensions to 866-418-1777 or through a written quote request and we will confirm the tank, the pad and the freight.

Draw-off, reducer, and the vented lid above it

• The pump route is the first thing to settle. The outlet reads a 3 inch polypropylene female NPT bulkhead fitting with a 2 inch reducer, so the tank presents three inches at the shell and two inches to whatever you connect.
• Build the suction side around the 2 inch figure: 2 inch line, a 2 inch valve close to the tank, a short and straight run, and a pump chosen for that route rather than for the larger number stamped on the bulkhead.
• No siphon tube is named on this record, unlike several tanks in the same range. The outlet field describes a bulkhead and a reducer; take that as the complete description of what arrives.
• Hand-tighten the bulkhead connection first and never lever a wrench against the shell. Support every length of pipe on its own hangers so the fitting carries nothing but itself.
• Put a union directly downstream of the valve. It is the cheapest part of the assembly and the only one that saves you a full drain later.
• Access is a 16 inch threaded vented manway and the lid size field also reads 16 inches, so the two opening figures agree. Keep the vent path clear whenever the tank is being pumped down.
• Ceiling 120 F / 48 C, term 3 years.

The limitation to state plainly on this page is the weight data: with an empty field of 132 lb standing beside a shipping field of 1082 lb, this record cannot be used as the basis of a lifting calculation without confirmation, and we would rather say that than pick the number that suits us. The install specific worth carrying away: with no inlet field on the sheet, filling happens at the 16 inch top opening 97 inches up, so the platform, ladder or fixed access that makes that safe belongs in the job scope from the start.

46600 pounds is the ceiling on this record

Everything a specifier needs from this page reduces to one comparison: the weight of your own liquid at 3725 gallons against the 46600 lb this record publishes, with 31066 lb for water as the reference point. Two pieces of our own writing cover the choices either side of that. Norwesco applicator and leg tanks and the scope they are sold under sets out where a leg tank sits against the mounted and portable alternatives. Loaf-style portable utility tanks covers the much smaller body style that buyers sometimes weigh against a fixed tank when the volume is uncertain. Neither says anything about N-44047, and neither replaces the figures here: 3725 gallons, 145 x 92 x 97 inches, a 1.5 rating at 12.52 pounds per gallon, 46600 lb maximum contents, a 3 inch bulkhead with a 2 inch reducer, a 16 inch vented top opening, 120 F / 48 C, 3 years.

Which liquids, at what concentration, with which fitting

Each entry pairs a rated liquid with its concentration limit and the fitting and gasket to order alongside the tank. The full rating sits on the linked page and in the chemical compatibility database before ordering.

• details ); Aluminum Sulfate 50% (PVC
• details ); Calcium Chloride 40% (PVC
• details ); DEF 32.5% (
• details ); Ferrous Sulfate 20% (PVC
• details ); Magnesium Chloride 30% (PVC
• details ); Sodium Carbonate 30% (PVC
• details ); Urea Solution 50% (PP/PVC
• details ); and Ozonated Water up to 10 PPM (PVC).One convenience at this rating: every chemical compatible with the 1.5-SG tank seals on EPDM gaske
• sulfuric acid
• sodium hypochlorite and
• ethylene glycol plus the full

A shipping weight of 1082 lb against an empty weight the sheet gives as 132

Three plants are named on this record: St. Bonifacius, Minnesota; Shawnee, Oklahoma; and Fairfield, Texas. The ship-from field names Minnesota and Texas only, so Oklahoma appears as a plant with no matching ship-from state, and the origin that applies to your order is confirmed when it is placed. Freight class and ship mode both read OVS, which at 145 inches long and 97 inches tall is the expected booking: an appointment, a machine on site and a clear route to the pad. Run your own ZIP through the freight cost estimator before you budget; the listed price is before freight. Because the two weight fields on this record disagree, the receiving step here starts with the paperwork rather than the tank: read the weight printed on the bill of lading, write it down, and treat that figure, not this page, as the one your lifting plan is built on. A photo of the tank on its pad, full, on day one is worth keeping; it is the baseline every later inspection is compared against.
