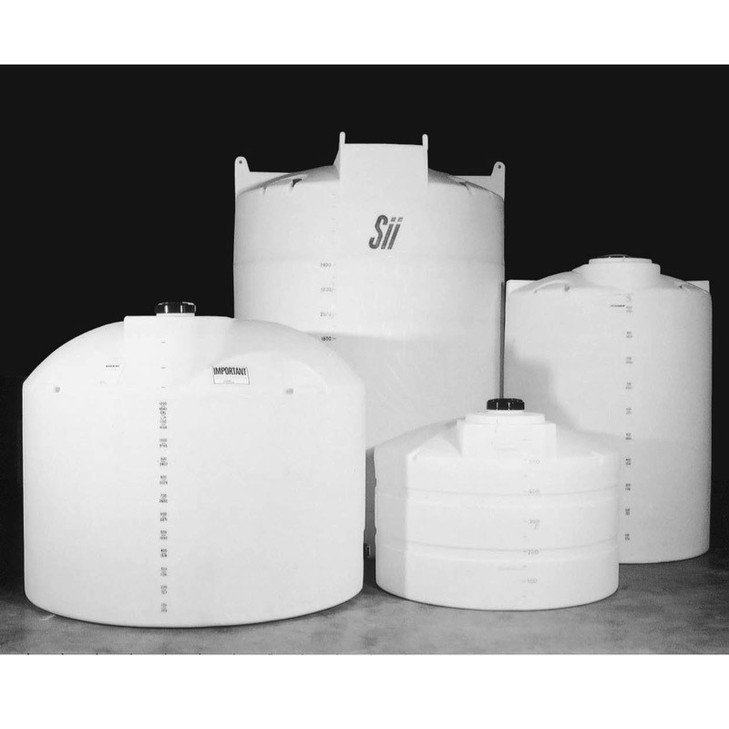

Snyder Industries 1500 GALLON VERTICAL DOME TOP WATER TANK IN WHITE

Why a dome, and why six feet

The tank dome curvature guide goes through the engineering: a flat roof on a polyethylene tank sags under its own weight in summer and under snow in winter, and it dishes inward when a pump draws faster than the vent admits air, while a dome turns those loads into hoop stress the wall was already carrying. The 72 inch height puts the lid where a step reaches it and a truck fills it from the ground, and the 86 inch base keeps the water low. Full, it puts 12,510 pounds on that base, and a rotationally molded floor bears on the whole pad, so a compacted, screeded gravel base or a slab in full contact, level, with the empty tank strapped against wind. Our 1,500 gallon vertical tank buyers guide compares the shapes at this volume across makers; the tank sizing calculator tells you whether 1,500 gallons covers the draw, and the tank sizing guide covers days of supply.

The 1,300 to 1,600 gallon tanks around it

The WV45 and the 32549 are the low 1,500 and 1,600 on this same 86 inch base at 70 and 71 inches, the plainer roofs at this volume. The 1840400N52 stands the same 1,500 gallons on a 60 inch base at 137 inches in the opaque chemical wall for a site with height and no floor, and the 1830400N52 is the 1,300 on a 72 inch base.

Need the taller or the wider one? Every row links to its page with freight to your ZIP on each; 866-418-1777 will check the ceiling and the pad.

Lid, fittings, limits

• Access: 18 inch lid at the crown of the dome, 72 inches up, opened from a step; the dome is walkable for inspection, with a fall anchor where the site rules ask for one.
• Fittings: specified at order. Tell us the liquid and where the inlet, outlet and overflow go, and the bulkhead fittings are installed to match; a flexible connector between the outlet and hard pipe, and the valve supported off the pad.
• Rating: 1.9 specific gravity on the sheet, 23,769 pounds of contents.

Six feet of water above a base outlet keeps a pressure pump's suction flooded to the last few inches, and a float switch at low level shuts it off before it runs dry. The white wall shows the level in daylight through the wall. Keep the lid closed and screened so nothing falls in and nothing breeds, and vent the tank for the pump's draw, because a dome that is built to take vacuum still should not be asked to. Where it freezes, wrap or drain the outlet valve and the first pipe run; the body takes ice from the top down without harm.

Duty at this size and shape

Well storage for a house and a garden under a low eave, a rain cistern where the roof sheds snow onto the tank, stock water in a paddock, a spray-mix supply on a farm, and a fire reserve of the kind the fire-water reservoir design guide describes, where a walkable dome is where the inspector stands. Some are the storage stage of a reuse system for roof water and condensate, per the industrial water reuse tank topology article.

From Marked Tree to your pad

The 8120100W94303 ships LTL from Marked Tree, Arkansas; the freight cost estimator quotes the lane to your ZIP, and what is listed here is the price before freight. Two people stand 265 pounds, or a forklift with long forks does it; at 86 inches across it goes around the building. Fill it to the lid once, check every fitting and the pad edge, and keep a screen on the vent. Write the fill date on the wall in paint marker; it is the only record the tank will keep. A strap that is checked once a season is a strap that holds; put it on the same calendar as the gutters.
