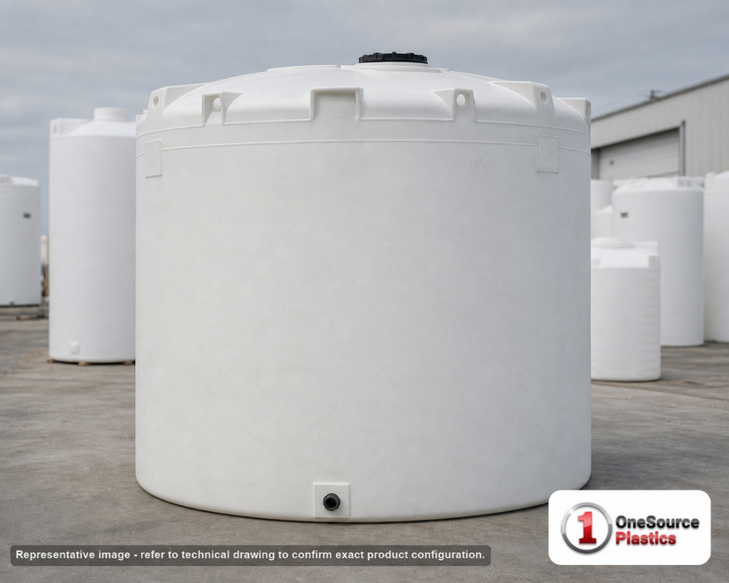

Snyder Industries 6000 Gallon HDPE Vertical Liquid Storage Tank with ASTM Certification

A tanker and a reserve, certified, in the middle wall

A water-rated wall is for water and nothing heavier; the heaviest wall is for concentrated acid; a 1.5 wall is the middle, sized for brine, fertilizer solution and coagulant as delivered and every water application, with margin, and 1,500 pounds of resin is what that takes on this shell. The certification is against ASTM D1998, and the way a tank meets it is in the wall; the HDPE tank wall thickness guide explains the sizing logic and why the headspace is where a wall ages, and the freeboard sizing guide works out the usable volume once thermal expansion is accounted for. Full, it puts 75,060 pounds on a 120 inch circle at the rating: a slab engineered for it and in full contact under the whole floor, and straps on the empty tank against wind and the manway reached from a short platform. The 6,000 gallon vertical tank buyers guide compares every maker's version of this volume; the tank sizing calculator tells you whether 6,000 gallons covers the draw, and the tank sizing guide covers days of supply.

Grades on the 120 x 145 inch tank, and the sizes beside it

The N45 is the certified 1.9 wall at this tank's weight for ferric at strength and the heavy brines, and the N40 is cross-linked polyethylene for oxidizers. The 7000000C34 and C37-BLACK hold the same 6,000 gallons on this base in a shorter, lighter general-grade shell, 13 inches lower, and the 8220000C34 holds 6,200; the 5250000N40 lays 5,600 gallons down on a 142 inch base at 102 inches for a barn roof.

Settled on the 6000 gallon tank? Freight to your ZIP and add to cart above; a written quote is one click away for the paperwork.

Fittings and access

• Access: 18 inch threaded, vented manway, 145 inches up; filled by truck through a dip tube, vented outside on anything that fumes, and size the vent for a tanker's unload rate.
• Outlet: tell us the liquid when ordering and the bulkhead fitting is matched to it; a flexible connector between the bulkhead and hard pipe, an expansion joint, and the valve supported off the slab.
• Service limit: 120 F / 48 C.
• Snyder line: ASTM.

The white wall shows the level in daylight; fit a sender read at ground level so nobody climbs for a number, and a float switch at low level shuts the pump off before it runs dry. Mount the pump below the outlet so it primes by gravity, keep the manway closed against vapor loss, and keep the tank out of direct sun where the liquid is light-sensitive. If winters freeze, wrap or drain the outlet valve and the first pipe run.

The first delivery

The driver's pump can deliver faster than the manway vent can breathe, so the vent is sized for the unload rate or the fill goes through a dedicated top bulkhead with its own vent line. A fill pipe to the floor keeps the liquid from free-falling and foaming. Watch the first delivery from the first gallon to the last, checking the slab edge and the outlet fitting as the level rises, and the log takes the date and strength of every load that follows.

Jobs it is bought for

Coagulant, brine and fertilizer solution delivered by tanker with a reserve, at plants and farms that need the certification on file, well storage for a community system, and a fire reserve of the kind the fire-water reservoir design guide describes. One liquid per tank, labeled.

What the carrier needs from you

At 120 inches across and 145 inches long on the deck the 7140300N43 is oversize freight (NMFC 156600) on a flatbed at a lane rate; the freight cost estimator gives the flatbed number for your ZIP, and the listed price is before freight. A crane or a forklift with long forks sets 1,500 pounds on the slab. Water to the manway once, a hold, the outlet fitting checked, and the certification paperwork filed with the job. Note the pad height and the outlet height on the site plan while the tape is out; the next pipe run will need both.
