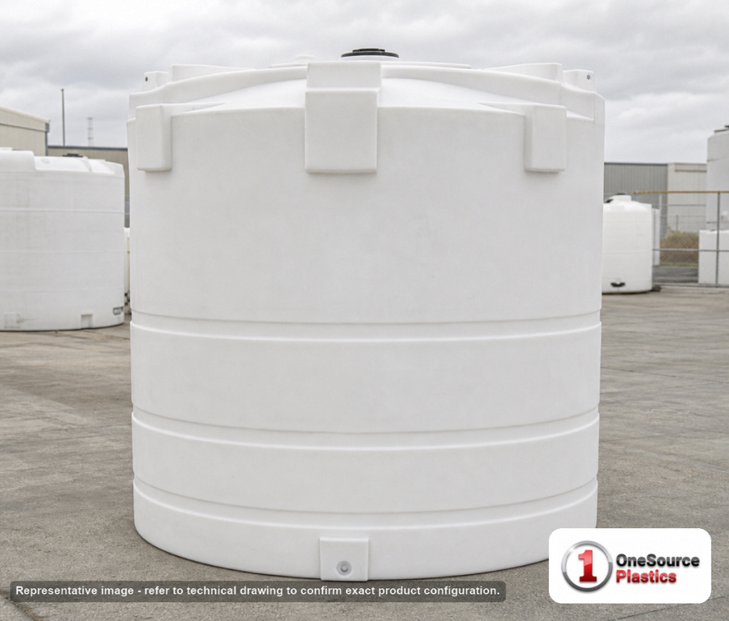

6100 Gallon Vertical Liquid Storage Tank

Where it goes

At 140 inches tall the manway is reachable from a step ladder and the tank clears most barn and shop ceilings, and at 119 inches across the pad is a ten foot circle. That balance is why this is the size we point people to when they have not yet picked a shape. It serves as a farm water reserve, as irrigation and liquid fertilizer storage, as process water in a shop, and as the reservoir in a private fire system; our fire water reservoir design guide covers that last use and the freeze protection it needs. Rainwater and reuse systems are covered in the industrial water reuse topology guide. Size the pad with the concrete pad sizing guide: full of water the tank carries 50874 lb of liquid on its floor, and the whole floor has to be supported, with no part of it hanging past the edge of the slab or the gravel. The complete buyers guide to this tank goes deeper, and the tank sizing calculator and tank sizing guide settle the volume first.

Openings and fittings

1. Outlet. A 3 inch polypropylene female NPT bulkhead fitting, factory installed low in the side wall, with a 2 inch reducer in it. Connect 2 inch as supplied, or remove the reducer for the full 3 inch port. Buy the valve to match the choice you make. Support the valve and the first run of pipe on their own so the fitting carries liquid, not weight.
2. Manway. A 16 inch threaded vented manway on top: the fill point, the vent and the way in for cleaning or a float switch.
3. Drawing. Norwesco's drawing for this tank is linked under Technical Drawing on this page and gives the outlet height and manway position for your pipe layout.
4. Liquid. Water and most liquid fertilizers sit inside the 1.5 specific gravity rating. For heavier liquids Norwesco makes a 1.9 rated version of this shell; tell us what is going in and we will point you to the right one.

Sizes nearby

Same shell in black, which keeps light and algae out of stored water: the 6100 gallon black vertical tank 40764. Same shell rated for heavier liquids: the 6100 gallon blue vertical tank 40661 and the 6100 gallon black heavy duty vertical tank 40918. A hundred gallons less on a narrower, much taller shell: the 6000 gallon black vertical tank 40769. One size up on the same ten foot footprint, a little taller: the 6500 gallon black vertical tank 40224B.

Shipping and receiving

The tank ships as oversize freight (Norwesco's freight class is OVS) from the nearest of Norwesco's Griffin, Georgia, Lancaster, Ohio, Owego, New York and Washougal, Washington plants, 119 by 119 by 140 inches and 1287 lb on the truck. It travels on an open trailer, so plan on a forklift, a loader with forks or a crew with straps, and a clear path to the pad. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the tailgate, check the part number against 40659 on the bill of lading, look over the shell for transit damage before you sign, and fill it with water the first time before it carries anything else.

Questions before you order? Call 866-418-1777.
