10,500 gallons of chemical storage with a 1.35 wall

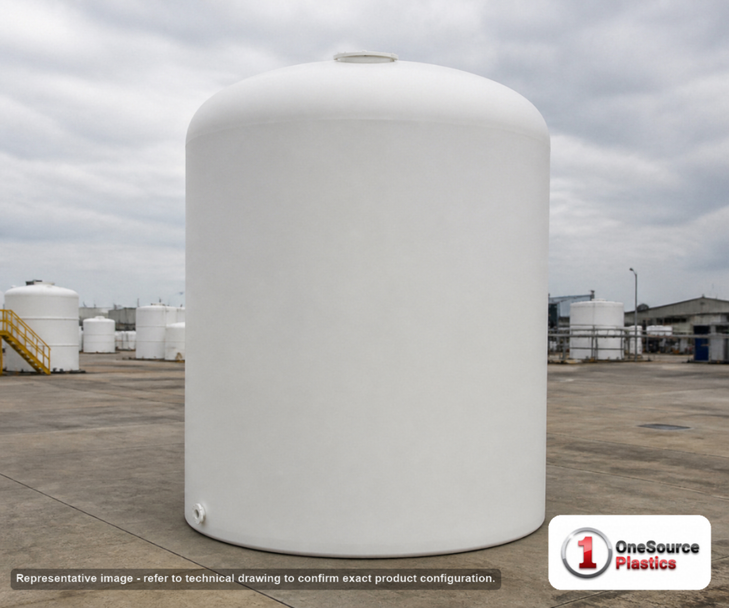

The Snyder 5330000N39 is a white high density linear polyethylene vertical chemical storage tank, 142 inches in diameter and 169 inches tall, holding 10,500 gallons at 2,500 pounds empty. Its wall is rated for a specific gravity of 1.35, or 122,598 pounds of contents against 87,570 for water: the light chemical wall, for brine, fertilizer solutions and the treatment chemicals that sit up to a third again as dense as water, at the scale of a full tanker load. An 18 inch threaded, vented manway on top, and a 3 year warranty. A tank this size is a piece of civil engineering, and the notes below are for the engineer specifying it.
Buying for a site, a fleet or a district? Request a written quote with freight to your ZIP, or add it to your cart above and call 866-418-1777 with any question on the fit.
The foundation and the checks
At its rating this tank loads a 142 inch circle to 122,598 pounds; with water alone it is 87,570. Either is a reinforced slab designed for the site's soil, level enough that a fourteen foot shell stands plumb, with the empty tank anchored against wind before the first fill. Three checks come before the order: the density of the liquid at delivered concentration against the 1.35 rating, the resin against the chemical in the chemical compatibility database, since the list below is the resin's rated chemistry and resistance is a separate property from weight, and the volume against feed rate and delivery interval in the tank sizing calculator, with the reserve the tank sizing guide describes.
Walls on the 142 inch base
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|
| 5330000N39 (this tank, 1.35 SG) | 10,500 | 142 x 169 in | 2,500 lb |
| 5330000C34 | 10,500 | 142 x 169 in | 2,250 lb |
| 5330000N29 | 10,500 | 142 x 169 in | 2,500 lb |
| 32026 | 10,000 | 142 x 167 in | 2,170 lb |
| 32074 (1.5 SG) | 12,000 | 142 x 197 in | 2,482 lb |
The 5330000C34 is the same shell with 250 fewer pounds of resin, and the N29 matches this tank's weight in another resin grade. The 32026 is the 10,000 gallon tank 2 inches shorter, and the 32074 adds 1,500 gallons at 197 inches with a 1.5 rating. Match the wall to the liquid's density and the years the tank will stand in the sun.
Need a different size? Every tank in the table is in stock programs; ask for a quote on the one that fits, or call 866-418-1777.
Openings, instruments, samples, labels
- Access: 18 inch threaded, vented manway, 169 inches up; vent outside on caustic and acid service, fill through a dip tube to the floor, and size the vent for a tanker's unload rate.
- Outlet: specify the fitting for the chemical when ordering; a flanged transition, an expansion joint, and a valve supported off the slab.
- Service limit: 120 F / 48 C.
Choose the level sender for the chemical with the level gauge selection guide; at 169 inches a hydrostatic sender at the outlet keeps operators off the ladder. Sample it as the bulk tank chemical sampling protocol describes, because a fourteen foot column of coagulant stratifies and a top sample lies. Label it for the fire inspector and the workplace inspector at once, per the tank label and signage compliance guide. And size the containment before the tank: a berm around a 142 inch tank is a large one, and the Snyder Captor 110 percent containment comparison shows where a double wall tank is the smaller and cheaper footprint.
Where you will find one
Liquid fertilizer and brine at a co-op that takes full tanker loads, dilute coagulants and caustics at a treatment plant, and bulk water where a thick wall is wanted for a long outdoor life. Receiving a tanker into a tank this size has its own discipline: the fill pipe runs to the floor so the liquid does not free-fall and foam, the vent breathes at the unload rate, and the first delivery is watched from start to finish with the slab edge and the outlet under watch.
Shipping the tank
At 142 inches across and 169 inches long on the deck the 5330000N39 is oversize freight (NMFC 156600) on a flatbed at a lane rate; the freight cost estimator prices the lane to your ZIP, and the listed price is before freight. Book a crane for 2,500 pounds, have the slab cured and surveyed, and plan a staged water fill with a hold at each stage before any chemical is ordered. Walk the base after the first hard rain; a pad that shifts shows it at the edge first.
Liquids this resin is rated to store
These entries are the manufacturer's ratings for this resin, each with the concentration limit and the fitting and gasket to specify. Your concentration and temperature are confirmed on the chemical page or in the chemical compatibility database before ordering.
- Diesel exhaust fluid (DEF)
- Urea solution
- acetic acid (PP/PVC, EPDM)
- aluminum sulfate (PVC, EPDM)
- calcium chloride (PVC, EPDM)
- ferrous sulfate (PVC, EPDM)
- magnesium chloride (PVC, EPDM)
- sodium carbonate (PVC, EPDM), and ozonated water (PVC, EPDM).
- ethylene glycol (PVC, EPDM)
- ferric chloride (PVC, EPDM)
- ferric sulfate (PVC, EPDM)
- hydrochloric acid (PVC, Viton)
- hydrofluoric acid (PP/PVC, Viton)
- hydrofluosilicic acid (PP/PVC, Viton)
- hydrogen peroxide (PVC, Viton)
- peracetic acid (316SS, Aflas)
- phosphoric acid (PVC, Viton)
- polyaluminum chloride (PVC, EPDM)
- potassium carbonate (PVC, EPDM)
- potassium hydroxide (PVC, EPDM)
- propylene glycol (PP/316SS, EPDM)
- sodium bisulfate (PVC/PP, EPDM)
- sodium bisulfite (PVC/PP, EPDM)
- sodium hypochlorite (PVC, Viton)
- sodium thiosulfate (PVC, EPDM)
- sulfuric acid (CPVC, Viton), and
- zinc orthophosphate (PP/316SS, EPDM).
Freight and documents
Ships from: Lincoln, NE; Philippi, WV. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 5330000N39.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the Snyder Industries 10500 Gallon HDPE Vertical Chemical Storage Tank in White video (81 seconds) with dimensions, fittings and shipping notes.
