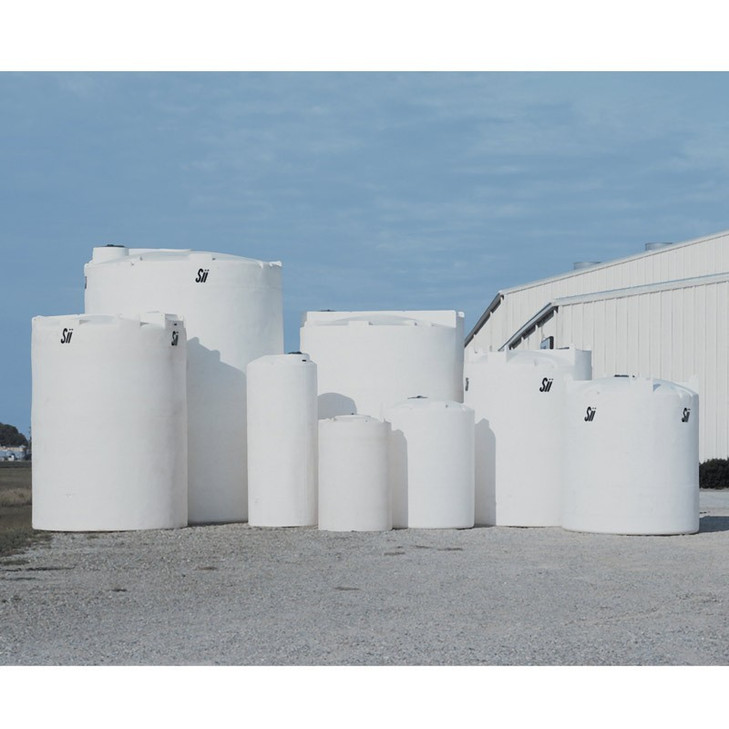

Snyder Industries 4500 Gallon HDPE Vertical Liquid Storage Tank with ASTM Certification

The heavy wall, laid low and certified

A 1.9 specific gravity wall is sized for a liquid nearly twice as dense as water, and 1,100 pounds of resin is what that takes on this wide, low shell, 200 pounds more than the certified 1.5 wall beside it. The certification is against ASTM D1998; the HDPE tank wall thickness guide explains the sizing logic and why the headspace is where a wall ages. Full, it puts 71,307 pounds on a 143 inch circle at the rating: a designed slab that touches every inch of the floor, following the concrete pad sizing guide, inside a berm sized to the tank, and the low shape puts it there without a lever arm. The tank sizing calculator sizes the tank from feed rate and delivery interval; the tank sizing guide covers the reserve.

Grades on the 143 x 91 inch tank, and the sizes beside it

The N43 and N39 are the certified 1.5 and 1.35 walls in this same shell for coagulants, brines and water that never approach this density, 200 pounds lighter; the N29 and N32 are other grades. The 5210000N45 stands this same certified 1.9 wall on a 90 inch base at 182 inches for a small pad, and the 7000500N40 holds 4,600 gallons of cross-linked resin on a 120 inch base at 116 inches.

Need two of them? Request a written quote for the pair with freight to your ZIP, or call 866-418-1777 and we will price the truck once.

Where the pipe goes

• Access: 18 inch threaded, vented manway, 91 inches up; on acid or caustic the vent goes outdoors, the fill goes down a dip tube, and the vent is sized to the tanker pump.
• Outlet: order the bulkhead fitting in the material the chemical calls for; a flanged transition, an expansion joint, and a valve supported off the slab.
• Service limit: 120 F / 48 C.
• Listing: ASTM certification.

Choose the level sender for the chemical; a low-level float switch keeps the pump from running dry, and the low shape keeps the suction flooded to the last few inches. Keep the manway closed against vapor loss, and shade the tank where the chemical is light-sensitive. Regulated chemical in a single wall tank means a berm sized to the tank around it. In a cold climate the outlet valve and the first run of pipe are insulated or drained.

Bringing in a load

A tanker unloads faster than the manway can breathe, so the vent is sized for the pump or the fill takes a dedicated top bulkhead with its own vent. A fill pipe to the floor keeps caustic or coagulant from free-falling and foaming. A dense liquid heats when water is added to it, so a batch tank is filled with water before the chemical, never after. The first tanker into a new tank is a supervised job, slab edge and outlet fitting checked as it fills, and each delivery after it is logged with its date and strength.

The work it does

Ferric and other dense coagulants at a plant with a berm and a low roof, heavy brine at plant scale, dense process chemicals delivered by tanker, and water where the buyer wants the heaviest certified wall on a low tank, including a fire reserve of the kind the fire-water reservoir design guide describes. One liquid per tank, labeled.

Freight, in plain terms

At 143 inches across the 7000400N45 is oversize freight (NMFC 156600) on a flatbed at a lane rate, often with an escort; the freight cost estimator prices the lane to your ZIP; the figure listed here is before freight. A forklift with long forks or a small crane sets 1,100 pounds on the slab. Water-fill it once to the manway, hold it, then drain and dry before the chemical connection is made, and keep the certification paperwork with the project file. Save the pallet; a tank that ever has to move again is easier to move on it.
