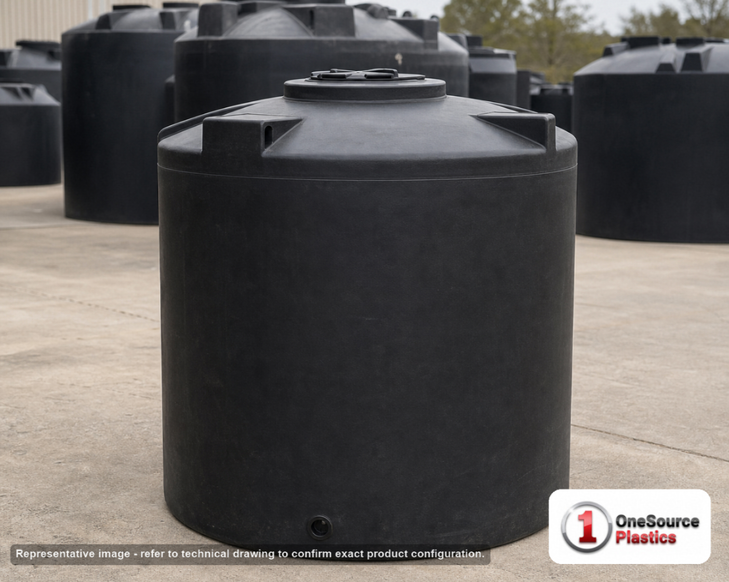

Snyder Industries 550 Gallon Plastic Vertical Chemical Storage Tank in Black

Why black, and why the heavy wall

Carbon black is the most effective ultraviolet stabilizer polyethylene has, and it is opaque, so a black tank protects both the wall and the liquid from light. That matters for hypochlorite, for peroxide, for some polymers and for any chemical that loses strength in daylight, and it matters for an outdoor tank in the sun. The heavier wall does the rest: it resists creep under a dense liquid, holds its shape through thermal cycling, and carries a valve and hard pipe at the outlet without oval-ing the fitting. The list below is the resin's rated chemistry; check the liquid at its concentration in the chemical compatibility database, because weight rating and chemical resistance are separate properties. The tank sizing calculator sizes the tank to feed rate and delivery interval, and the tank sizing guide covers the reserve to carry.

The 48 x 75 inch shell in every version

The N42 is the cross-linked polyethylene version at 110 pounds, the wall for hypochlorite and other oxidizers stored warm; the N52 is another resin option at the same weight. The two water tanks on the same base show how much of this tank's weight is chemical wall: 45 pounds more than the 32669 for 50 more gallons, and 23 pounds more than the 32441, which stacks 750 gallons at 106 inches.

Need a different size? Every tank in the table is in stock programs; ask for a quote on the one that fits, or call 866-418-1777.

Openings, instruments and labels

• Outlet: 2 inch, at the bottom of the sidewall; a PVC or CPVC adapter, a flexible transition, and a valve supported off the floor.
• Access: 18 inch manway; vent outside on anything that fumes, fill through a dip tube.
• Service limit: 120 F / 48 C.

A black wall hides the level, so plan the sender: the level gauge selection guide matches it to the chemical, and a 75 inch range is easy for any of them. Label the tank so the fire inspector and the workplace inspector read the same thing, per the tank label and signage compliance guide; a black tank needs a light label panel. For containment, a 48 inch tank fits a standard spill pallet, and the Snyder Captor 110 percent containment comparison covers when a double wall tank is the cleaner answer.

Turnover, sun and cold

Five hundred and fifty gallons is two and a half totes, filled on a schedule set by the feed rate; size the schedule so the tank turns over before the chemical degrades, and for hypochlorite that means small lots often. Black absorbs heat, so a tank in full sun warms its contents on a summer afternoon; shade it where the site allows and draw from the outlet at the base. In winter a chemical solution expands against a wall not designed for ice, so house the tank or keep it above freezing, and insulate or drain the outlet valve and the first run of pipe. When the tank changes product, drain, rinse, drain and dry before the new fill.

Applications

Hypochlorite and peroxide storage where light is the enemy, caustic and coagulant at small water and wastewater systems, acid and inhibitor feed at cooling towers, and any outdoor chemical tank at a site an inspector visits. One chemical per tank, labeled, manway closed against vapor loss.

On the truck

The 1800000C26-BLACK ships palletized as LTL freight (NMFC 156600-02) at a class rate; the freight cost estimator shows it for your ZIP, and the listed price is before freight. Two people carry 140 pounds through a door. Thread the outlet adapter, water-fill to the manway and hold it, then drain and dry before the first chemical delivery; mark the vent and the outlet on the shell so nobody caps the wrong one. Mark the vent and the outlet on the outside of the shell so nobody caps the wrong one in the dark.

Liquids this resin is rated to store

These entries are the manufacturer's ratings for this resin, each with the concentration limit and the fitting and gasket to specify. Your concentration and temperature are confirmed on the chemical page or in the chemical compatibility database before ordering.

• Acetic Acid (60%) - PP/PVC fittings, EPDM gaskets
• Aluminum Sulfate (50%) - PVC fittings, EPDM gaskets
• Calcium Chloride (40%) - PVC fittings, EPDM gaskets
• DEF (32.5%) - 316SS fittings, EPDM gaskets
• Ethylene Glycol (100%) - PVC fittings, EPDM gaskets
• Ferric Chloride (50%) - PVC fittings, EPDM gaskets
• Ferric Sulfate (60%) - PVC fittings, EPDM gaskets
• Ferrous Sulfate (20%) - PVC fittings, EPDM gaskets
• Hydrochloric Acid (37%) - PVC fittings, Viton gaskets
• Hydrofluoric Acid (48%) - PP/PVC fittings, Viton gaskets
• Hydrofluosilicic Acid (26%) - PP/PVC fittings, Viton gaskets
• Hydrogen Peroxide (50%) - PVC fittings, Viton gaskets
• Magnesium Chloride (30%) - PVC fittings, EPDM gaskets
• Peracetic Acid (30%) - 316SS fittings, Aflas gaskets
• Phosphoric Acid (85%) - PVC fittings, Viton gaskets
• Polyaluminum Chloride - PVC fittings, EPDM gaskets
• Potassium Carbonate (50%) - PVC fittings, EPDM gaskets
• Potassium Hydroxide (saturated) - PVC fittings, EPDM gaskets
• Propylene Glycol - PP/316SS fittings, EPDM gaskets
• Sodium Bisulfate - PVC/PP fittings, EPDM gaskets
• Sodium Bisulfite - PVC/PP fittings, EPDM gaskets
• Sodium Carbonate (30%) - PVC fittings, EPDM gaskets
• Sodium Hypochlorite (under 16.5%) - PVC fittings, Viton gaskets
• Sodium Thiosulfate (40%) - PVC fittings, EPDM gaskets
• Sulfuric Acid (98%) - CPVC fittings, Viton gaskets
• Urea Solution (50%) - PP/PVC fittings, EPDM gaskets
• Zinc Orthophosphate - PP/316SS fittings, EPDM gaskets
