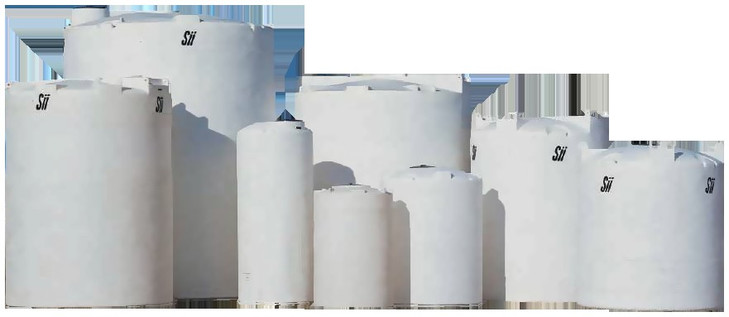

Snyder Industries 750 Gallon HDLPE Vertical Double Wall Liquid Chemical Storage Tank with ASTM Certification

Certified containment at three-tote scale

Seven hundred fifty gallons is three totes with a margin, or a small delivery truck's load, and this shape holds it at 66 inches. The second wall catches what the first one lets go, so there is no spill pallet and no berm to build; the SPCC 40 CFR 112 compliance walkthrough covers where a double wall tank satisfies a spill plan on its own, and the Captor double wall freeboard sizing guide works out how much of the nominal 750 gallons is usable once thermal expansion and the interstice are accounted for. The certification is against ASTM D1998; the HDPE tank wall thickness guide explains the sizing logic and why the headspace is inspected. The chemistry list below is what the resin is rated for; check the liquid at its concentration in the chemical compatibility database. The tank sizing calculator sizes the tank to feed rate and delivery interval, and the tank sizing guide covers the reserve.

Grades on the 73 inch double wall, and the sizes beside it

The N30 is the sulfuric acid grade, the N42 is cross-linked polyethylene for oxidizers, and the N48 is another linear grade, all at the same weight and an inch taller on the sheet. The 5040000N30 is the 550 gallon sulfuric-grade double wall on a base 3 inches wider, and the 5990102N30 is the 1,000 gallon step up at 69 inches on an 81 inch base, the same low idea a size larger. The 1700200N45 is the certified single wall at 710 gallons for a site that already has a spill pallet.

Neighboring size a better fit? Every row links to its own page; freight to your ZIP is quoted on each, or call 866-418-1777.

Fittings, alarms and the space between the walls

• Access: 18 inch threaded, vented manway on the primary, a short step up; fill by hose or tote pump down a dip tube, and vent to the outside if the liquid fumes.
• Outlet: through both walls together, with the transition supported off the floor; the fitting material is chosen for the chemical at order time.
• Service limit: 120 F / 48 C.
• Listing: ASTM certification.

Two levels to watch: the primary, with a sender chosen for the chemical per the level gauge selection guide, and the interstitial space, which is the leak alarm and gets a float switch, a look into the port each shift, and a logged check each week. If the space is ever wet, the primary is leaking and the tank comes out of service the same day. A low, wide tank cannot tip and needs no strap; full, it puts 11,884 pounds on a 73 inch circle at the rating, which a slab in full contact carries. Mount the dosing pump below the outlet so it primes by gravity, and size the vent for a delivery truck's pump if the tank is filled from one.

What it holds in practice

Coagulant, caustic and hypochlorite storage inside occupied buildings with a low ceiling, brine for a softener bank, acid and inhibitor feed at cooling towers, and any three-tote chemical tank at a site an inspector visits and the certification has to be on file. Label it, keep one chemical in it, and keep the manway shut against vapor loss.

Chemical service ratings

The resin is rated for the liquids below at the concentrations shown; the fitting and gasket called out are the ones to order with the tank. Verify the exact service on the linked page or in the chemical compatibility database before ordering.

• acetic acid (60%, PP/PVC fittings, EPDM gaskets)
• aluminum sulfate (50%, PVC, EPDM)
• calcium chloride (40%, PVC, EPDM)
• DEF (32.5%, 316SS, EPDM)
• ethylene glycol (100%, PVC, EPDM)
• ferric chloride (50%, PVC, EPDM)
• ferric sulfate (60%, PVC, EPDM)
• ferrous sulfate (20%, PVC, EPDM)
• hydrochloric acid (37%, PVC, Viton)
• hydrofluoric acid (48%, PP/PVC, Viton)
• hydrofluosilicic acid (26%, PP/PVC, Viton)
• hydrogen peroxide (50%, PVC, Viton)
• magnesium chloride (30%, PVC, EPDM)
• peracetic acid (30%, 316SS, Aflas)
• phosphoric acid (85%, PVC, Viton)
• polyaluminum chloride (PVC, EPDM)
• potassium carbonate (50%, PVC, EPDM)
• potassium hydroxide (saturated, PVC, EPDM)
• propylene glycol (PP/316SS, EPDM)
• sodium bisulfate (PVC/PP, EPDM)
• sodium bisulfite (PVC/PP, EPDM)
• sodium carbonate (30%, PVC, EPDM)
• sodium hypochlorite (under 16.5%, PVC, Viton)
• sodium thiosulfate (40%, PVC, EPDM)
• sulfuric acid (98%, CPVC, Viton)
• urea solution (50%, PP/PVC, EPDM)
• zinc orthophosphate (PP/316SS, EPDM), and ozonated water (up to 10 PPM, PVC, EPDM). Most of these run on EPDM gaskets, but seven need Viton, which are hydrochl

Getting it to the pad

The 5990902N45 ships palletized as LTL freight (NMFC 156600-02) at a class rate; the freight cost estimator turns your ZIP into a freight number; the price on this page is before freight. A forklift or a pallet jack moves 390 pounds; at 73 inches across it needs a wide door. Water-test the primary, confirm the interstice stays dry through the hold, then drain and dry before the first chemical fill, and keep the certification paperwork with the project file. Once it is full and holding, leave it alone for a day before the plumbing goes on; a settled tank is a quiet one.
